Dynacord PM 502 Specifications

METER METER METER
LCD
128 x 64
USB-A USB-B
LO MID HI LO MID HI
DC/DC
MIC CHANNELS STEREO CHANNELS
STEREO 1
& STEREO 2
VOLUME VOLUME
FX
FX
AUX AUX
MIC
MIC-FX
MIC-AUX
ST-L
ST-R
ST-FX
AUX
for 5 MIC channels
PHANTOM
L L R
R
USB
AUDIO
INTERFACE
USB
AUDIO
CPU
SMPS
5V
CD 1/2
3V3
FX SWITCH
2V4
FUSE
T10A
L250V
L
N
PE
+16V -16V 3V3
+RAIL
-RAIL
MUTE
MIC MIC-FX ST-FX ST-L ST-R
AUX
LO-CUT
COMPRESSOR
TALK
OVER
STEREO
EFFECTS
PROCESSOR
FX
FX to AUX
PHONES
PHONES
MASTER A
STEREO/
MONO
MASTER B
AUX
DELAY
PRE
POST A
AUX
LIMITER LIMITER LIMITER
MASTER A
MASTER B
L L R R
AUX OUT
LO-CUT LPN LIMITER
PROTECT
ROUTING
+
-
CH1 CH2
MUTE
AMP PROTECTAMP LIMITSPEAKER PROC.
DIRECT DRIVE
+ +
- -
-20dB
LO HI
GAIN GAIN
SUM-L SUM-R
MASTER
GRAPHIC
EQUALIZER
GRAPHIC
EQUALIZER
GRAPHIC
EQUALIZER
POWER AMPLIFIER
STEREO/
MONO
MIC
5V 0.5A max
AUX
MASTER B MASTER A
FX
STEREO 3
L/MONO R
PARAMETER
ENTER
+48V
+48V
USER INTERFACE
L
R
+/-16V
MIC FX MASTER POWER AMPLIFIER SMPS
COMPRESSOR
TALK OVER
R L
PRE
CH1 CH2
LINK LINK
PKFX ON
POST A
PK PK
CH1 CH2
PLAYER
AUDIO PLAYER
EQUALIZER EQUALIZER
3 BAND 3 BAND

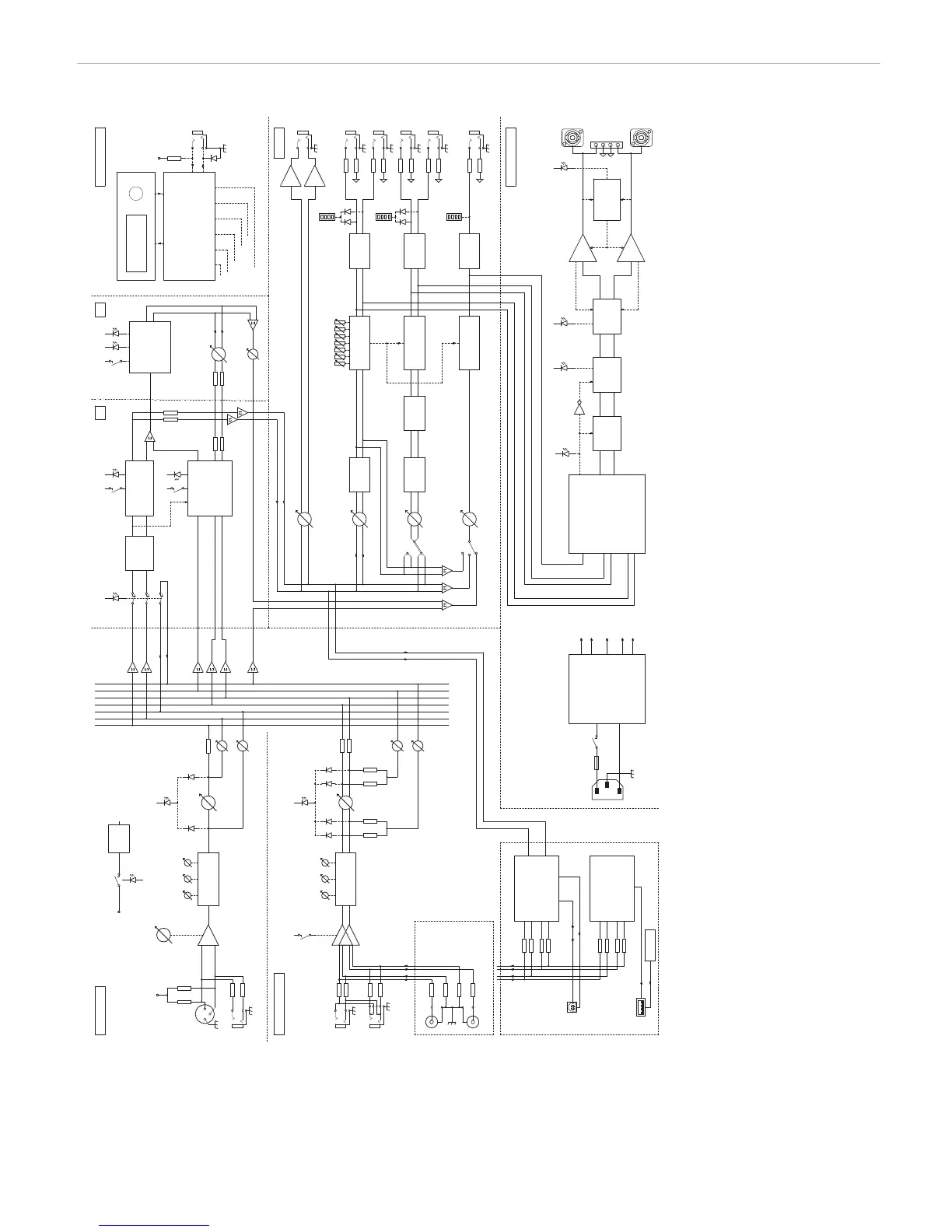

Circuit diagram
5
| PM 502

Dynacord PM 502 Specifications

General

Type	Stand mixer
Product color	Black
DJ mixer	-
USB port	Yes
Rack capacity	7U
Video capability	No
USB connector type	USB Type-B
Sample rate	48 kHz
Amplifier class	D
Frequency range	15 - 22000 Hz
Channels quantity	8 channels
Amplifier output power	1200 W
Supported sample rates	32, 44.1, 48 kHz
Digital sound processing	48 bit
Audio A/D Converter (ADC)	16-bit, delta-sigma
Equalizer bands quantity	7
Master (XLR) out	1
Line inputs (RCA)	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of microphone inputs	5
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	180 W

Weight and Dimensions

Depth	241 mm
Width	395 mm
Height	244 mm
Weight	4900 g
Package weight	6400 g
