Dynacord PROMATRIX System User Manual

DEVICE DESCRIPTIONS
PROMATRIX System User Handbook 1.1
5-26
5.1.11 8 I/O Control Module (NRS 90219)
This control module provides 8 floating control inputs and
7 floating logic level outputs (0 V, 24 V). An additional
output provides pole change impulses for controlling
slave system clocks. Contact is established via 4 x RJ-45
sockets providing 8 contacts each. The module can be
installed in slot 5.
The slave clock output (NU, OUT 1) is short-circuit proof;
up to approximately 40 slave clocks can be connected.
Please make sure to connect all slave clocks according to
their correct polarity.
The control outputs (OUT 2 - 8) are capable of switching
voltages of either polarity and up to a maximum current of
1 A.
The control inputs (IN 1 - 8) are capable of handling
voltages of either polarity between -31 V and +31 V; for
voltages between 0 and 5 V the inputs are not active
(low), for voltages between 10 V and 31 V the inputs are
active (high). The control inputs can ignite switching
functions or macros either during a change of state or in
any stationary state. This offers the possibility to monitor
line idling currents (e. g. in fire alert system installations).

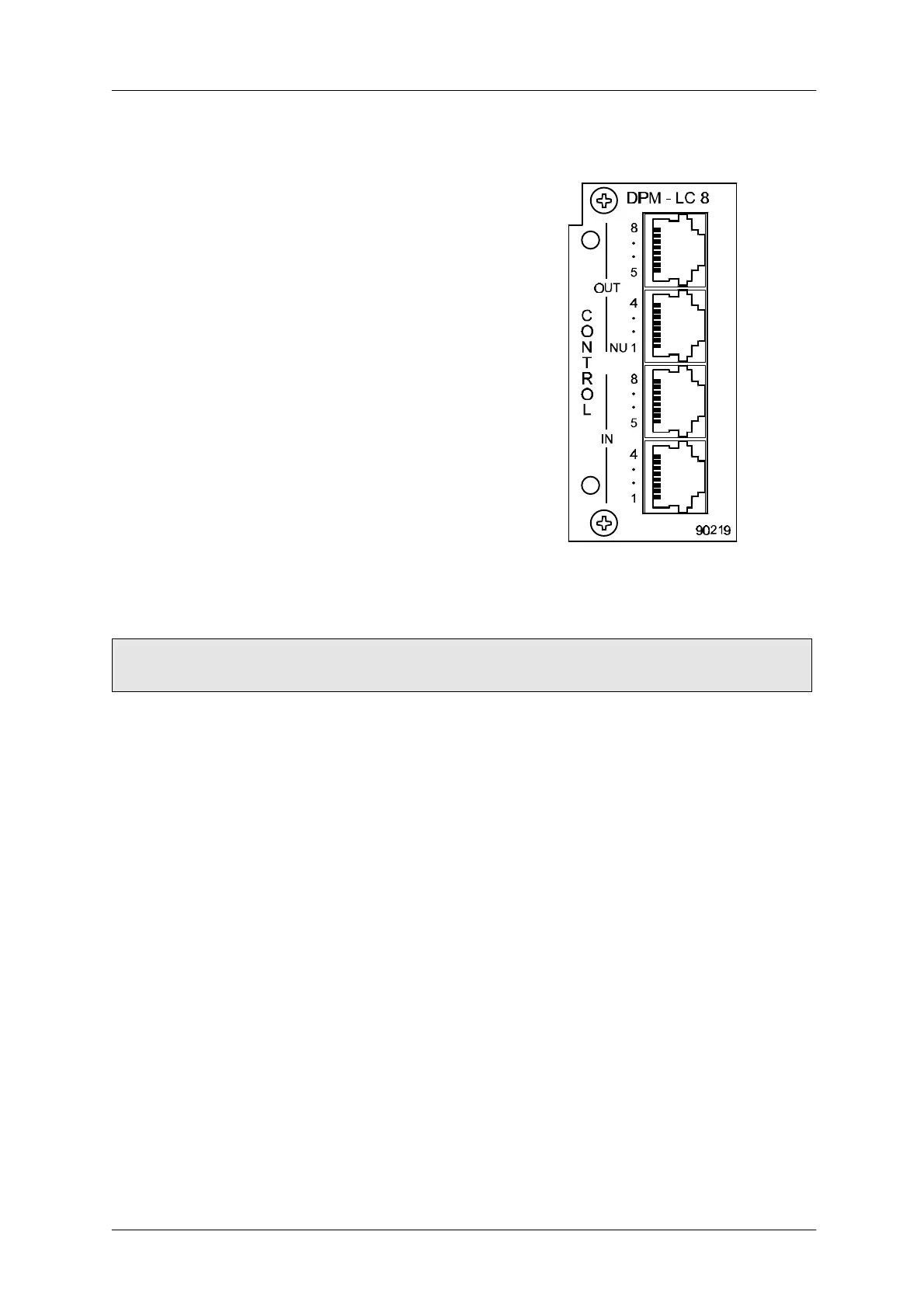

figure 5.31 8 I/O control module
Note: The opto-coupler inputs are primarily meant to prevent noise loops that can result from dropping
voltages in long distance cabling. They are not suitable for separating networks from each other.
Therefore, only floating sources should be connected.
Specifications:
description DPM-LC8 8 I/O control module, NRS 90219
connections 4 x RJ-45 sockets
logic inputs 8, floating via opto-coupler, bi-polar
voltage when the input is LOW UIN < ± 5 V
voltage when the input is HIGH UIN > ± 10 V
maximum input voltage UIN max = ± 31 V
logic outputs 7, floating via relay contacts
contact capacity 1 A / 24 V DC
slave clock output pole change impulse / turning impulse
output voltage 24 V DC
maximum output current 500 mA, electronically protected against overload
power consumption 3.2 W (12 W with the maximum amount of slave clocks connected)
operational temperature range +5 °C ... +40 °C
dimensions W x H x D 37.5 x 81 x 247 mm
weight 195 g
