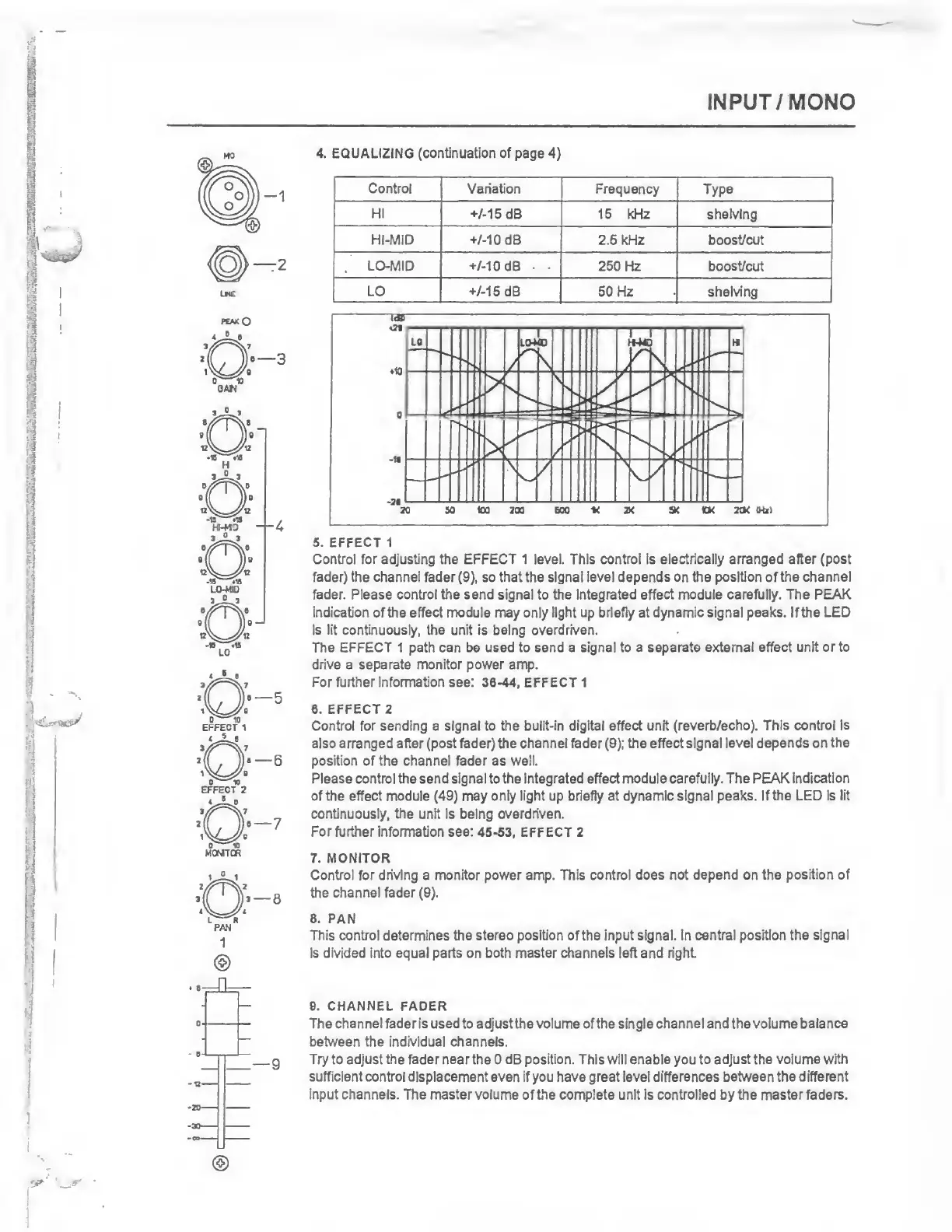

INPUT/MONO
4.
EQUALIZING
(continuation
of
page
4)
Control
Variation
Frequency
Type
HI
+/-15
dB
15
kHz
shelving
HI-MID
+/-10
dB
2.6
kHz
boost/cut
LO-MID
+/-10
dB
250
Hz
boost/cut
LO
+/-15
dB
50
Hz
shelving
PEA*
O
•—5
•—7
5.
EFFECT
1
Control
for
adjusting
the
EFFECT
1
level.
This
control
is
electrically
arranged
after
(post
fader)
the
channel
fader
(9),
so
that
the
signal
level
depends
on
the
position
of
the
channel
fader.
Please
control
the
send
signal
to
the
integrated
effect
module
carefully.
The
PEAK
indication
of
the
effect
module
may
only
light
up
briefly
at
dynamic
signal
peaks.
If
the
LED
is
lit
continuously,
the
unit
is
being
overdriven.
The
EFFECT
1
path
can
be
used
to
send
a
signal
to
a
separate
external
effect
unit
or
to
drive
a
separate
monitor
power
amp.
For
further
information
see:
30-44,
EFFECT
1
0.
EFFECT
2
Control
for
sending
a
signal
to
the
built-in
digital
effect
unit
(reverb/echo).
This
control
is
also
arranged
after
(post
fader)
the
channel
fader
(9);
the
effect
signal
level
depends
on
the
position
of
the
channel
fader
as
well.
Please
control
the
send
signal
to
the
integrated
effect
module
carefully.
The
PEAK
indication
of
the
effect
module
(49)
may
only
light
up
briefly
at
dynamic
signal
peaks.
If
the
LED
is
lit
continuously,
the
unit
is
being
overdriven.
For
further
information
see:
45-53,
EFFECT
2
7.
MONITOR
Control
for
driving
a
monitor
power
amp.
This
control
does
not
depend
on
the
position
of
the
channel
fader
(9).
8.
PAN
This
control
determines
the
stereo
position
of
the
input
signal.
In
central
position
the
signal
is
divided
into
equal
parts
on
both
master
channels
left
and
right
9.
CHANNEL
FADER
The
channel
fader
is
used
to
adjust
the
volume
of
the
single
channel
and
the
volume
balance
between
the
individual
channels.
Try
to
adjust
the
fader
near
the
0
dB
position.
This
will
enable
you
to
adjust
the
volume
with
sufficient
control
displacement
even
if
you
have
great
level
differences
between
the
different
input
channels.
The
master
volume
of
the
complete
unit
is
controlled
by
the
master
faders.
