1. MODULE SLOTS
The module slots in the front panel of the power amplifier are meant for the insertion of signal processor
or filter modules. Before inserting a module, loosen the tightening screw of the corresponding blind panel,
so that it can be removed.
Caution: Whenever blind panels are removed or modules are inserted or exchanged, disconnecting
the mains plug is absolutely mandatory.
The front module is simply inserted into the slot and locked in place. The functions of signal processing
modules are automatically accessible in the power amplifier’s corresponding signal path.
The internal Audio-BUS structure ensures that the Adoption is performed without electrical interruption of
the signal path. If no module is inserted, the X-Amp functions as “normal” linear frequency response power
amplifier.

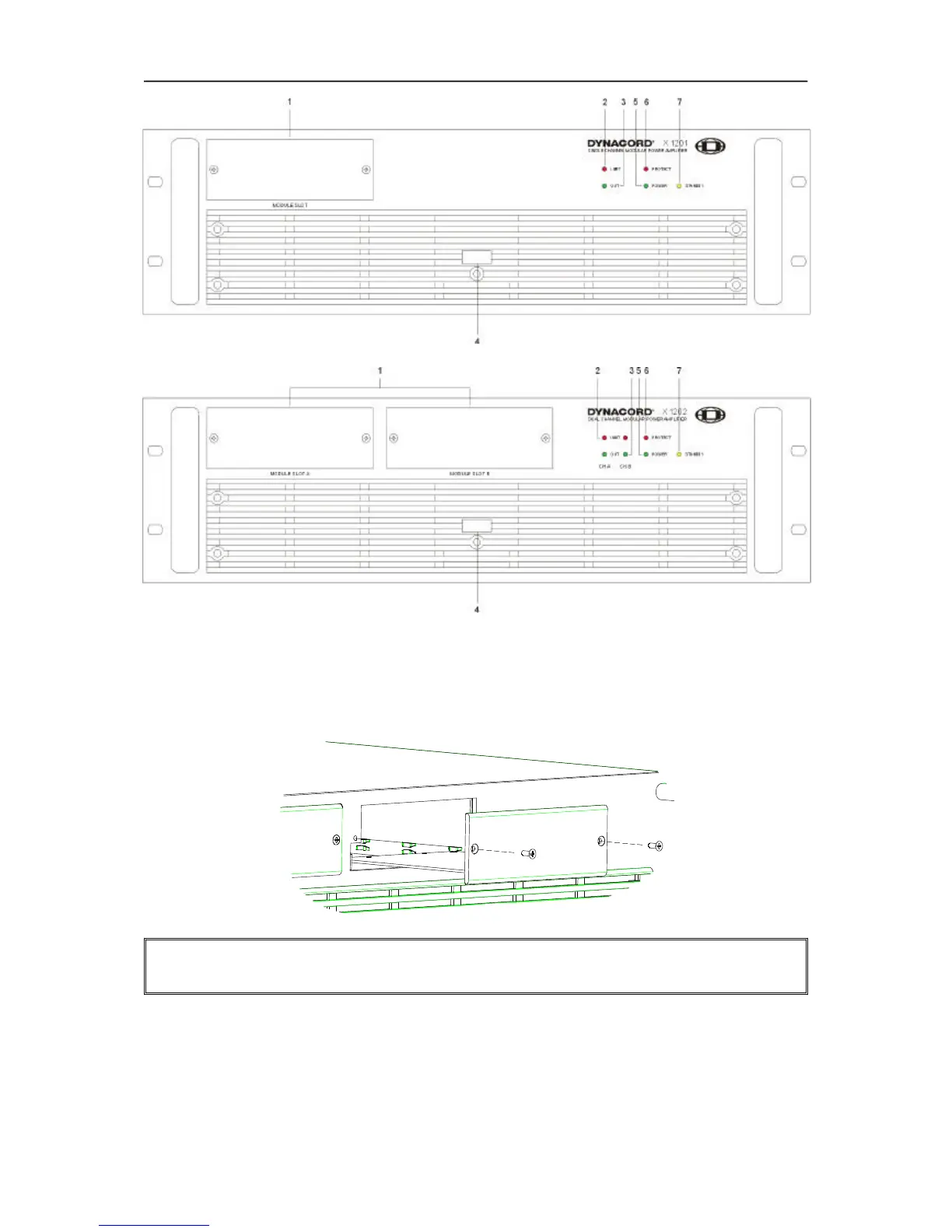

FRONT VIEW
