Dynacraft Realtree User Manual

14

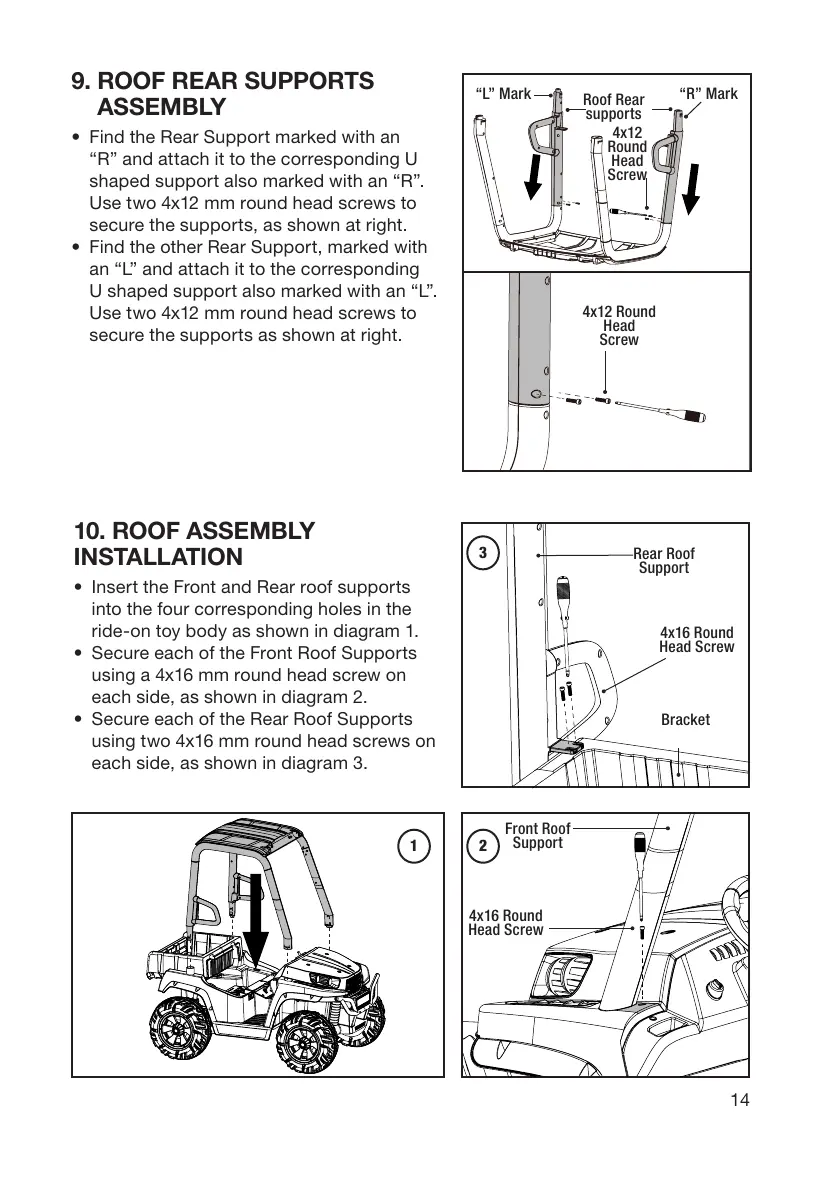

9. ROOF REAR SUPPORTS
ASS EMBLY
• Find the Rear Support marked with an
“R” and attach it to the corresponding U
shaped support also marked with an “R”.
Use two 4x12 mm round head screws to
secure the supports, as shown at right.
• Find the other Rear Support, marked with
an “L” and attach it to the corresponding
U shaped support also marked with an “L”.
Use two 4x12 mm round head screws to
secure the supports as shown at right.
4x12
Round
Head
Screw
4x12 Round
Head
Screw
Roof Rear
supports
“R” Mark
“L” M ar k
10. ROOF ASSEMBLY
INSTALLATION
• Insert the Front and Rear roof supports
into the four corresponding holes in the
ride-on toy body as shown in diagram 1.
• Secure each of the Front Roof Supports
using a 4x16 mm round head screw on
each side, as shown in diagram 2.
• Secure each of the Rear Roof Supports
using two 4x16 mm round head screws on
each side, as shown in diagram 3.
4x16 Round
Head Screw
Rear Roof
Support
Bracket
4x16 Round
Head Screw
Front Roof
Support
1 2
3

Dynacraft Realtree Specifications

General

Brand	Dynacraft
Model	Realtree
Category	Motorized Toy Car
Charging Time	8-12 hours
Battery	12V
Features	Working headlights, horn, and MP3 player connection
Recommended Age	3+
Color	Camo
Material	Plastic
