Dynacraft Realtree User Manual

22

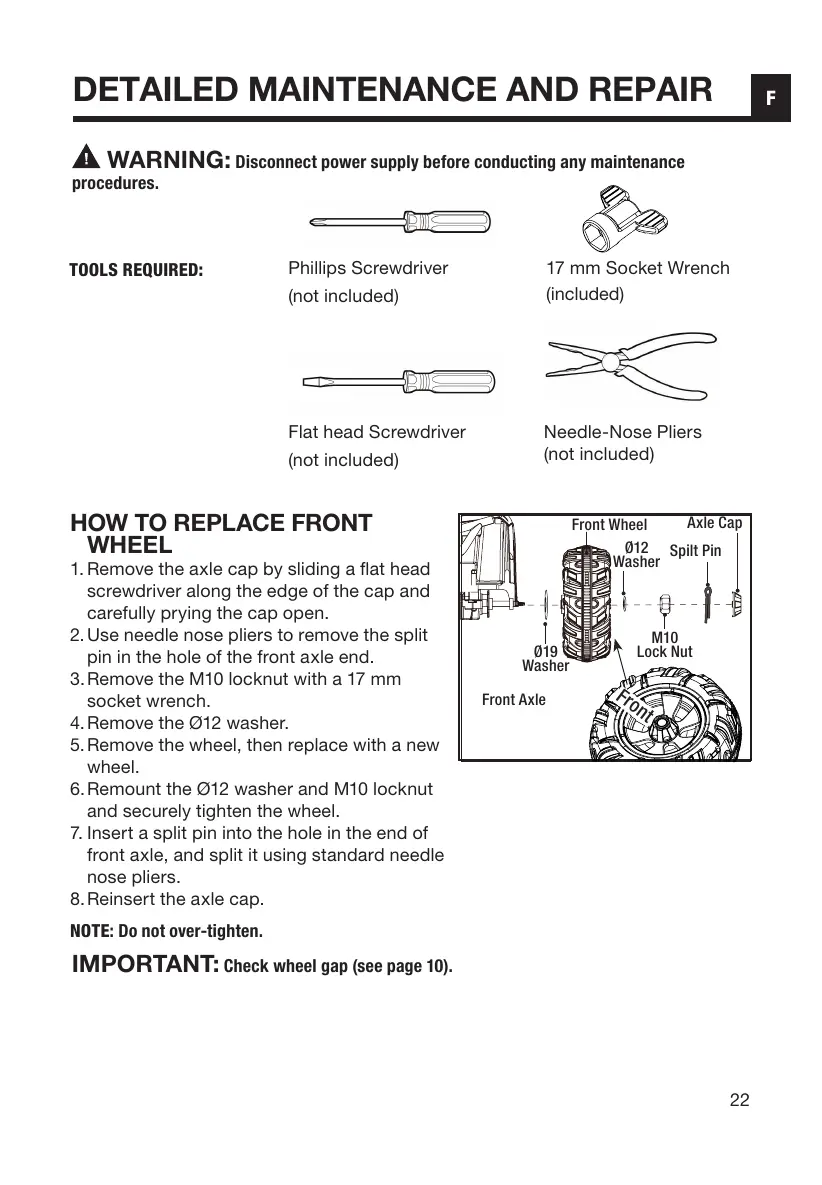

HOW TO REPLACE FRONT
WHEEL
1. Remove the axle cap by sliding a flat head
screwdriver along the edge of the cap and
carefully prying the cap open.
2. Use needle nose pliers to remove the split
pin in the hole of the front axle end.
3. Remove the M10 locknut with a 17 mm
socket wrench.
4. Remove the Ø12 washer.
5. Remove the wheel, then replace with a new
wheel.
6. Remount the Ø12 washer and M10 locknut
and securely tighten the wheel.
7. Insert a split pin into the hole in the end of
front axle, and split it using standard needle
nose pliers.
8. Reinsert the axle cap.
NOTE: Do not over-tighten.
TOOLS REQUIRED:
Phillips Screwdriver
(not included)
Flat head Screwdriver
(not included)
17 mm Socket Wrench
(included)
DETAILED MAINTENANCE AND REPAIR
F
Needle-Nose Pliers
(not included)
Front Axle
Front Wheel
Ø12
Washer
Ø19
Washer
Spilt Pin
M10
Lock Nut
Axle Cap
Front
IMPORTANT: Check wheel gap (see page 10).
WARNING: Disconnect power supply before conducting any maintenance
procedures.
