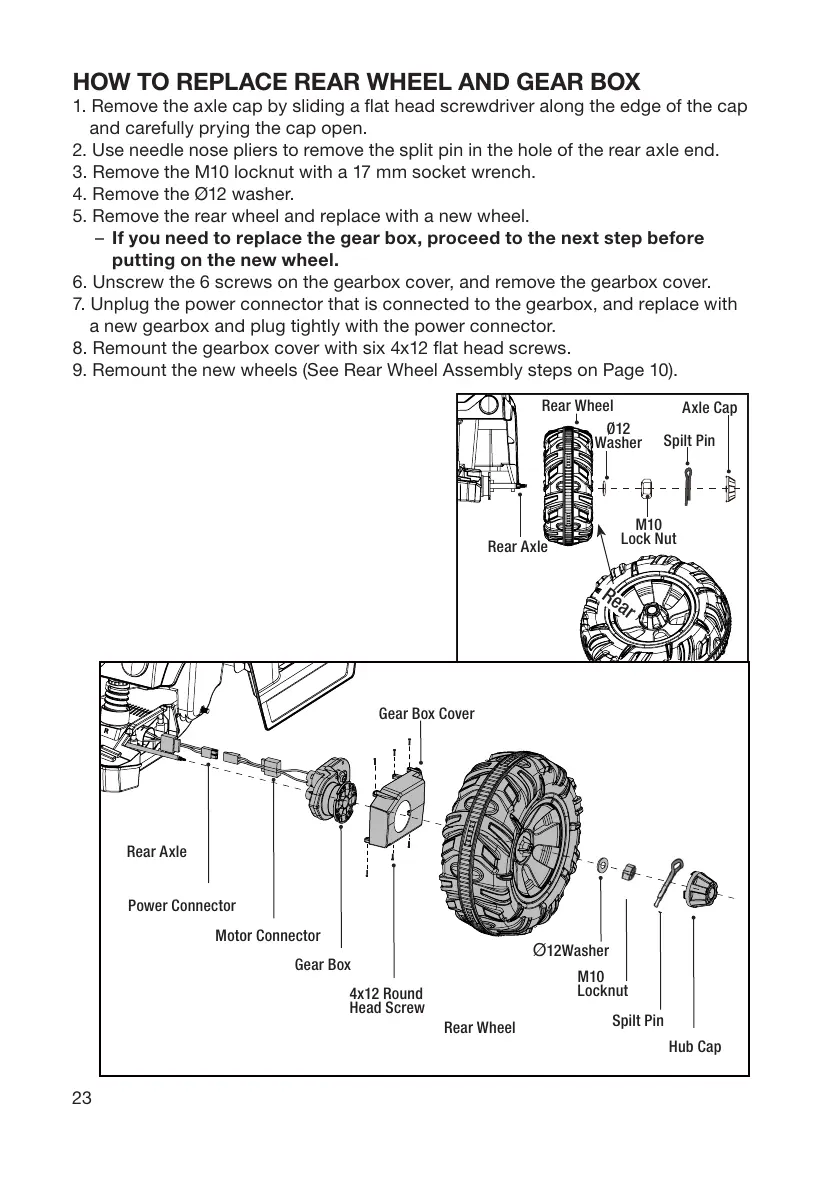

HOW TO REPLACE REAR WHEEL AND GEAR BOX
1. Remove the axle cap by sliding a flat head screwdriver along the edge of the cap
and carefully prying the cap open.
2. Use needle nose pliers to remove the split pin in the hole of the rear axle end.
3. Remove the M10 locknut with a 17 mm socket wrench.
4. Remove the Ø12 washer.
5. Remove the rear wheel and replace with a new wheel.
– If you need to replace the gear box, proceed to the next step before
putting on the new wheel.
6. Unscrew the 6 screws on the gearbox cover, and remove the gearbox cover.
7. Unplug the power connector that is connected to the gearbox, and replace with
a new gearbox and plug tightly with the power connector.
8. Remount the gearbox cover with six 4x12 flat head screws.
9. Remount the new wheels (See Rear Wheel Assembly steps on Page 10).
Power Connector
4x12 Round
Head Screw
Ø12Washer
Motor Connector
Gear Box
Rear Wheel
M10
Locknut
Hub Cap
Gear Box Cover
Spilt Pin
Rear Axle
Rear Wheel
Ø12
Washer
Axle Cap
M10
Lock Nut
Spilt Pin
Rear
Rear Axle

Dynacraft Realtree Specifications

General

Brand	Dynacraft
Model	Realtree
Category	Motorized Toy Car
Charging Time	8-12 hours
Battery	12V
Features	Working headlights, horn, and MP3 player connection
Recommended Age	3+
Color	Camo
Material	Plastic
