Dynacraft Realtree User Manual

24

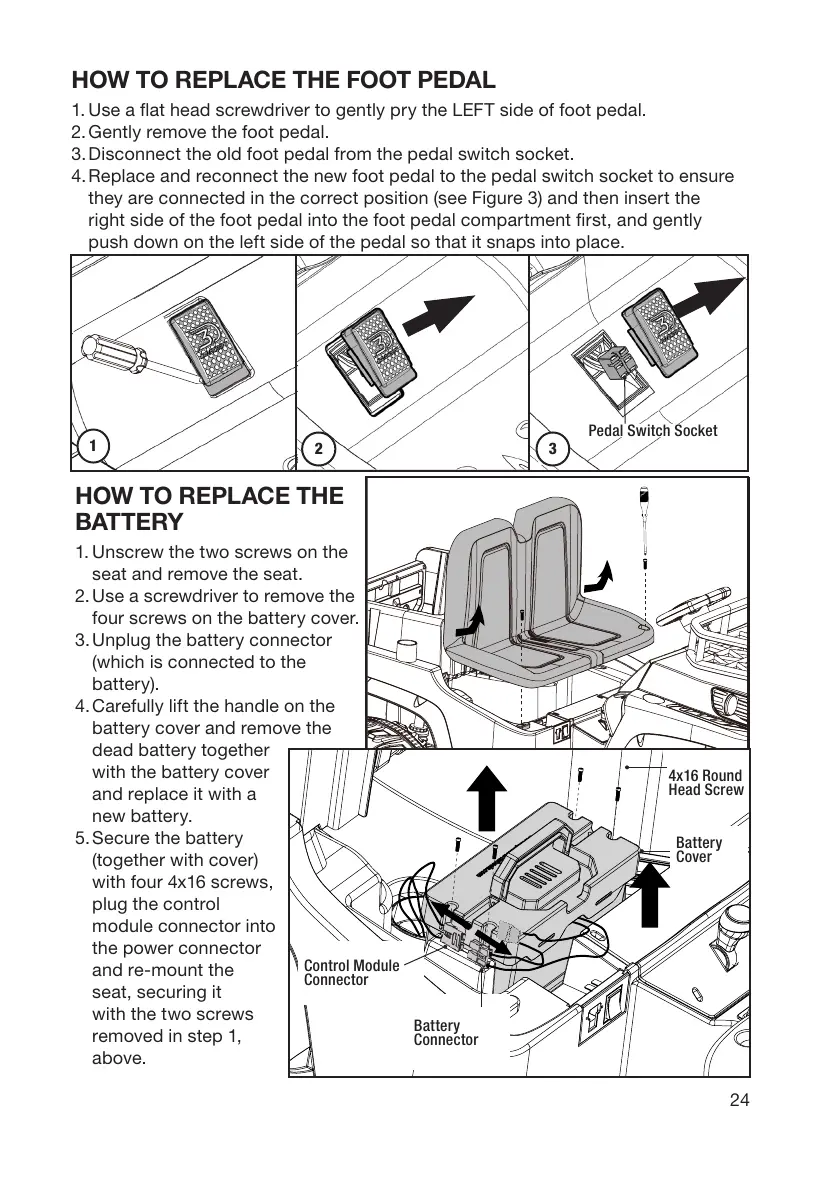

HOW TO REPLACE THE
BATTERY
1. Unscrew the two screws on the
seat and remove the seat.
2. Use a screwdriver to remove the
four screws on the battery cover.
3. Unplug the battery connector
(which is connected to the
battery).
4. Carefully lift the handle on the
battery cover and remove the
dead battery together
with the battery cover
and replace it with a
new battery.
5. Secure the battery
(together with cover)
with four 4x16 screws,
plug the control
module connector into
the power connector
and re-mount the
seat, securing it
with the two screws
removed in step 1,
above.
Battery
connector
2 3
Pedal Switch Socket
HOW TO REPLACE THE FOOT PEDAL
1. Use a flat head screwdriver to gently pry the LEFT side of foot pedal.
2. Gently remove the foot pedal.
3. Disconnect the old foot pedal from the pedal switch socket.
4. Replace and reconnect the new foot pedal to the pedal switch socket to ensure
they are connected in the correct position (see Figure 3) and then insert the
right side of the foot pedal into the foot pedal compartment first, and gently
push down on the left side of the pedal so that it snaps into place.
Control Module
Connector
Battery
Connector
4x16 Round
Head Screw
Battery
Cover
1
