DynaLock 3101C - Optional Set-Up

Page 10
3101C Gen II MANUAL
11/17
INSTALLATION INSTRUCTIONS
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
3101C
DELAYED
EGRESS LOCK
(GENERATION II)
OPTIONAL SET-UP

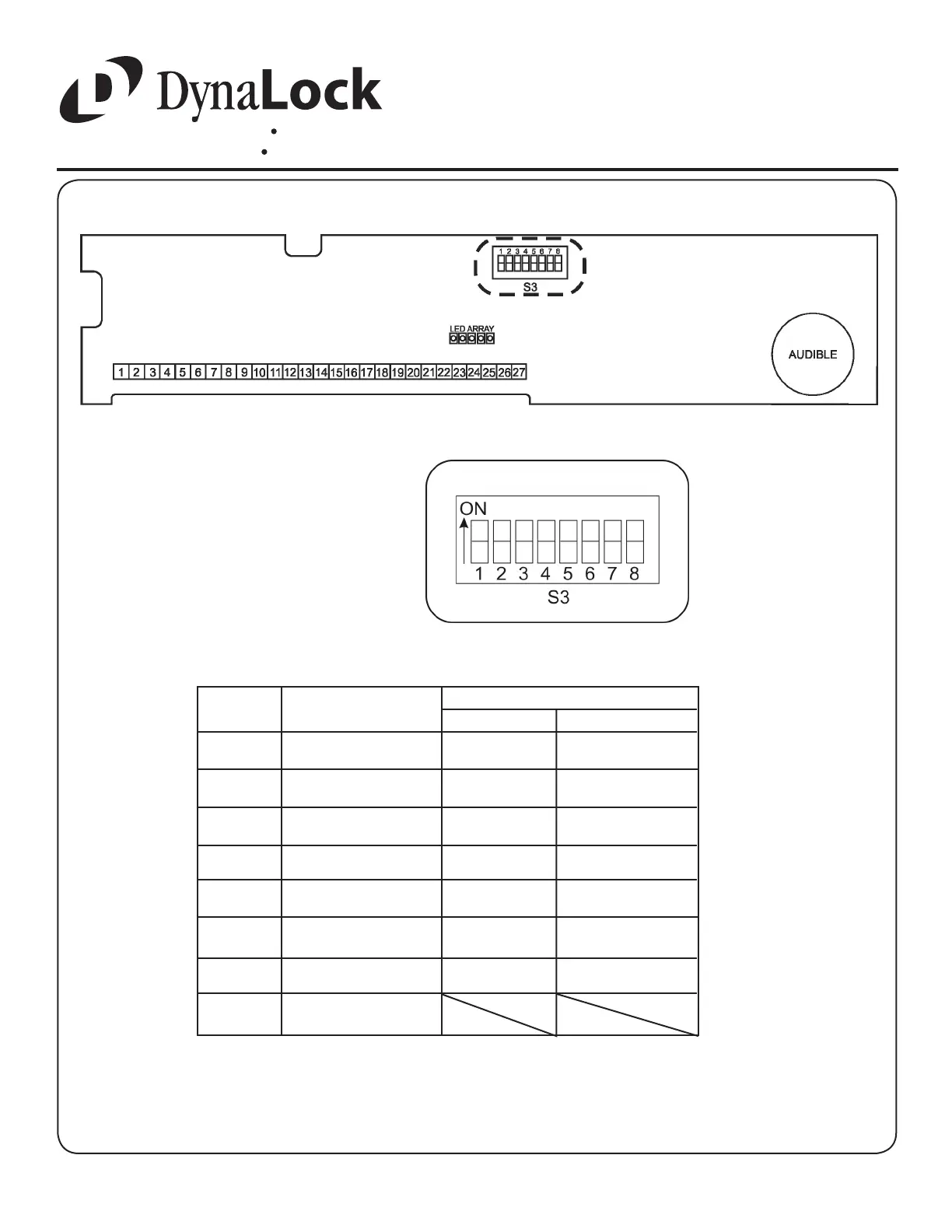

- System Selector Switches
Set the System Selector Switches (S3) to
address your specic system requirements.
The normal factory setting is all switches
off.
1.
C
1 SYSTEM SET-UP NORMAL SET-UP MODE
2 BYPASS AUDIBLE DISABLED ENABLED
3 NUISANCE DELAY 1 SEC. 3 SEC.
4 EGRESS DELAY 15 SEC. 30 SEC.
5 MASTER AUDIBLE ENABLED DISABLED
6
7 EGRESS SENSOR ENABLED DISABLED
8 UNUSED SPARE
SWITCH
FUNCTION
OFF ON
MODE SETTINGS
*
*Only applies to terminals 9&10 (see next page)
FIRE ALARM
INPUT SETTING
NORMALLY
CLOSED
NORMALLY
OPEN
C
