DynaLock 3101C - PARTS AND SUPPORT; Exploded Parts View

Page 14
3101C Gen II MANUAL
11/17
INSTALLATION INSTRUCTIONS
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
3101C
DELAYED
EGRESS LOCK
(GENERATION II)

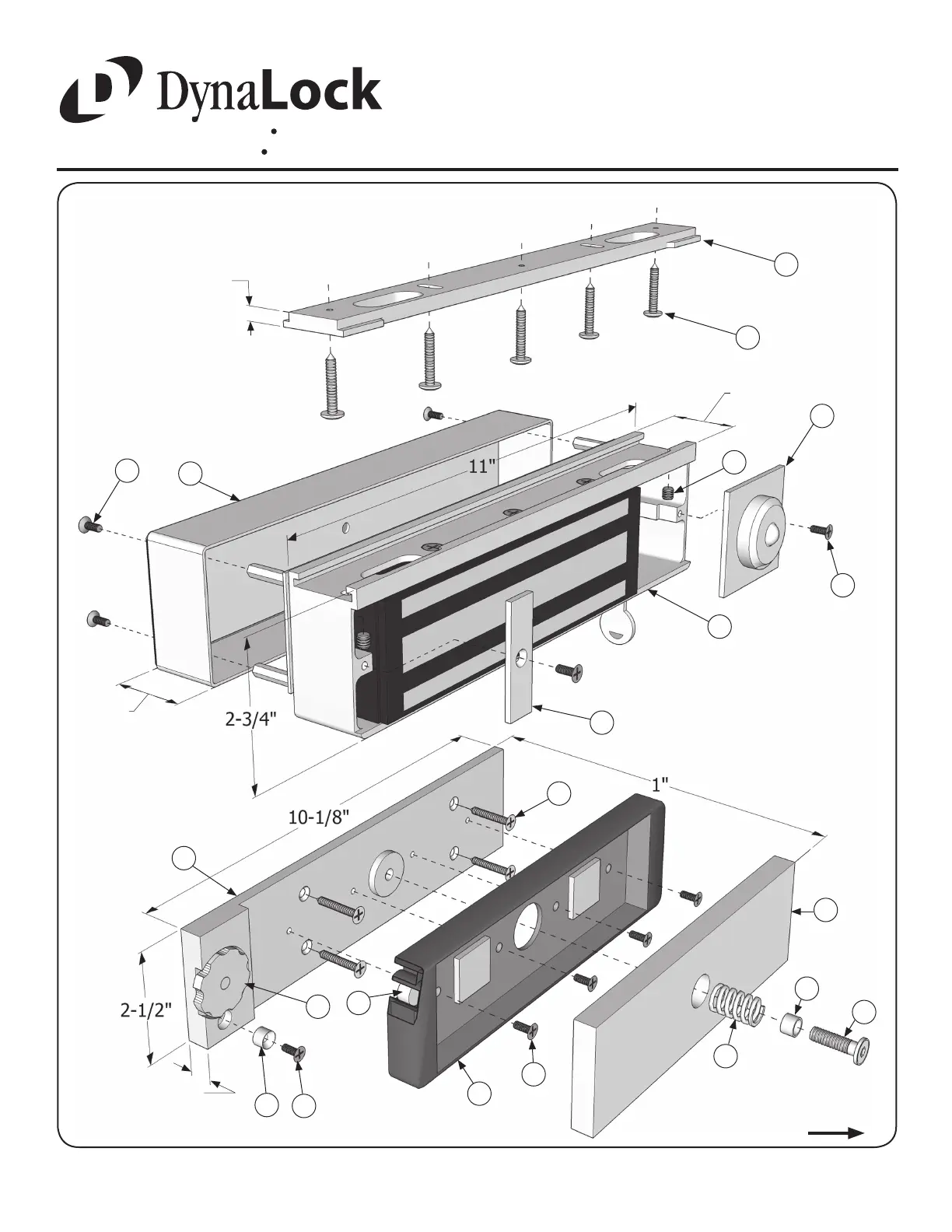

EXPLODED PARTS VIEW
LEGEND ON
NEXT PAGE
1
2
3
4
5
6
11
12
13
1-1/2”
1/4”
1-31/32”
1/2”
7
8
9
10
14
15
17
16
18
19
20
21
