DynaLock 3101C - Option Wiring - Output Terminals

Page 12
3101C Gen II MANUAL
11/17
INSTALLATION INSTRUCTIONS
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
3101C
DELAYED
EGRESS LOCK
(GENERATION II)
OPTION WIRING
MONITORING OUTPUT DESCRIPTIONS
DELAY EGRESS OUTPUT
Delay egress alarm monitoring.
SPDT dry relay contacts rated 1A @ 24VDC/24VAC
Contacts change state upon initiation of delayed
egress, after the nuisance delay has elapsed. They
remain in that state until door is closed and reset.
DYNST OPTION OUTPUT
Dynastat bond sensor monitoring.
SPDT dry relay contacts rated 1A @ 24VDC/24VAC
Contacts change state to signal lock status as either
secure or unsecure. Armature misalignment can also
create an unsecure condition.
DSM OPTION OUTPUT
Door position sensor monitoring.
SPDT dry relay contacts rated 0.5A @ 24VDC
Contacts change state to signal physical door position
as either closed or open. DSM is an independent
circuit that does not require lock power to operate.
ATS OPTION OUTPUT
Anti-Tamper Switch monitoring.
SPDT dry relay contacts rated 0.25A @ 24VDC
Contacts change state to signal removal of the
lock electronics cover.

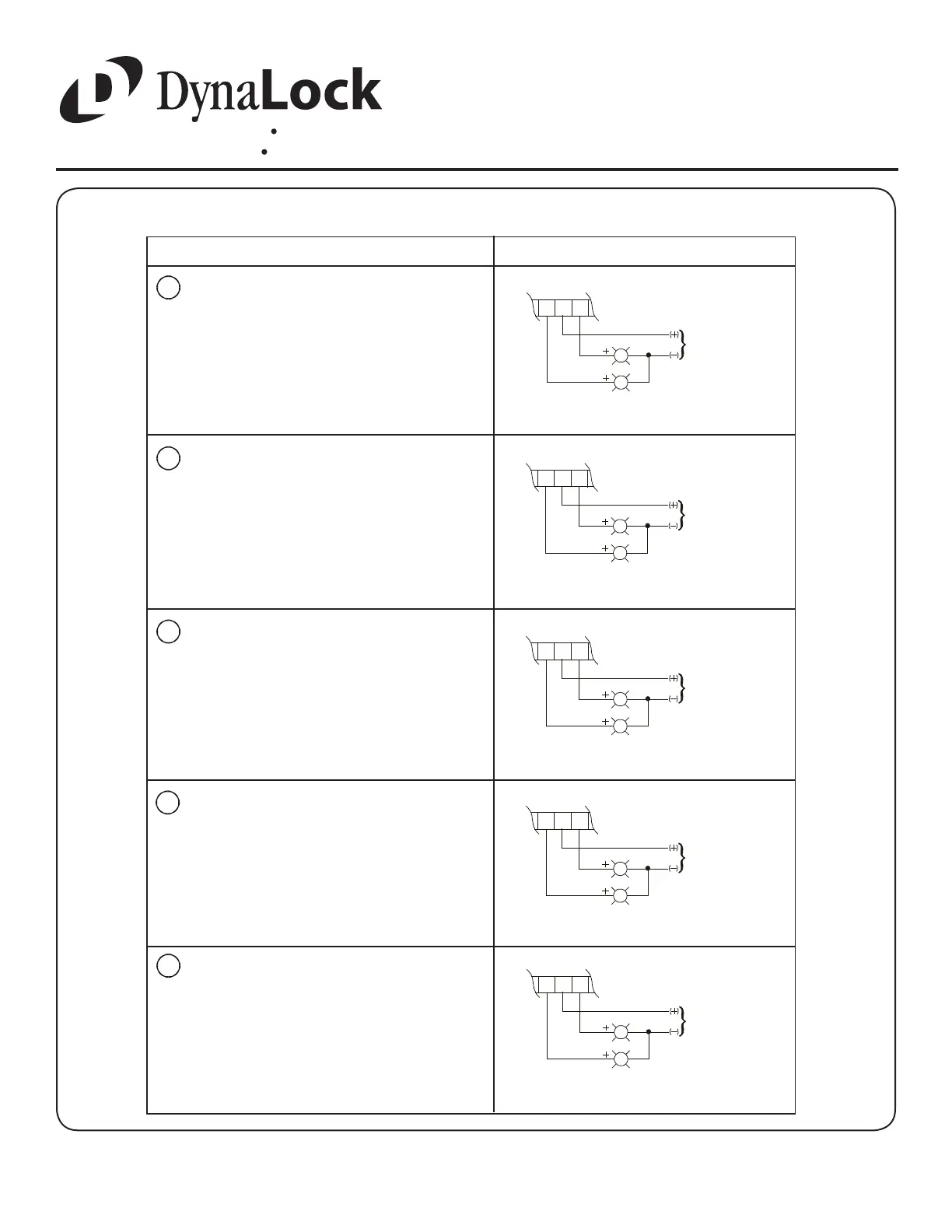

TYPICAL WIRING
NOTE: INDICATORS ARE NOT INCLUDED
NOTE: INDICATORS ARE NOT INCLUDED
NOTE: INDICATORS ARE NOT INCLUDED
NOTE: INDICATORS ARE NOT INCLUDED
13 14 15
ALARM
SECURE
NC C NO
TO INDICATOR
POWER SUPPLY
16 17 18
UNSECURE
SECURE
NC C NO
TO INDICATOR
POWER SUPPLY
19 20 21
OPEN
CLOSED
NC C NO
TO INDICATOR
POWER SUPPLY
22 23 24
TAMPER
NORMAL
NC C NO
TO INDICATOR
POWER SUPPLY
E
F
G
H
AAO AUXILIARY ALARM OUTPUT
Secondary delay egress alarm monitoring output.
SPDT dry relay contacts rated 1A @ 24VDC/24VAC
Contacts change state upon initiation of delayed
egress, after the nuisance delay has elapsed. They
remain in that state until door is closed and reset.
NOTE: INDICATORS ARE NOT INCLUDED
25 26 27
ALARM
SECURE
NC C NO
TO INDICATOR
POWER SUPPLY
E
J
