Grinding Head
Position (LEVEL)

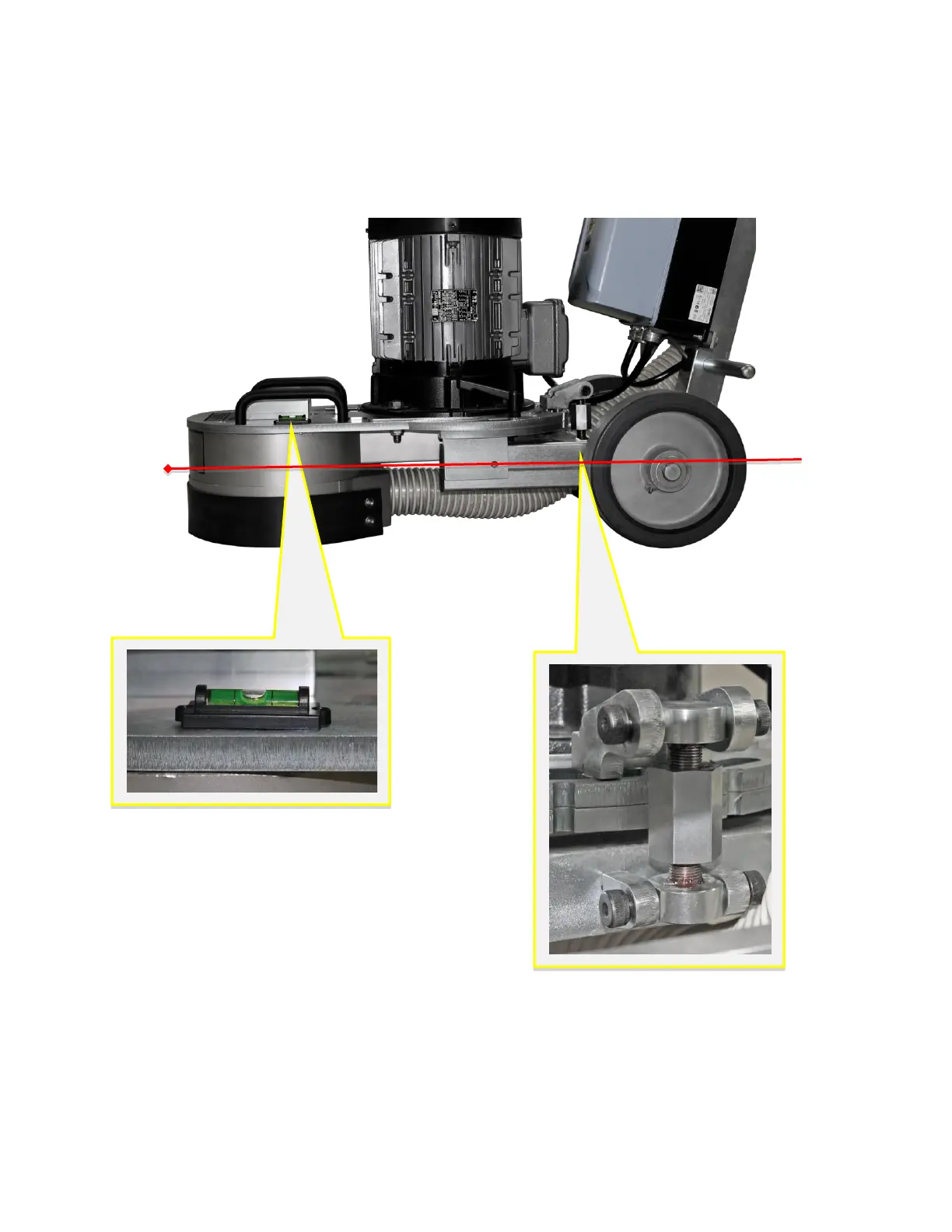

Grinding Head shown Level
depicted by level bubble in
centered position.
Grinding Head Leveling Adjustment
Nut shown in the adjusted position
in order to level the grinding head.
Head Leveling System
Grinding Head Shown in LEVEL position
