Grinding Head
Position (FWD)

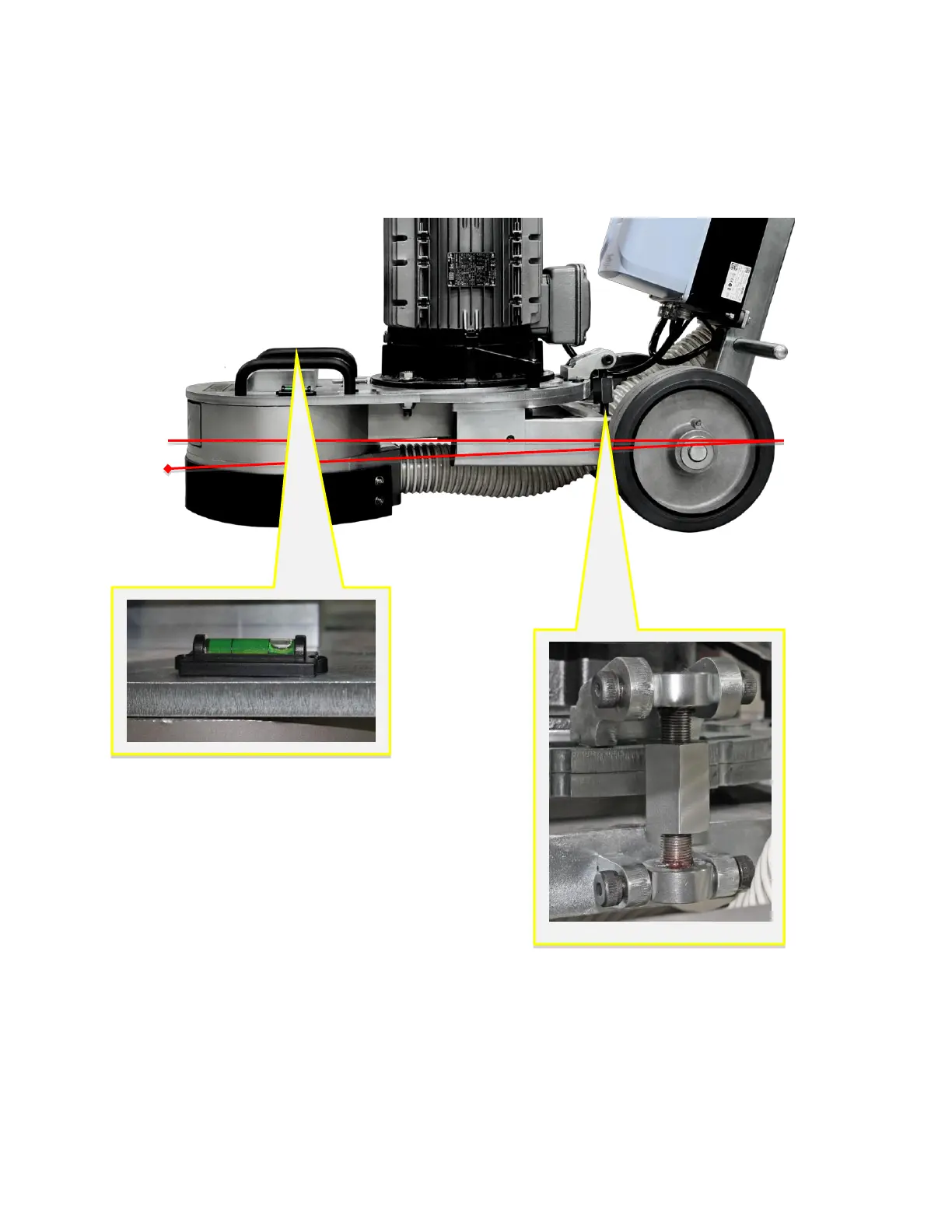

Grinding Head shown in a forward
tilt position depicted by level
bubble in AFT position.
Grinding Head Leveling Adjustment
Nut shown adjusted in a forward
position depicted by adjustment
nut being fully extended.
Head Leveling System
Grinding Head Shown in FORWARD position
