DYNAMIC DIAMOND TOOLING Beast - Page 22

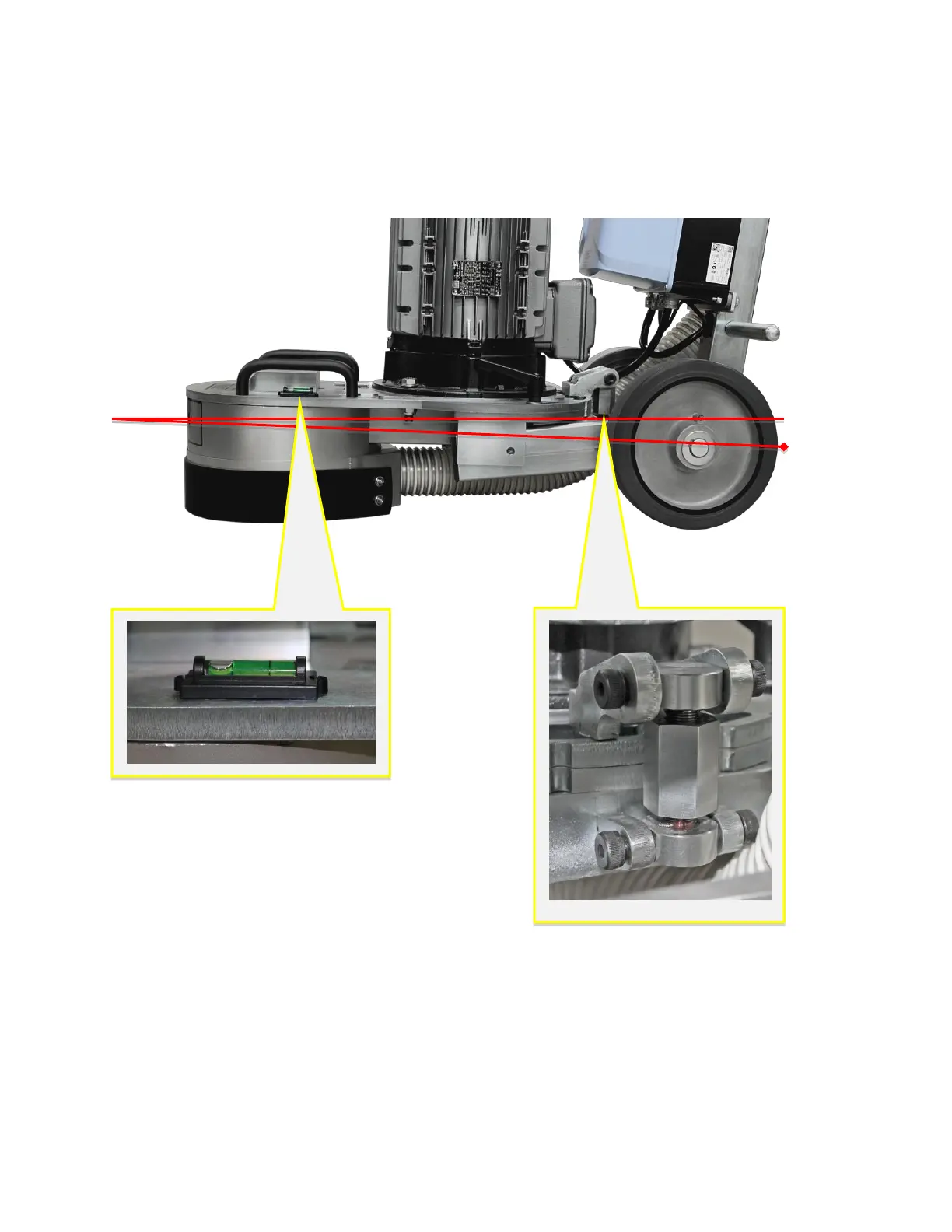

Grinding Head
Position (AFT)
Grinding Head shown in an AFT tilt
position depicted by level bubble in
FWD position.
Grinding Head Leveling Adjustment
Nut shown adjusted in a AFT
position depicted by adjustment
nut in a compressed position.
Head Leveling System
Grinding Head Shown in AFT position
Page 16
Dynamic Diamond Tooling
DDG 1220 User Manual
