5.3 Installing tooling onto a 20” Grinding Plate
This illustration below shows how to install tooling to the 2 grinding plate

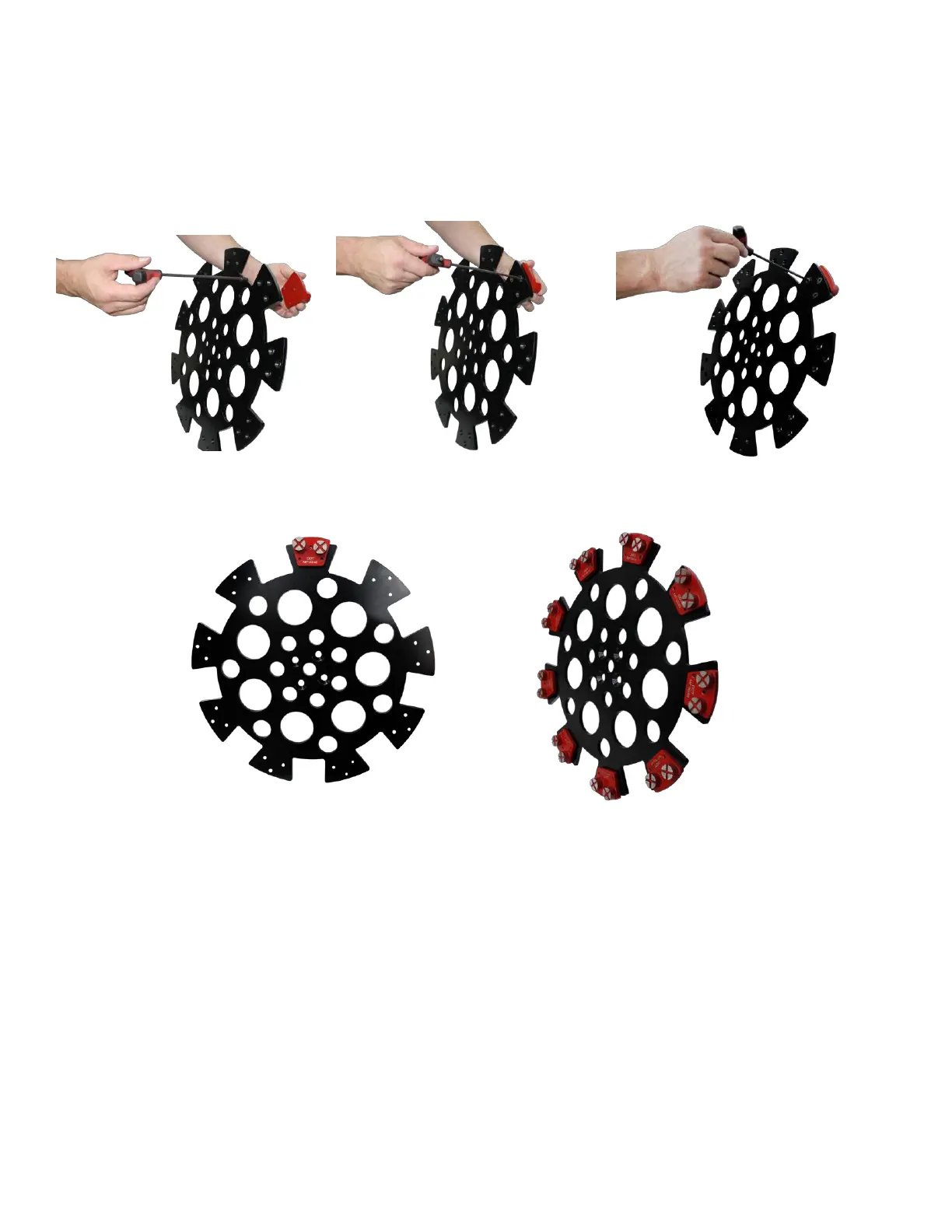

Figure 5-3 How to install tooling to the 2 grinding plate
1 Align the holes in the tooling trapeoid plate with the holes in the grinding plate
2 Screw three M6 1 14 screws into the grinding plate and into the tooling trapeoid
holes using a 4mm Allen wrench
