5.4 Installing 20” Grinding Plate to Bottom Plate of machine
This illustration below shows how to install the 2 grinding plate to the bottom plate of the
machine

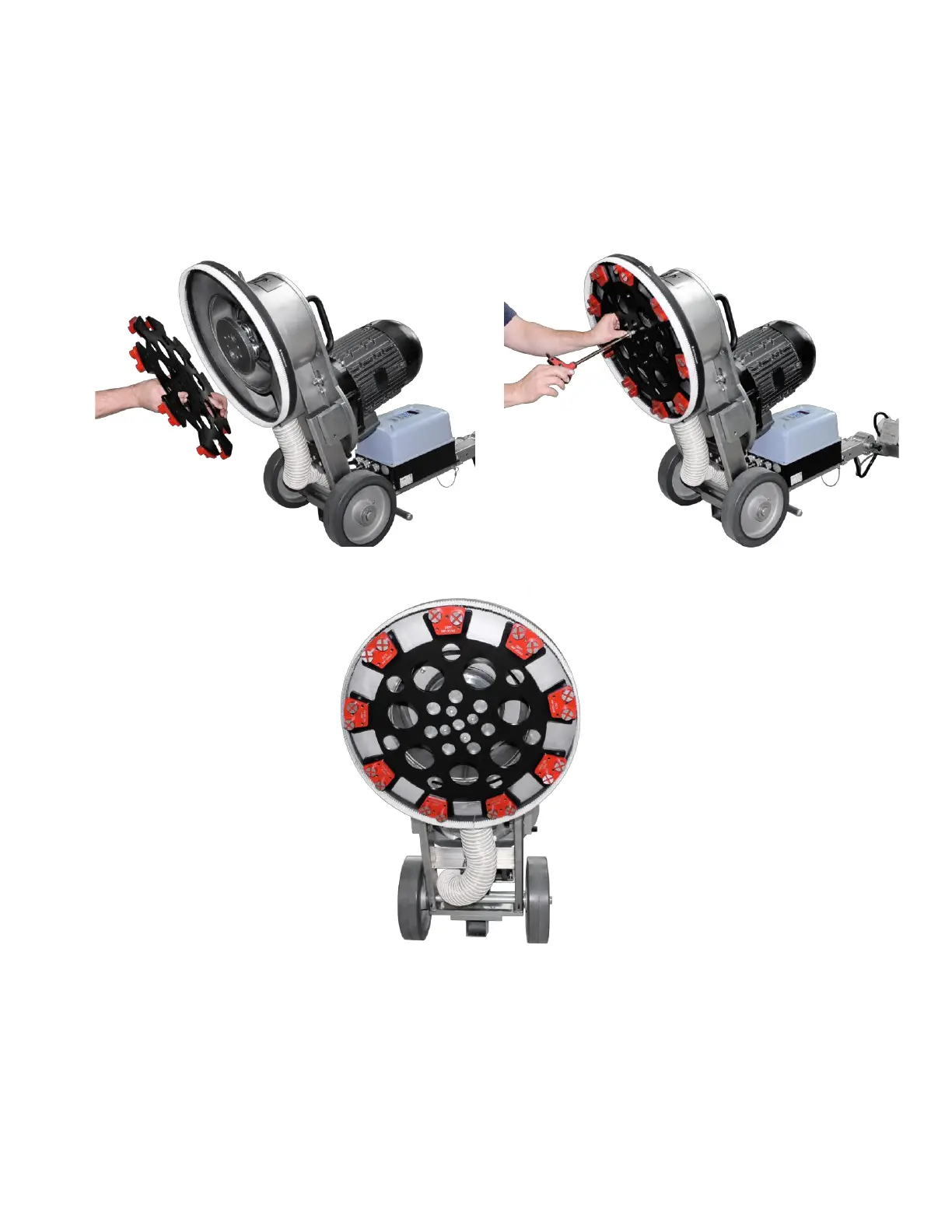

Figure 5-4 How to install a 2 grinding plate to the bottom plate of the machine
1 Screw four M12  175  25 screws into the grinding plate to the bottom plate of the
machine using a 8mm Allen wrench
