11CA 262/362/512 M262EN2
EVERY 10 HOURS OF OPERATION (Daily)
It is important to consider movement of the
drum when the machine turns, ie, the scrapers
can be damaged or wear of the drum may
increase if adjustment is made closer than the
values stated.
If necessary, adjust distance to the drum as follows:
CA 262
Scrapers
– Checking / Adjustment

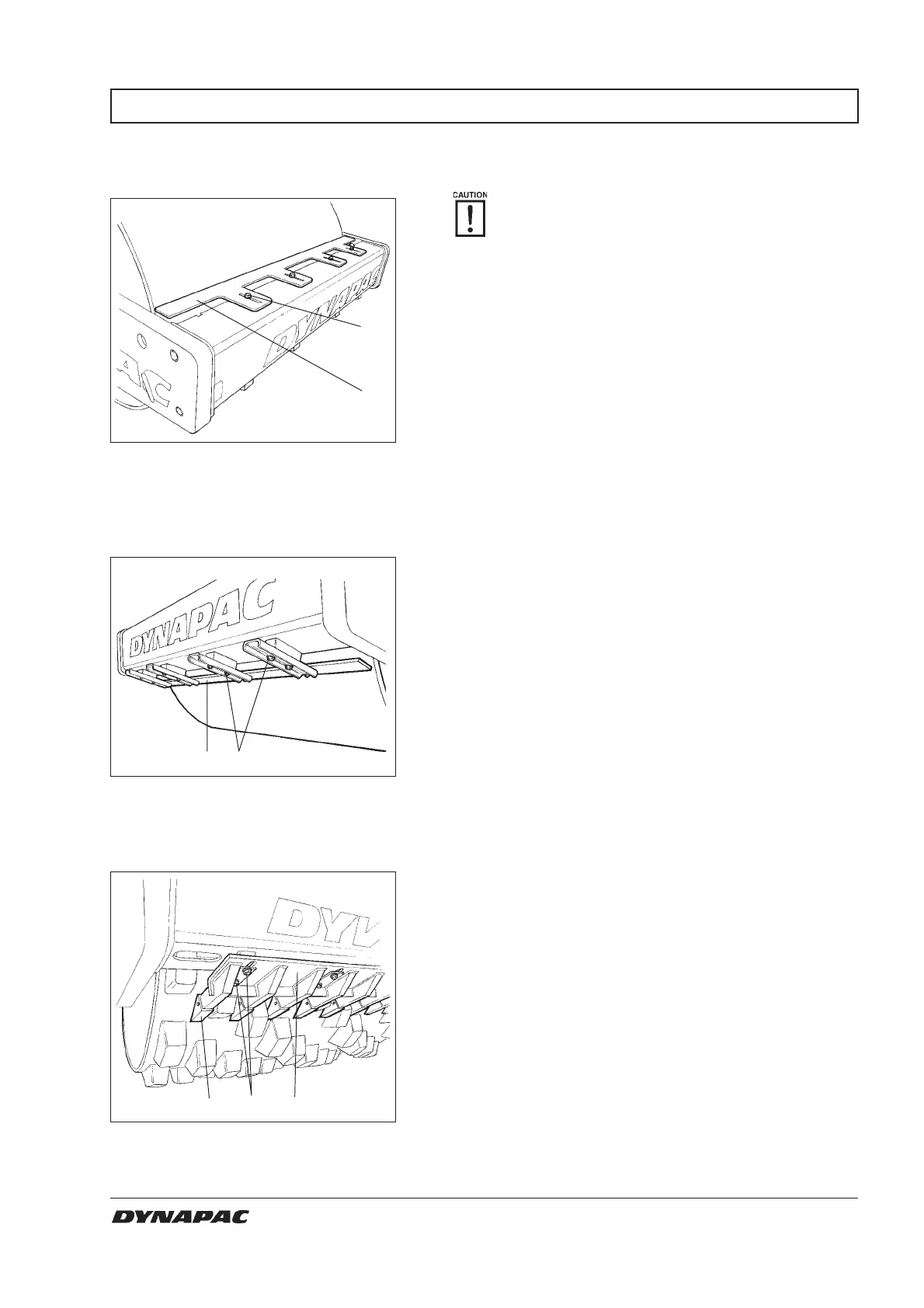

Fig. 2 Scrapers
1. Scraper blade
2. Screws (x4)
Fig. 3 Scrapers
1. Scraper blade
2. Screws
Fig. 4 Scrapers
1. Screws
2. Scraper beam
3. Scraper teeth
CA 362/512
Loosen the screws (2) and adjust the scraper (1) to 20
mm from the drum.
Tighten the screws.
Repeat the procedure on the other scraper.
CA 262PD/362PD/512PD
Loosen the screws (1), then adjust the beam (2) to 25
mm between the teeth (3) and the drum.
Tighten the screws (1).
2
1
Loosen the screws (2) and adjust the scraper (1) to 20
mm from the drum.
Tighten the screws.
1 2
312
