37CA 262/362/512 M262EN2
ELECTRICAL SYSTEM, FUSES, RELAYS
Main fuses

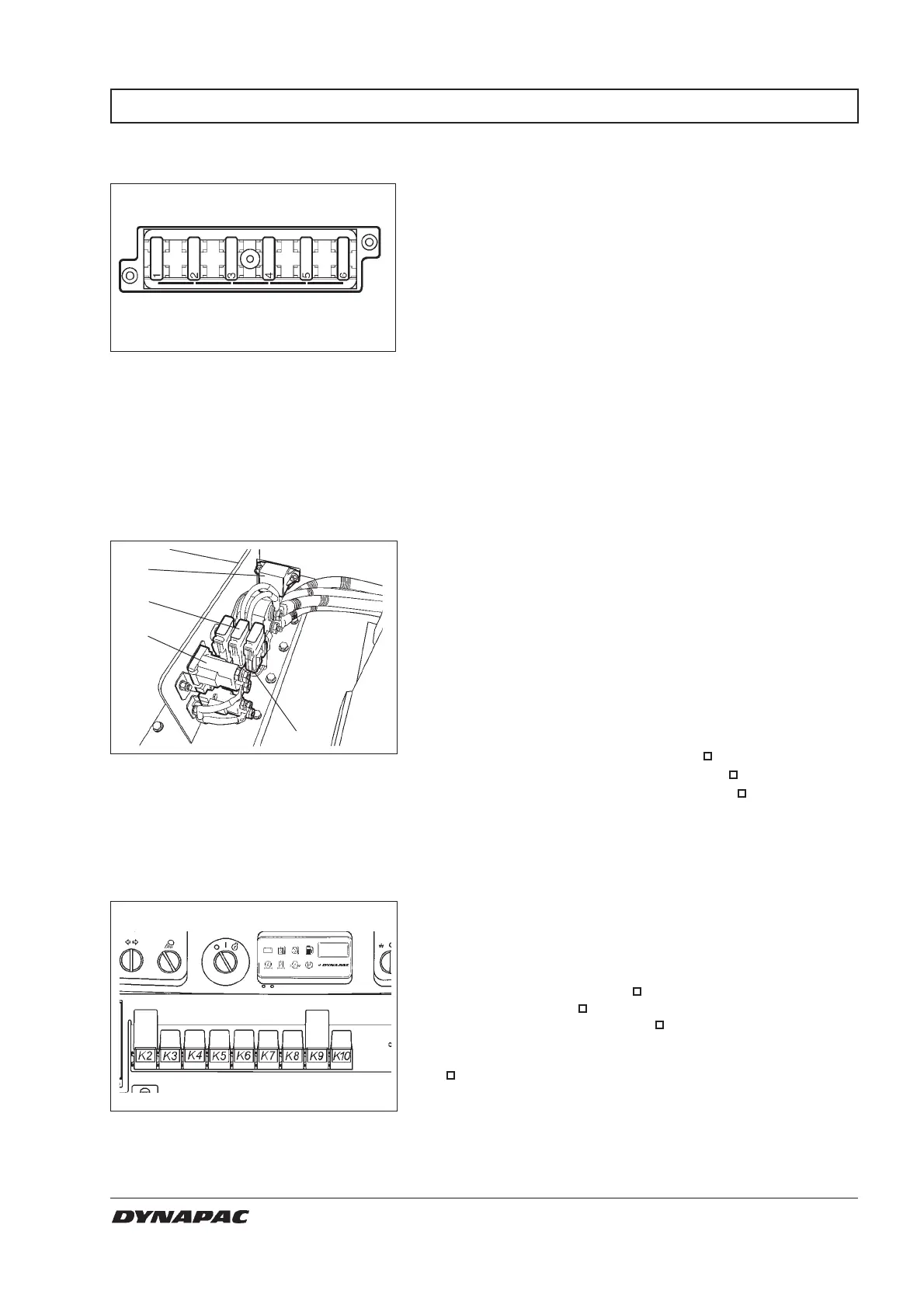

Fig. 64 Engine compartment
1. Starter relay
2. Main fuses
3. Preheater relay
4. Fuses for preheater
There are three main fuses (2). These are located
behind the battery master disconnect switch. The three
screws need to be unscrewed to remove the plastic
cover.
The fuses are of the flat pin type.
The starter relay (1), preheater relay (3) and fuses for
the preheater relays (4) are also fitted here.
Supply, standard 30 A (Green)
Supply, cab 50 A (Red)
Supply, lighting 40 A (Orange)
Preheater supply relay 125 A (Orange)
Fuses in the cab
Fig. 63 Fuse box overhead in cab
20A 1. Condenser fans, cab roof
10A 2. Radio
5A 3. Cab interior lighting
25A 4. Air conditioner fan
10A 5. Rear screen wiper/screen-wash
10A 6. Front screen wiper/screen-wash
The electric system in the cab is equipped with its own
fuse box, located overhead at the front right part of the
cab.
The figure shows the ampere rating and function of the
different fuses. All fuses are of the flat pin type.
K2 VBS relay
K3 Main relay
K4 Horn relay
K5 Hourmeter relay
K6 Fuel level relay
K7 Reverse alarm relay
K8 Lights relay
K9 Direction indicator relay
K10 Brakes relay
= Optional
