Type of Electrical circuit diagram
W3023EN3.pdf2010-04-16
3. Explanation of electrical circuit diagram
The circuit diagram contains 6 pages and some lines
on one page may be connected to a component on
another page.
In top of the pages, figures 1 to 6 are found and on
right of pages, letters A to D are found.

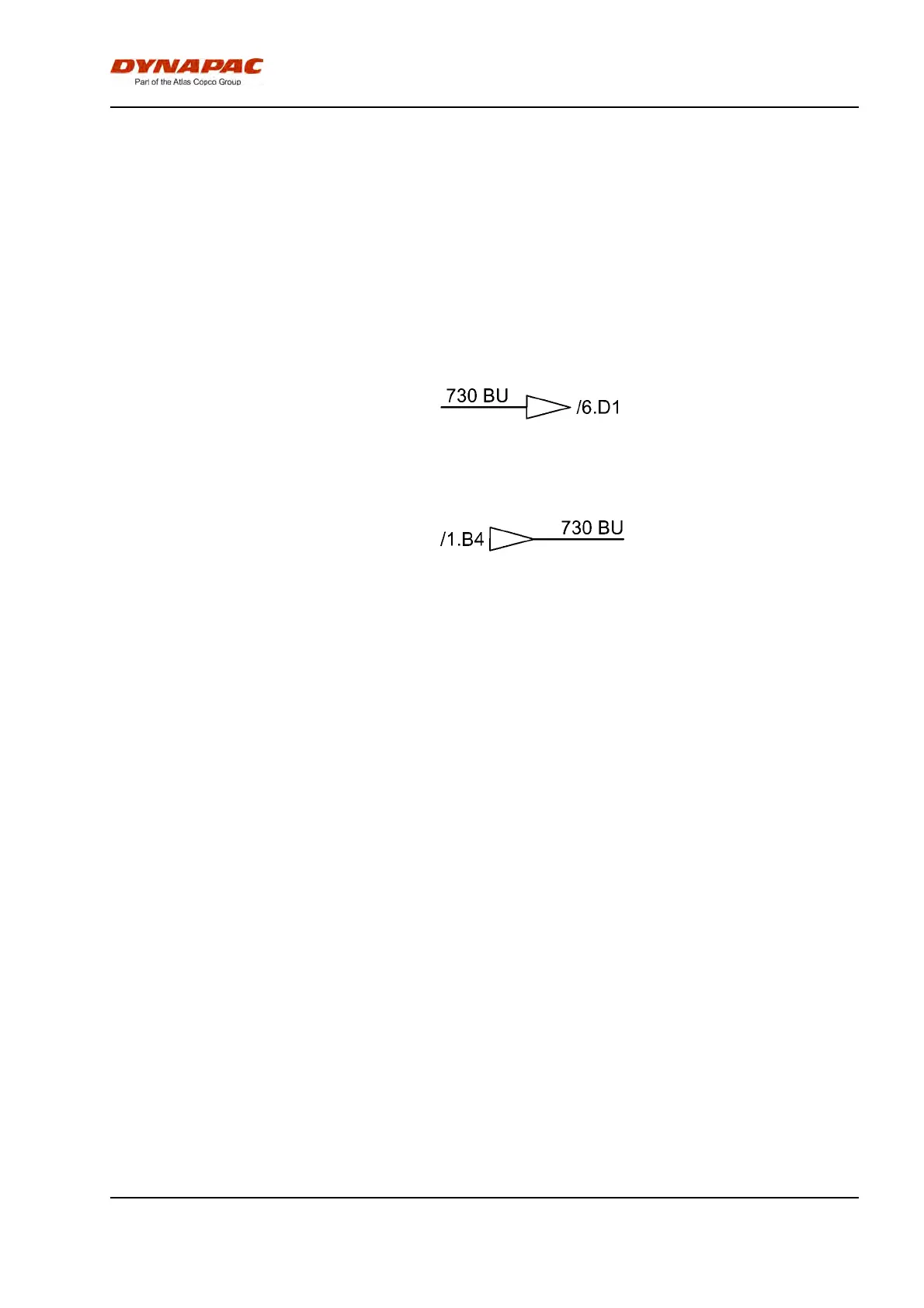

Example
6.D1 means that line (730) continues on page 6
and is found down to left (with coordinates D1 on
the page).
1.B4 mean that the incoming line is found on page
1 with coordinates B4.
7
