16 CC102/C/122/C/132/142/C M102EN4
Place the roller on a level base. The engine
must be switched off and the reserve/par-
king brake knob pushed in for all checking
and adjustments on the roller unless other-
wise specified.
Change or clean the main filter of the air
cleaner (1) when the indicator (4) shows a red
sector at full engine revs.
Release the two locking catches, pull off the cover and
take out the main filter (1).
Do not remove the backup filter (2).
To clean the main filter, blow up and down along the
paper pleats with compressed air at maximum 5 bar
pressure.
Hold the nozzle at least 2–3 cm (1/8") from the paper
pleats to avoid tearing the paper.
Wear protective goggles when working
with compressed air.
Wipe the inside of the cover and filter housing (3).
Check that the hose clamps between filter
housing and suction hose are tight and that
hoses are intact. Inspect all hoses all the way
to the engine.
Change the main filter at the latest after 5
cleanings.

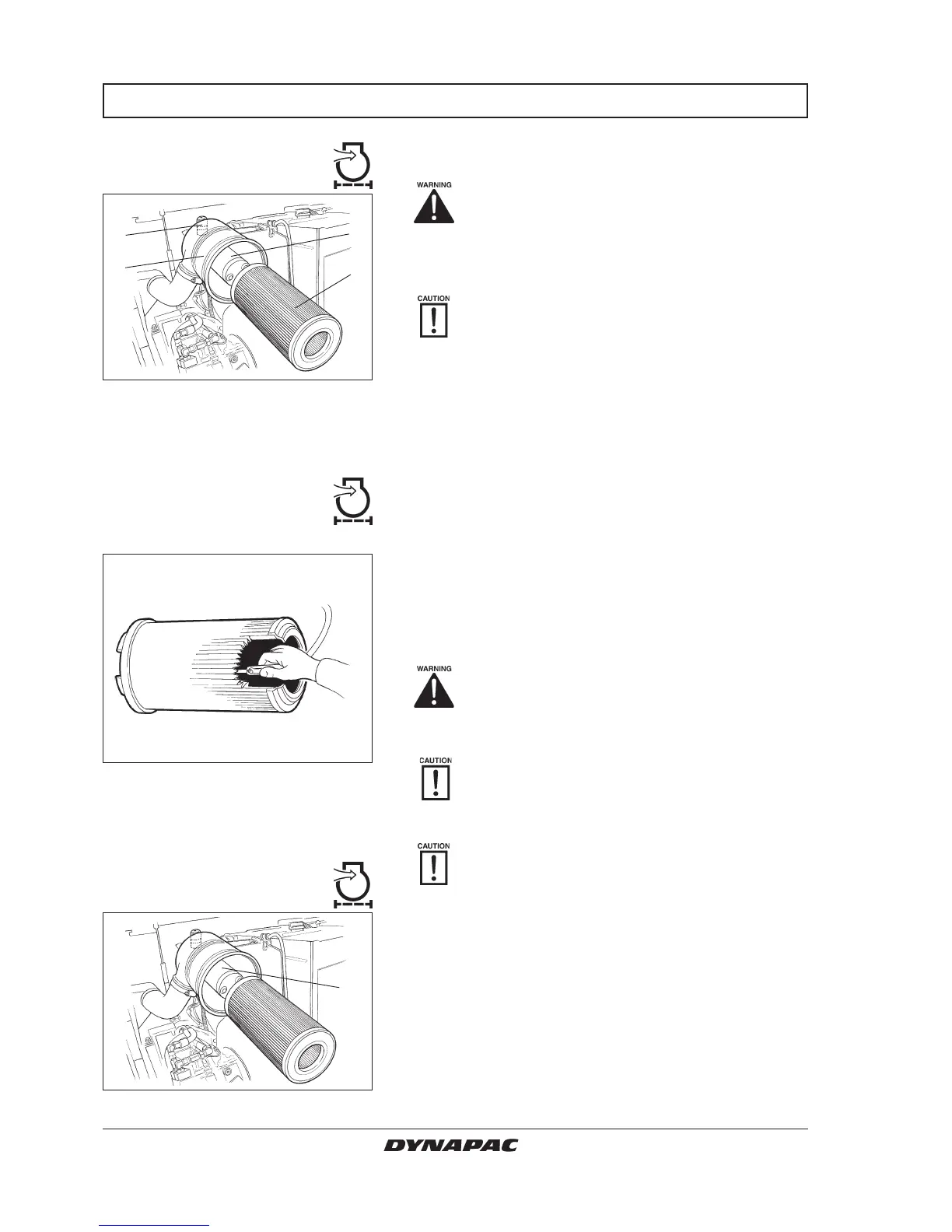

Air cleaner
Checking – Indicator
EVERY 50 HOURS OF OPERATION (Weekly)
Main filter
– Cleaning with compressed air
Fig. 18 Main filter
Fig. 17 Air cleaner
1. Main filter
2. Backup filter
3. Filter housing
4. Indicator
Fig. 19 Air filter
4. Backup filter
Backup filter—Replacement
Replace the backup filter with a new one after every
fifth replacement or cleaning of the main filter. The
backup filter cannot be cleaned.
To change the backup filter (4), pull the old filter out of
its holder, insert a new one and reassemble the air
cleaner in the reverse order.
1
2
3
4
4
