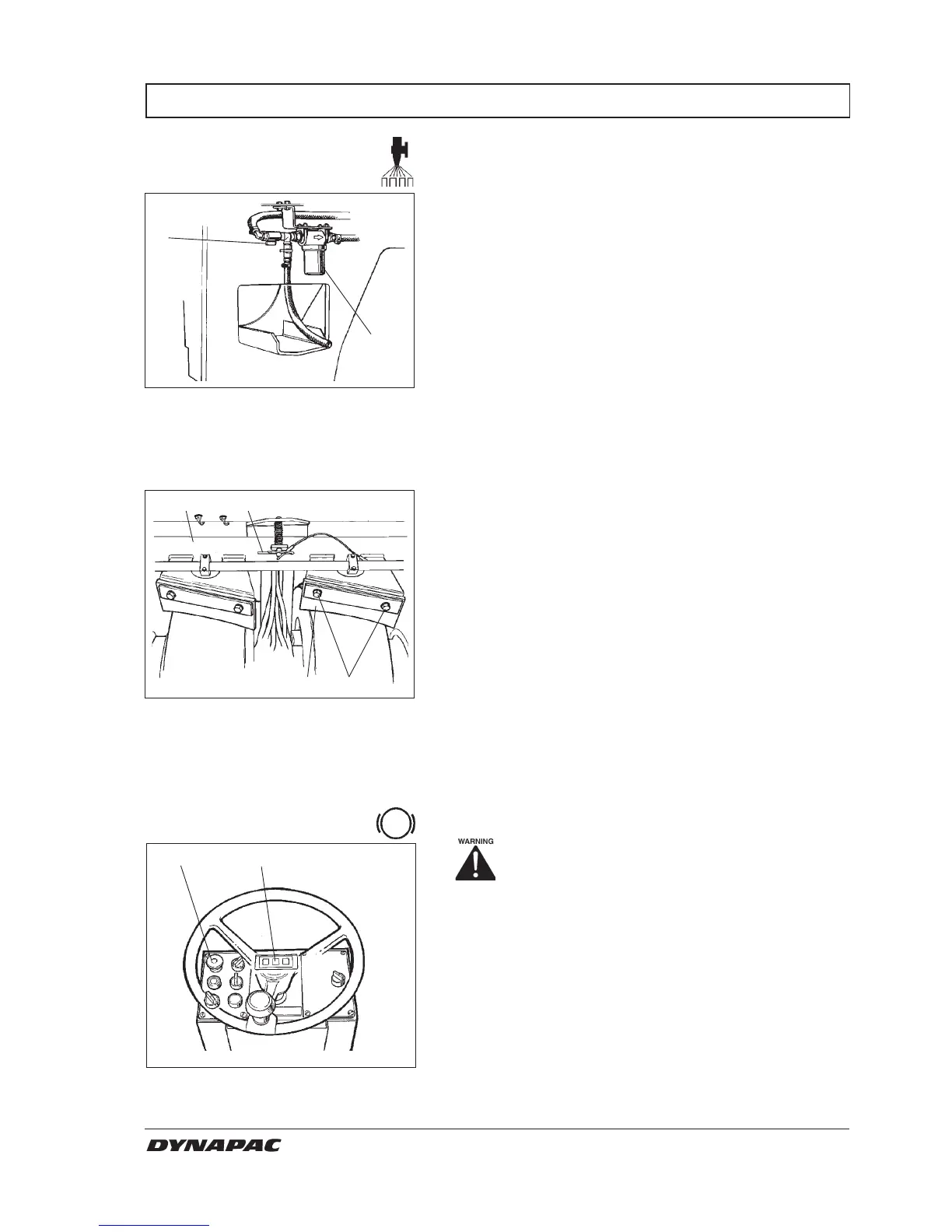

Scrapers – Checking – Setting
Fig. 15 Wheel scrapers
1. Scraper
2. Scraper beam
3. Cotter pin
4. Adjusting screws
Make sure that the scraper (1) lies against the tire
when compacting asphalt compounds.
The scrapers must hang freely from the tires during
transport driving. Lift up the scraper beam (2) by
moving up the cotter (3) to the uppermost hole.
To adjust the scraper’s angle of contact to the tire,
loosen the screws (4), set the scraper and then tighten
the screws.
Pump system/Tires
Checking – Cleaning
2
1
Fig. 14 Left step
1. Filter housing
2. Loader
When cleaning, close the stopcock (2). Release the
filter housing (1). Clean the insert and the filter housing.
Listen to or put your hand on the water pump to check
that it is working.
EVERY 10 HOURS OF OPERATION (Daily)
69
Fig. 16 Instrument panel
6. Reserve/parking brake knob
9. Brake warning lamp
Brakes – Check
Check operation of the brakes as follows:
Drive the roller slowly forward.
Push in the reserve/parking brake knob (6).
The brake warning lamp (9) on the instrument panel
should light and the roller should stop.
After testing the brakes, set the forward/reverse lever
in neutral.
Pull up the reserve/parking brake knob.
The roller is now ready for operation.
