These instructions apply to the CC 132/142.
Position the roller on a level surface and drive it slowly
until the oil plug (1) is straight down.
Switch off the engine and apply the reser-
ve/parking brake.
Place a receptacle that will hold at least 7
quarts under the plug. Collect the oil and
dispose of it properly.
Remove the plug and let all the oil run out. See under
the heading ”Every 500 hours of operation” for filling oil.
These instructions apply to the CC 102/122.
Position the roller on a level surface and drive it until
the drain plug (1) is straight down.
Switch off the engine and press the par-
king brake knob.
Place a receptacle that will hold at least 6
quarts under the plug. Collect the oil and
dispose of it properly.
Remove the plug and let all the oil run out. See under
the heading ”Every 500 hours of operation” for filling oil.
Place the roller on a level base. The engine
must be switched off and the reserve/
parking brake knob pushed in for all check-
ing and adjustments on the roller unless
otherwise specified.
Risk for burns when draining hot oil. Pro-
tect your hands.
Place a receptacle that will hold at least 40
quarts under the plug. Collect the oil and
dispose of it properly.
Remove the drain plug (1) and let all the oil run out,
wipe and refit the drain plug.
Fill with fresh hydraulic fluid of the grade
indicated in the Lubricant specification.
Replace the hydraulic filter as described under the
heading ”Every 1000 hours of operation”.
Start the engine and operate the various hydraulic
functions. Check the level in the reservoir and top off
as necessary.
Make sure that ventilation (extraction) is
adequate if the engine is run indoors. Risk
of carbon monoxide poisoning.
Hydraulic reservoir
– Changing the fluid
1

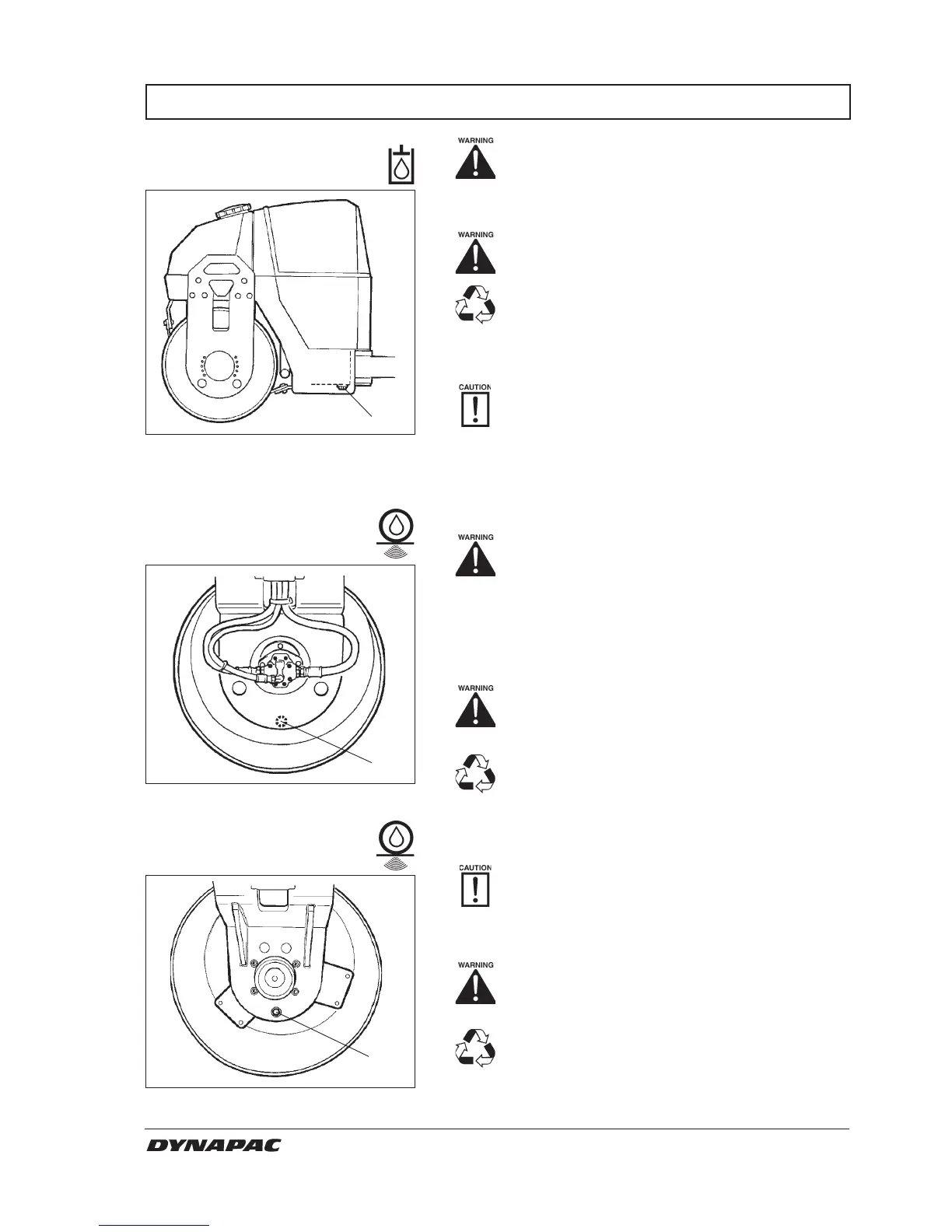

Fig. 43 Left side of roller
1. Drain plug
Fig. 45 Drum, drive side
1. Oil plug
Drum – Changing the oil
Fig. 44 Drum, vibration side
1. Oil plug
1
1
Drum – Changing the oil
EVERY 2000 HOURS OF OPERATION (Yearly)
