Rev. 01/11 -1.12- TFXL-X
or disconnected, connect the positive supply wire and ground to the
appropriate field wiring terminals in the flow meter. See Figure 1.5.
A wiring diagram decal is located on the inner cover of the flow
meter enclosure.
If the flow meter is only to be utilized as a flow rate indicator or
totalizer, no further wiring will be required. Skip to Page 1.17.
PART 1 - TRANSMITTER INSTALLATION

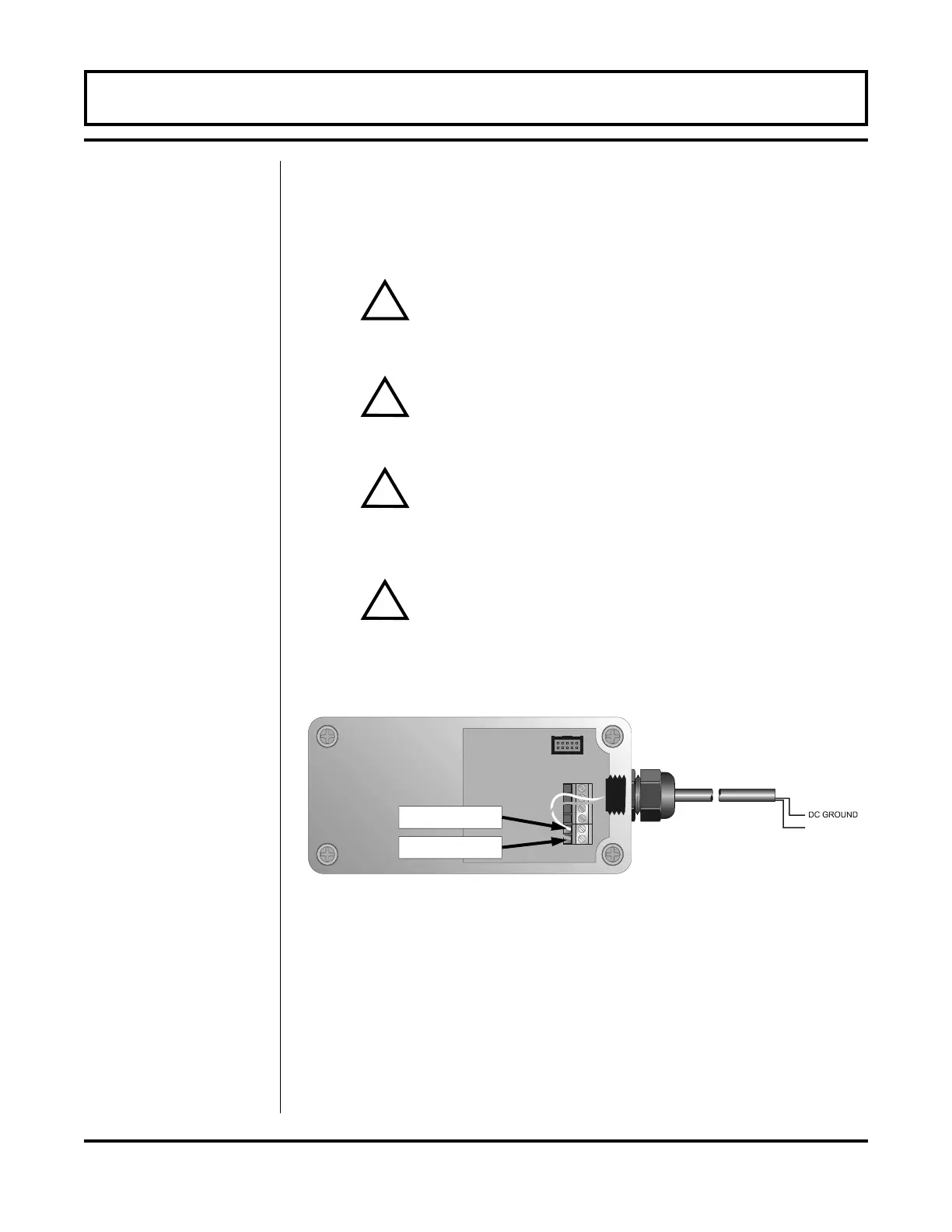

Figure 1.5
DC Power Connection
11- 30 VD C
DC Ground
11 to 30 Vdc
IMPORTANT NOTE:
Not following instructions properly may impair
safety of equipment and/or personnel.
IMPORTANT NOTE:
Must be operated by a power supply suitable
for the location.
IMPORTANT NOTE:
Do not connect or disconnect either power or
outputs unless the area is known to be non-
hazardous.
IMPORTANT NOTE:
Do not connect the interface cable between a
TFXL and a personal computer unless the
area is known to be non-hazardous.
!
!
!
!
