DTTH High Temperature Transducers
Mounting of high temperature transducers is similar to standard
DTTN transducers. High temperature installations require acoustic
couplant that is rated not to “flow” at the temperature that will be
present on the pipe surface.
Installation consists of the following steps:
1. Apply a liberal coating of high temperature grease to the entire
surface of the transducer face. The thickness of the application
should be approximately ¼ inch (6.4 mm).
2. Install the two transducers following the procedures detailed in
the DTTN instructions on page 2.9 of this manual.
DTTS and DTTC Small Pipe Transducer Installation
The small pipe transducers offered by Dynasonics are designed for
specific pipe outside diameters. Do not attempt to mount a DTTS or
DTTC transducer onto a pipe that is either too large or too small for
the transducer—contact the Dynasonics factory to arrange for a
replacement transducer that is the correct size.
DTTS and DTTC installation consists of the following steps:
1. Apply a thin coating of silicone grease to both halves of the
transducer housing where the housing will contact the pipe. See
Figure 2.6.
PART 2 - TRANSDUCER INSTALLATION
DTTH
Transducers
for High
Temperature

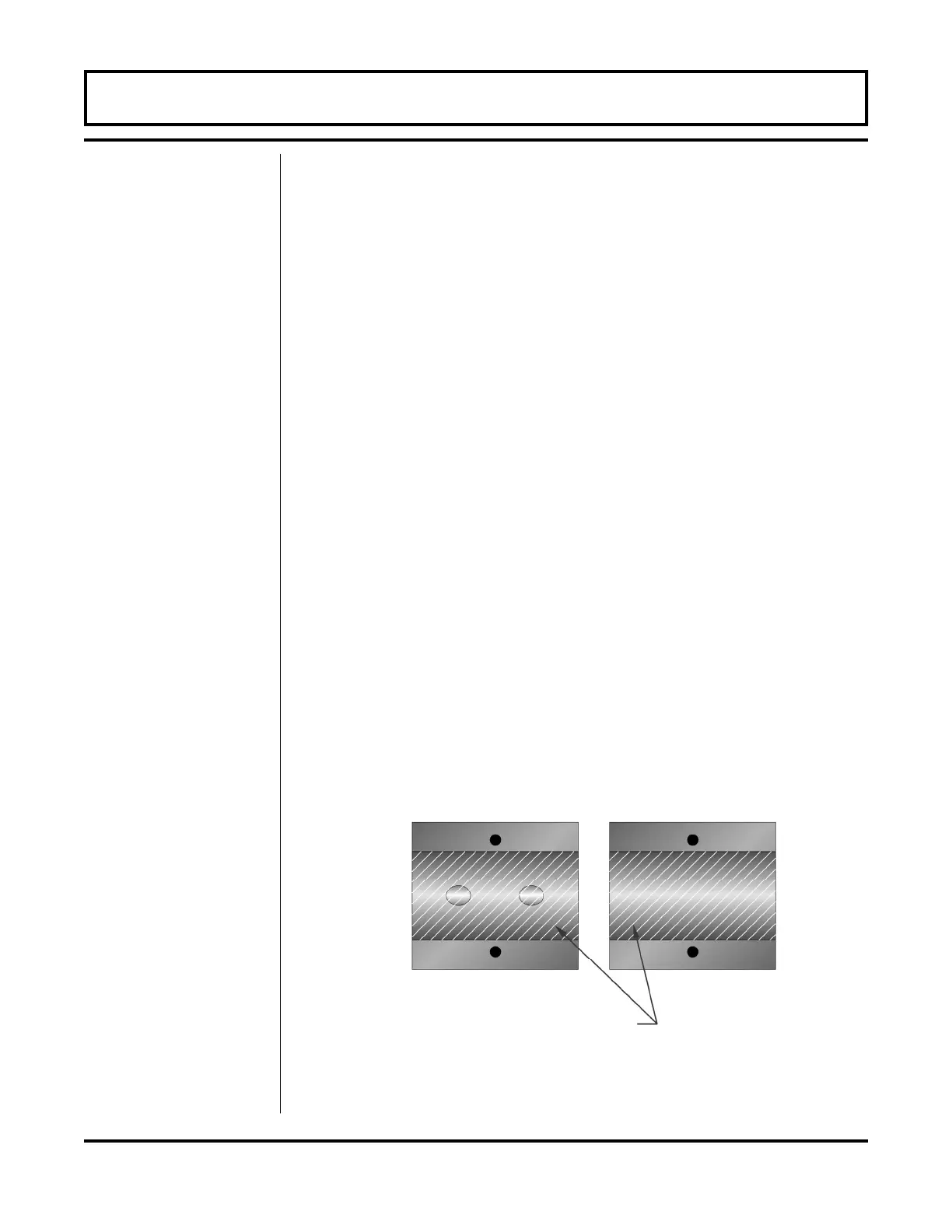

Figure 2.6
Application of Grease - DTTS Transducer
Silicone Grease
DTTS and DTTC
Small Pipe
Transducer
Installation
