dynasonics TFXL series - 4-20 Ma Output

Rev. 01/11 -1.14- TFXL-X
Connect the wires to the appropriate Field Wiring Terminals within
the TFXL enclosure. See Figure 1.7.
PART 1 - INPUT/OUTPUT CONFIGURATION
Figure 1.6

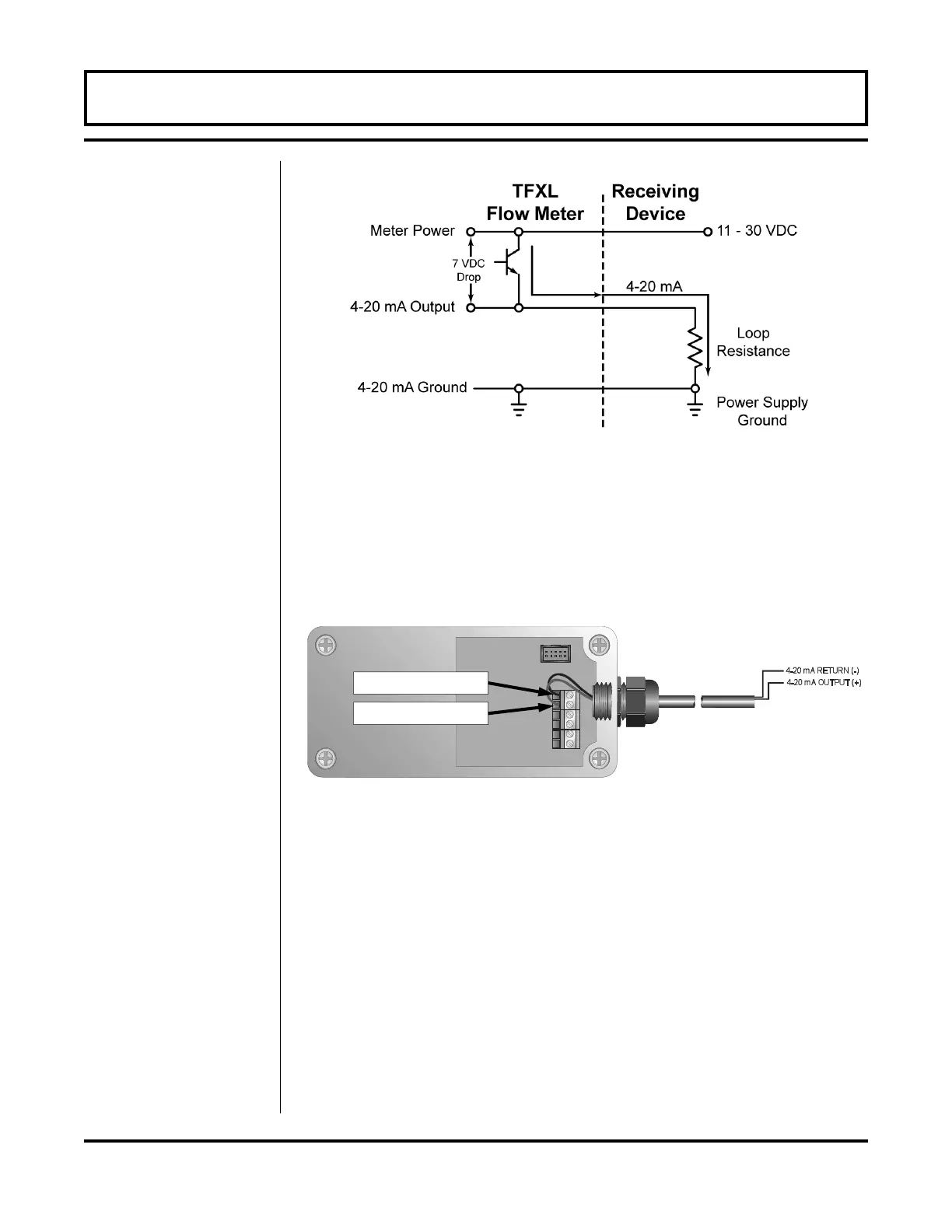

4-20 mA Block Diagram
4-20 mA Ground
4-20 mA Output
Figure 1.7
4-20 mA Connections
