5. Display TAB — See Figure 3.7
The Display TAB permits configuration of the flow meter display.
Display
Select Flow to display flow rate only on the display.
Select Total to display the flow accumulator only on the display.
Select Both to periodically toggle between rate and
accumulated flow displays.
Display Total
Select Net to display the accumulated difference between the
positive and negative totalizers. This feature will subtract
backflow (drain back) from the totalizer value.
Select Positive to display only flows moving in the forward
direction.
Select Negative to display only flows moving in the backwards
direction.
Display Dwell Time
Enter a value between 1 and 10 seconds to establish how long the
flow meter will display flow rate, then accumulated total, then rate
and so on.
PART 3 - PROGRAMMING

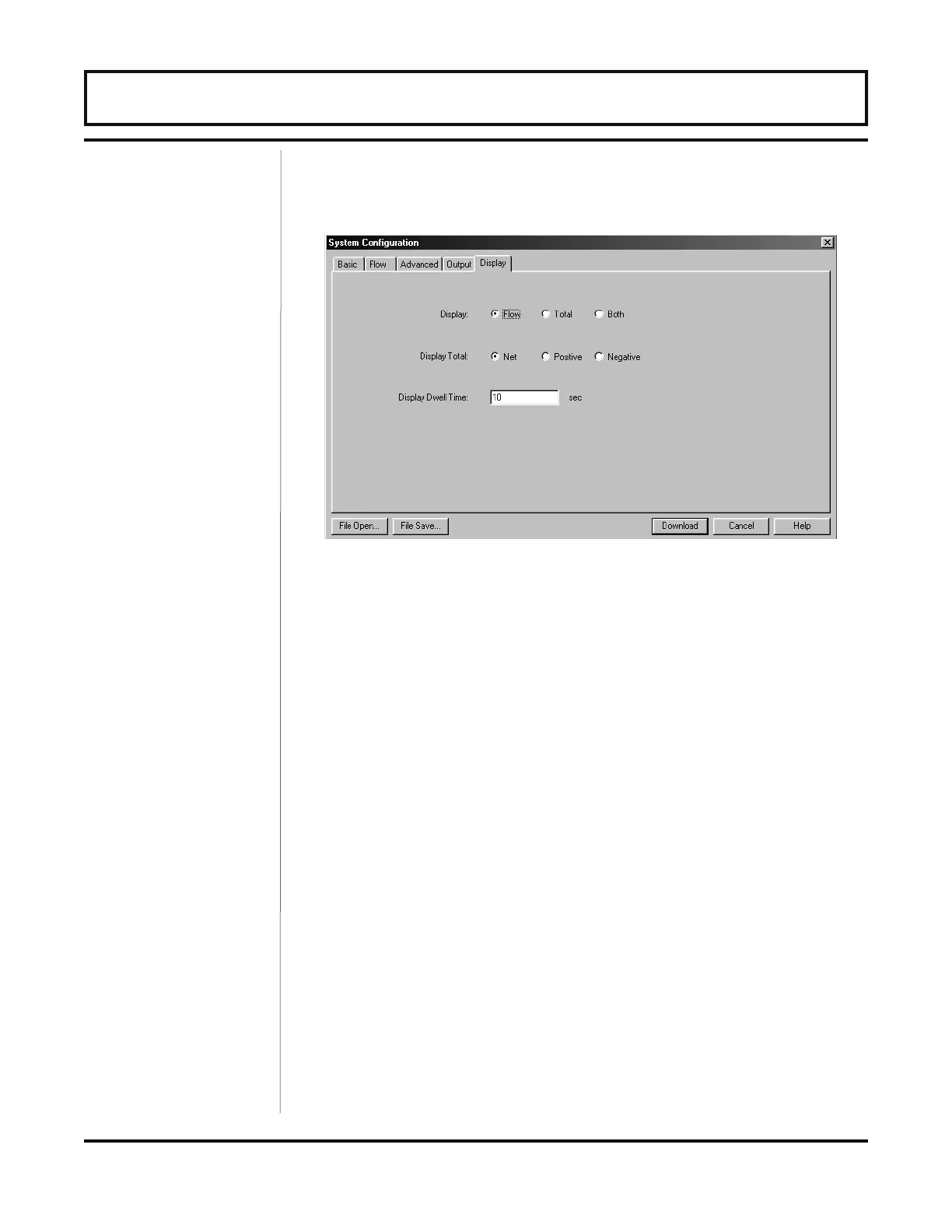

Figure 3.7
Display Tab
Display
Configuration
To Next Page
