Introduction
1-3
Introduction

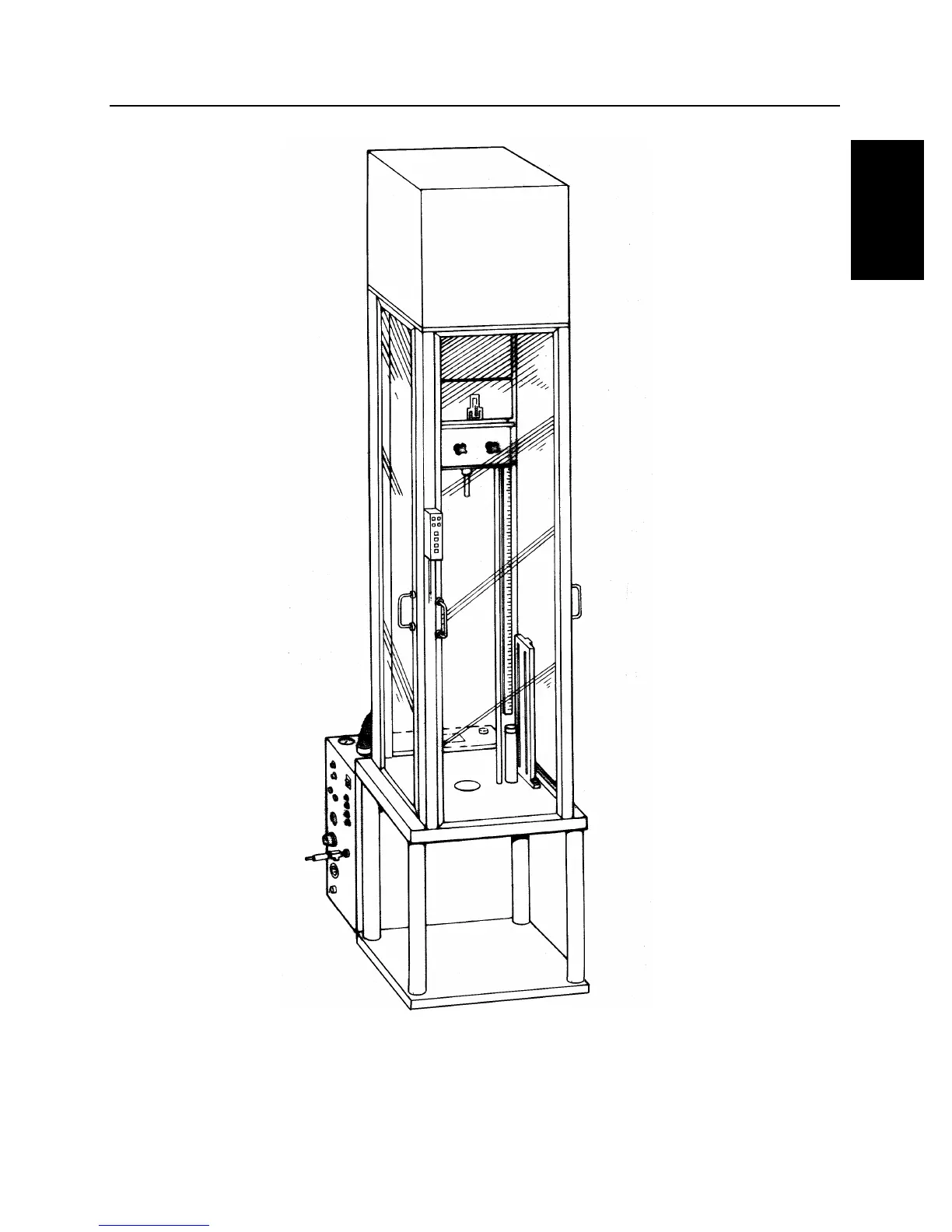

Figure 1-1. Dynatup 8250 Drop Tower
Specimens up to six inches wide (15.24 cm) are tested above the upper baseplate and
between the guide columns. Larger specimens are tested below the upper baseplate of
the machine.
