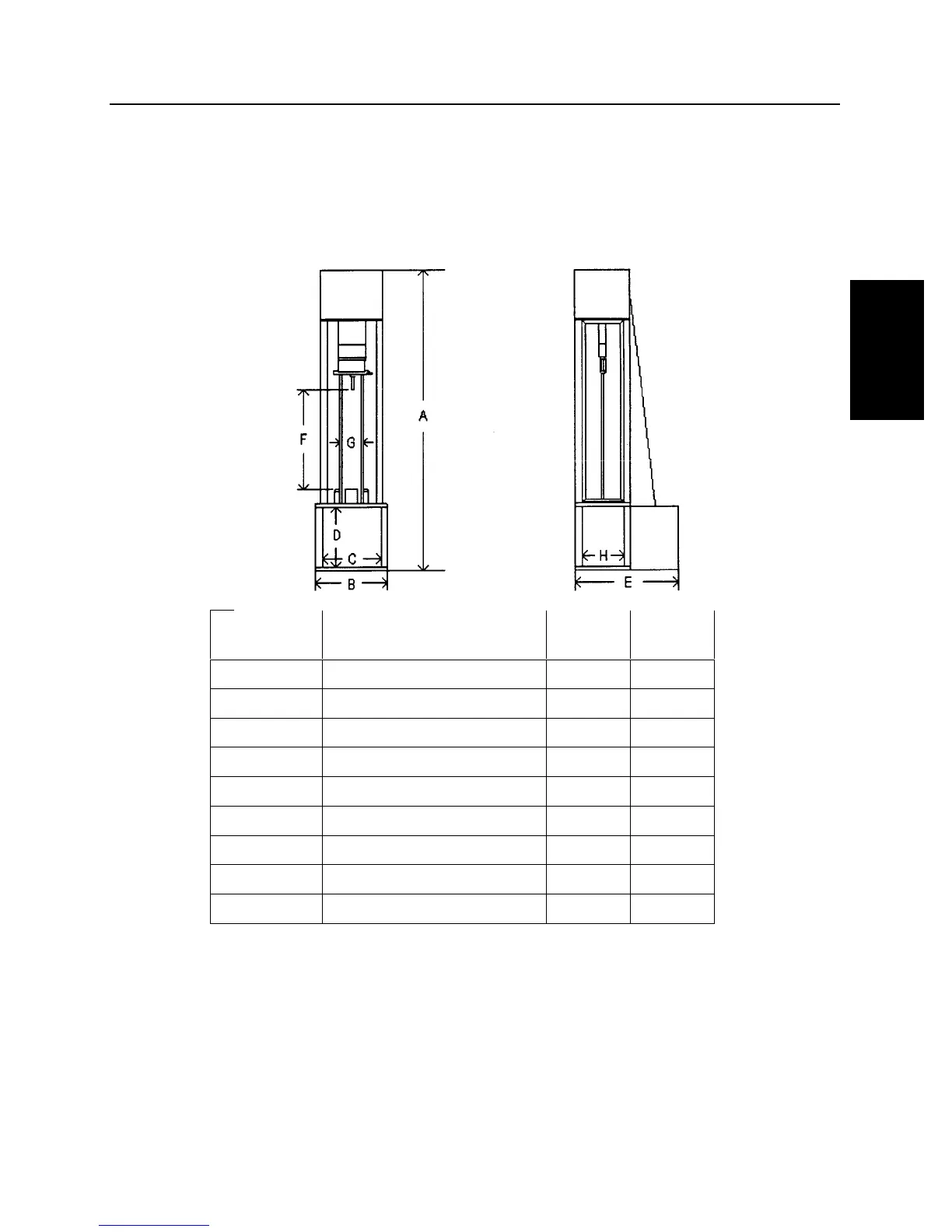

Model 8250HV
Dimension Description English
(inches)
Metric
(cm)
A Overall Height 107 272
B Total Width 23 58.5
C Max. Component Width 19 48
D Max. Component Height 22 56
E Depth of Drop Tower 20 51
F Depth of Motor Assembly 9.5 24
G Max. Vertical Drop Height 46* 117*
H Inner Guide Rod Clearance 6 15
I Max. Component Depth 14 35.5
* Values dependent upon specimen tup selection and specimen thickness.
Overall system weight: 1300 lbs (588 kg)
Power requirement: 100V – 240V, @ 50-60 Hz, 20 Amps
Air requirement: 0.3 cfm (8.5 lpm) @ 90 psi (6.21 bars)
