Adjusting the Stop Blocks and Shock Absorbers M14-13655-EN
5-4
Adjusting the Stop Blocks and Shock Absorbers
Refer to the following procedures for information on setting the stop block and shock
absorber height. Figure 5-3 illustrates the stop block and shock absorber setup.

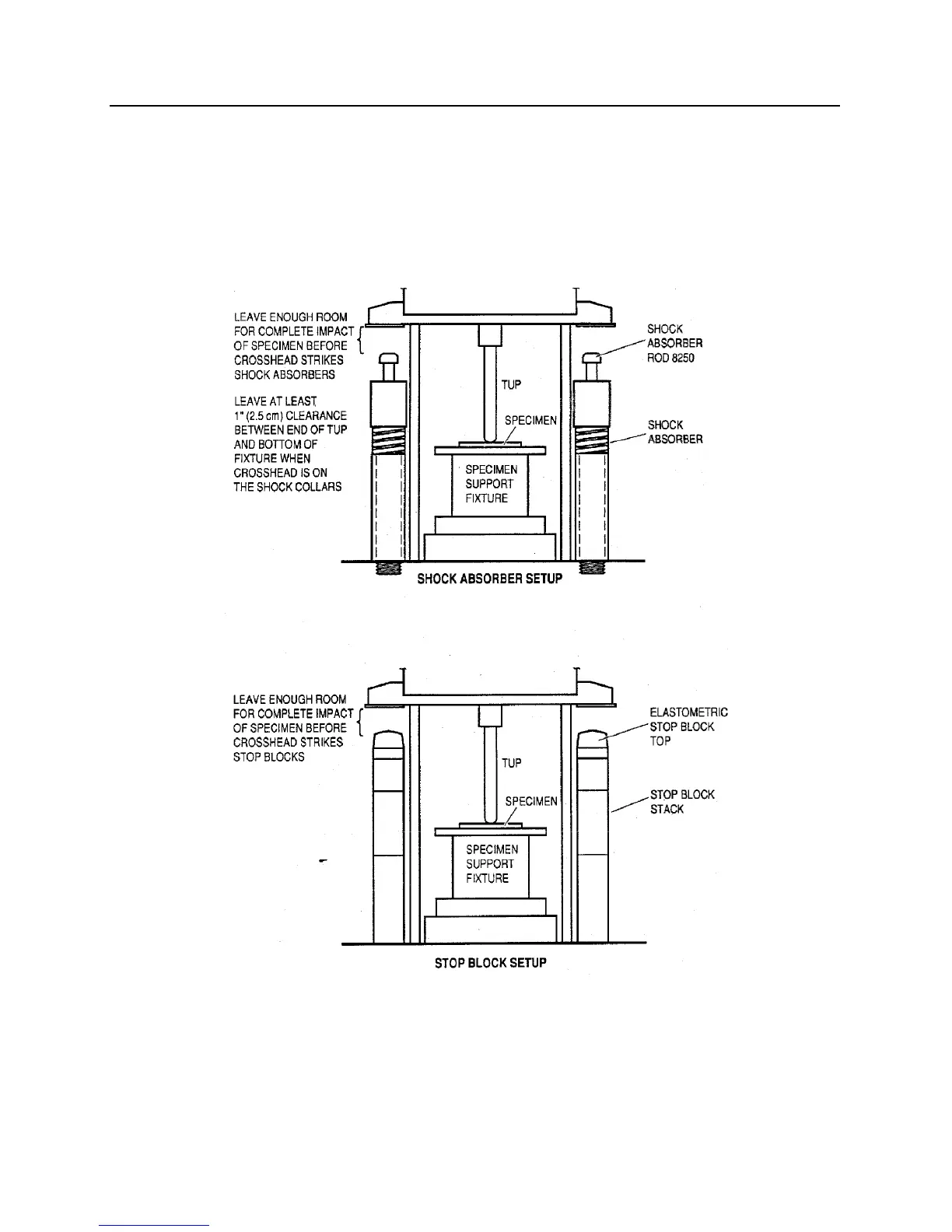

Figure 5-3. Shock Absorber and Stop Block Setup
