Dynatup 8250 - Ancillary Machine Controls; Figure 4-1. Motor Enclosure

Ancillary Machine Controls M14-13655-EN
4-4
Ancillary Machine Controls

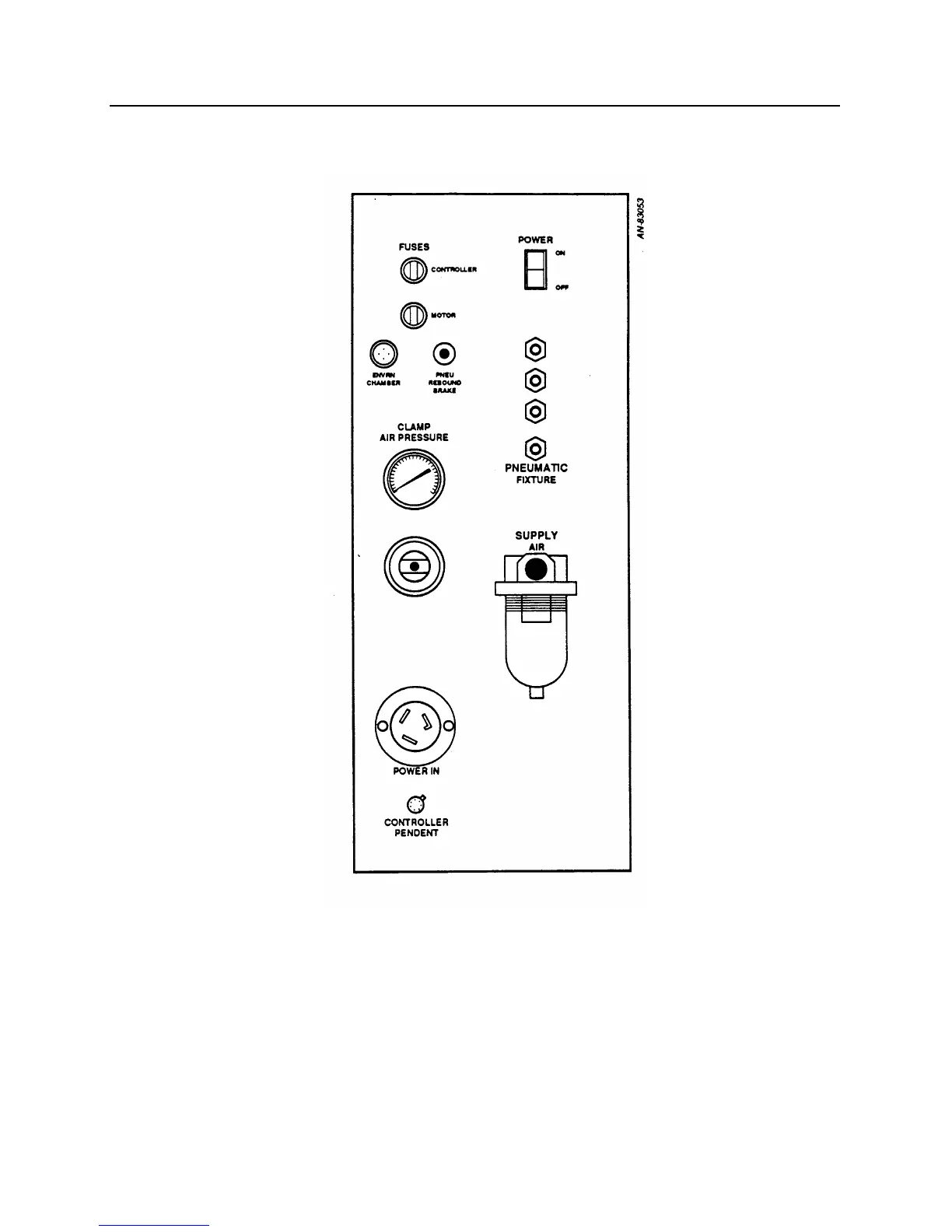

Figure 4-1. Motor Enclosure
Environmental Chamber Connection (Envrn Chamber)
The Envrn Chamber connection is located on the left side of the Model 8250 motor
enclosure. This connection is used when the EC8250 environmental chamber is installed
on the Model 8250 and allows the chamber to interface with the Model 8250's safety
interlock system. Consult the EC8250 environmental chamber manual for specific
installation instructions.
