Uncrating the Machine
The Model 8250 impact test machine weighs about 400kg (900 lb) and is packed face
down in the crate. Use the following instructions to safely uncrate and stand the machine
up in preparation for final positioning.
CautionCaution
Do not use safety enclosure doors, door handles or the top sheet metalDo not use safety enclosure doors, door handles or the top sheet metal
enclosure to move the machine. Use only the machine frame for tiltingenclosure to move the machine. Use only the machine frame for tilting
and lifting.and lifting.
1. Remove the top and side panels of the crate and the plastic sheeting covering the
machine.
2.
Move the pallet with the Model 8250 still banded in place as close to the final
position as possible. Once uncrated, the machine is difficult to move.
3.
Lift the Model 8250 and slide the base off the end of the crate. Lifting the base
of the machine will require a forklift or hoist. As a lift point, use a sling around
the 2 inch (5cm) diameter table legs.
4.
With the table legs and lower table base plate protruding off the end of the crate,
tilt the machine upright. Note the pivot point in Figure 3-2. Do not let the tower
pivot on the safety enclosure.

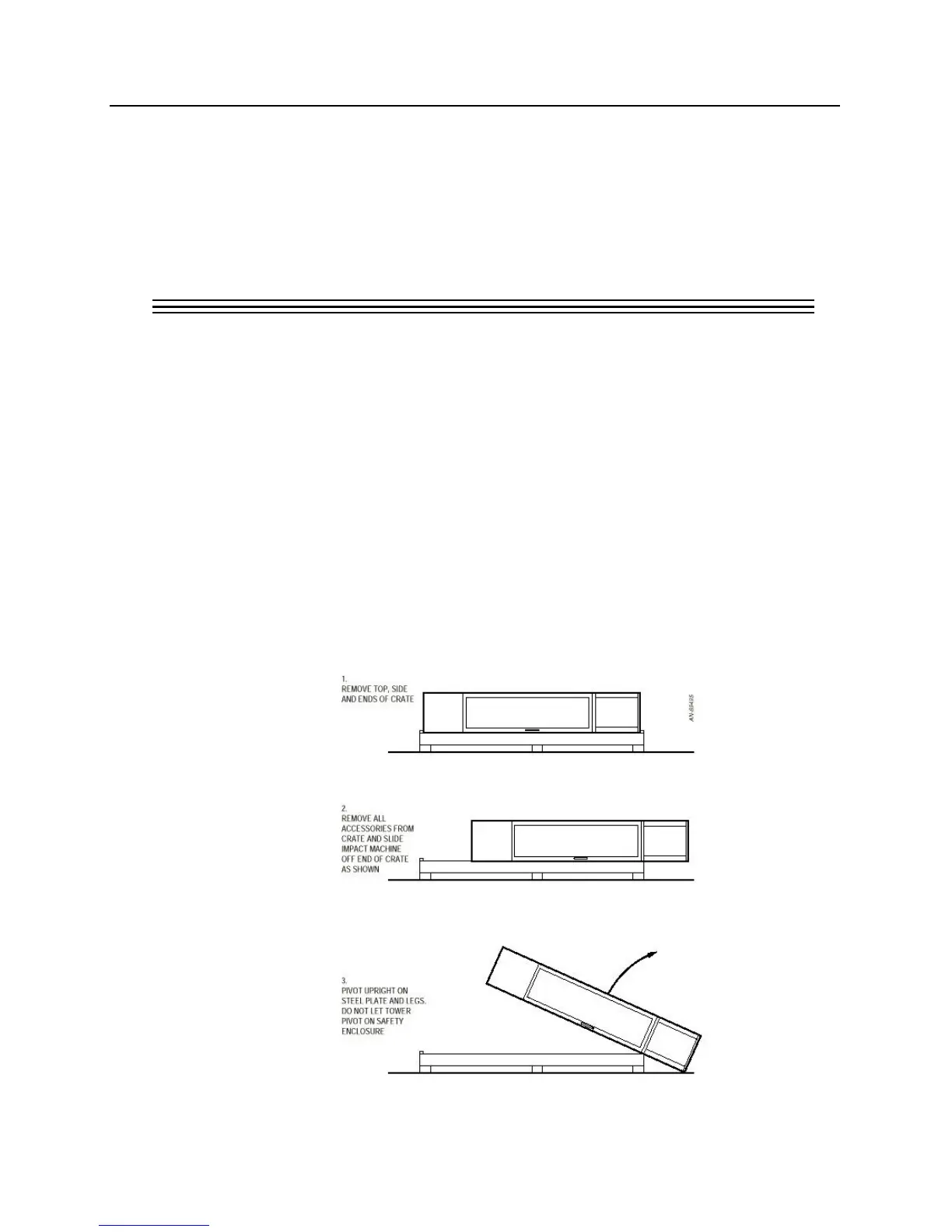

Figure 3-2. Uncrating
