Dynaudio 9S Owner's Manual

1716
Connecting loudspeakers
If your source bass management, you
can use the 9S’s LFE input alone in
LFE or SLAVE mode, depending on the
management system capabilities. Avoid
double processing if possible.
To connect loudspeakers
1. Connect the subwoofer (see
“Connecting a single subwoofer” on
page 15.
2. From the subwoofer SAT/SUB output
connect a XLR cable to the inputs of
the power amplier you use for your
speakers.
Multiple subwoofer connections
The 9S can be used stand-alone or
together with multiple subwoofer units.
Using multiple units may be helpful if the
listening room is quite large or has difcult
acoustic conditions. When using two or
more subwoofers, the rst one (designated
“Master”) controls the following subs
(designated “Slave”) via a subwoofer cable.

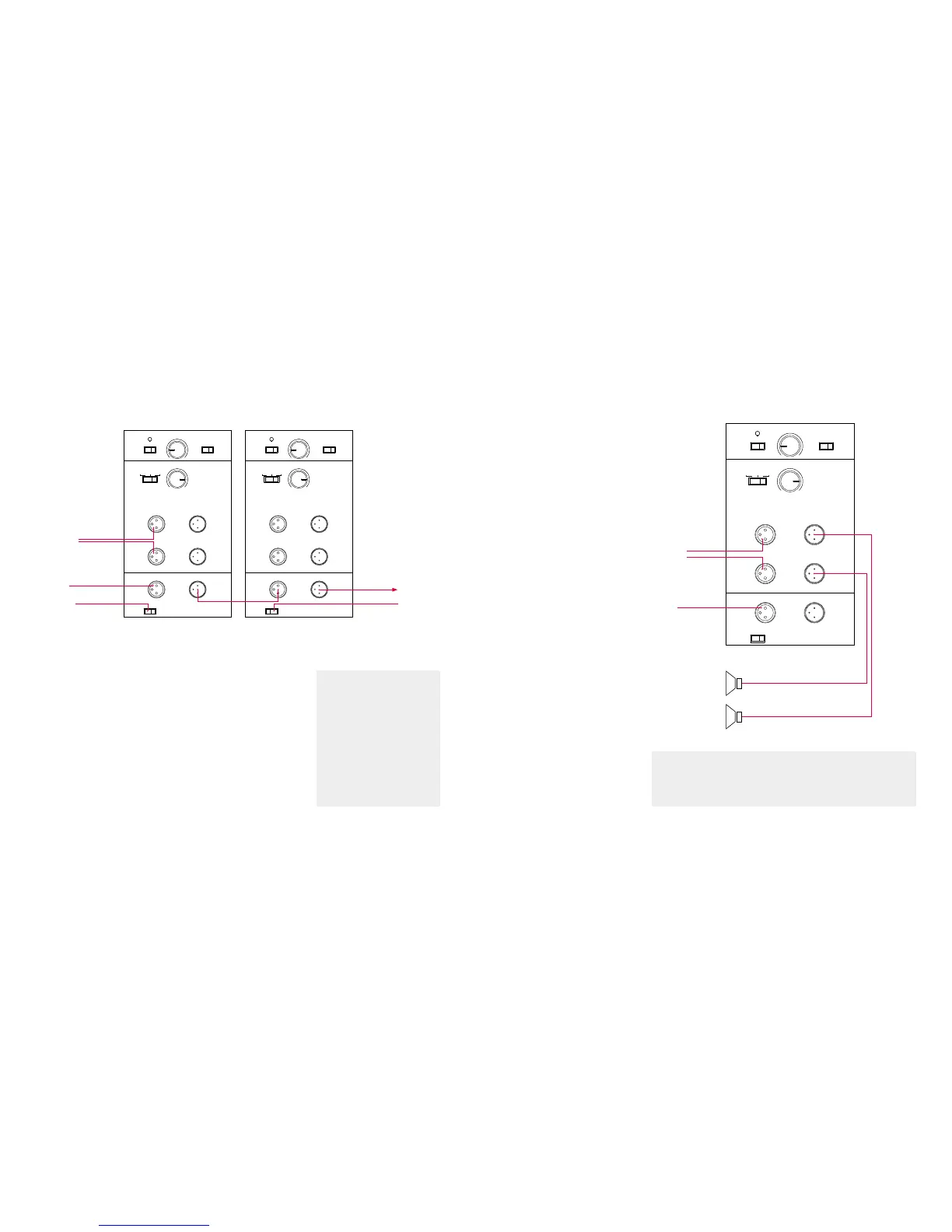

To connect multiple subwoofers:
1. Connect the rst subwoofer as
described before.
2. Set Mode switch of rst subwoofer
to LFE.
3. From the Slave output of the rst
subwoofer connect a XLR cable to
the LFE/Slave input of the following
subwoofer. This one now becomes
the slave.
4. Set the Mode switch of the second
subwoofer to Slave.
Further subwoofers can be connected
in the same way. Set the Mode switch
of all following subwoofers to Slave
respectively.
Notes
• When using multiple
subwoofers in a Master-Slave
setup, it is recommended that
the subwoofers are all the
same model.
• If you wish to use multiple
subwoofers with full individual
control, set the Input switch for
all to the LFE position. From the
source subwoofer output, use a
Y-connector.
Note
The signals connected to the inputs are provided at the Slave output for
connecting another subwoofer. See page 16 to learn more about connecting
multiple subwoofers.
ON AUTO
GAIN PHASEPOWER
SUB LowpassSAT Highpass
SAT/SUB Input SAT Output
LFE / Slave IN OUT
Min Max
50 Hz 150 Hz
0° 180°
LEFT
RIGHT
SUB I/O To Slave
LFE Slave
ON AUTO
GAIN PHASEPOWER
SUB LowpassSAT Highpass
SAT/SUB Input SAT Output
LFE / Slave IN OUT
Min Max
50Hz 150Hz
0° 180°
LEFT
RIGHT
SUB I/O To Slave
LFE Slave
60HzFlat 80Hz60HzFlat 80Hz
1. LFE
Sub (Slave)
1. Stereo
ON AUTO
GAIN PHASEPOWER
SUB LowpassSAT Highpass
SAT/SUB Input SAT Output
LFE / Slave IN OUT
Min Max
50Hz 150Hz
0° 180°
LEFT
RIGHT
SUB I/O To Slave
LFE Slave
60HzFlat 80Hz
1. LFE
2.
To power amplier or active speakers
1. Stereo
2. Mode 4. Mode
3.

Dynaudio 9S Specifications

General

System	Single driver, active 9, 5 in subwoofer
Analog inputs	1 x XLR LFE, 2 x XLR Stereo
Analog outputs	1 x XLR Slave Out, 2 x XLR SAT Out
XLR Pinout	1 = 0 / 2 = + / 3 = –
Input impedance – + branch	20 kOhm
Input impedance – - branch	10 kOhm
Frequency response (± 3 dB)	22 Hz – 175 Hz
Box principle	Sealed
Max. input voltage	10 VRMS
Auto ON/OFF	Yes
Amplifier power	300 W
AC power input	100-120 V/200-240 V 50/60 Hz
Standby power consumption	< 0.5 W
Maximum power consumption	350 W
Output impedance	100 Ohm (each branch)
Max SPL	106 dB
High pass filter	Flat / 60 / 80 Hz
Low pass filter	50 Hz -150 Hz
Phase adjustment	0/180 degrees
Woofer	24 cm MSP
Mode selector	LFE, Slave (Phase and volume controls are bypassed in slave mode)

Weight and Dimensions

Weight	10.5 kg / 23.1 lb
Dimensions (W x H x D)	266 x 276 x 320 mm / 10.5 x 10.9 x 12.6 in
Shipping box dimensions (W x H x D)	400 x 430 x 400 mm / 15.7 x 16.9 x 15.7 in
