Dynaudio LYD Series Product overviewPersonal Reference Monitor

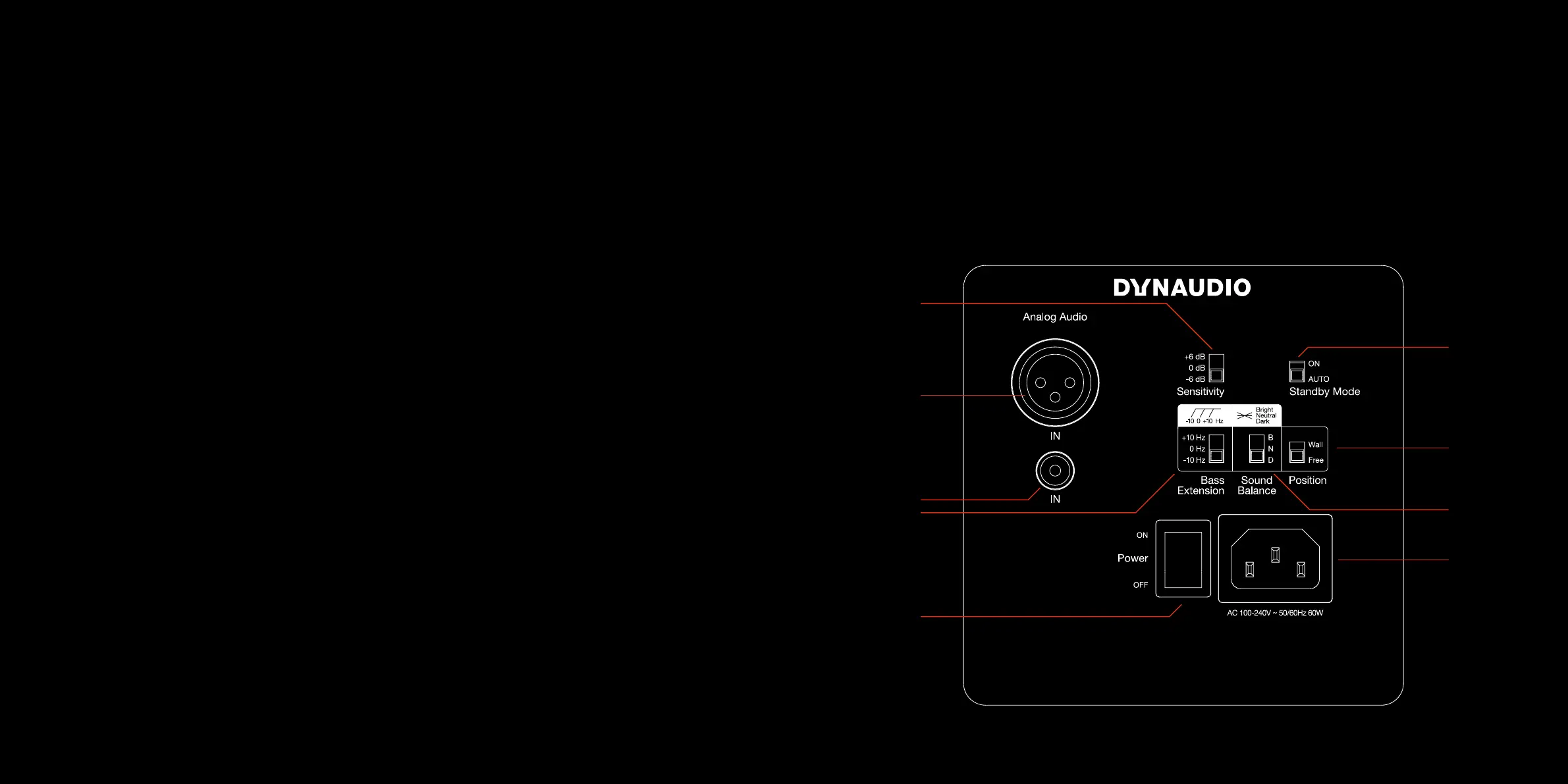

The backplate
Amplier
The LYD speaker range features an integrated Class-D amplier with analog inputs. All connections
and settings are available on the backplate of the amplier. Please do not remove the amplier yourself.
In case of service contact your Dynaudio dealer.
LYD
speaker
The transducers of your Dynaudio LYD speaker will achieve better
sound quality after breaking in. Especially after the rst hours of use,
you may notice a signicant advance in sound quality, and further
subtle improvements in subsequent hours of use.
1. Power ON/OFF switch
2. AC power Input (100-230V)
3. Balanced analog input (XLR)
4. Unbalanced analog input (RCA)
5. Standby Mode switch – Turns auto-standby ON/OFF
6. Sensitivity switch – Changes max. input voltage
7. Bass Extension switch – Changes cut-off frequency of the speaker
8. Sound Balance switch – Switches between three tilt lter settings
9. Position switch – Turns boundary effect lters ON/OFF
1
7
8
9
5
2
3
6
4
1110
