Dyness B3 - Stacking and Securing Battery Units

B3 ESS Unit User Manual
©Dyness reserves the copyright of this document.
20

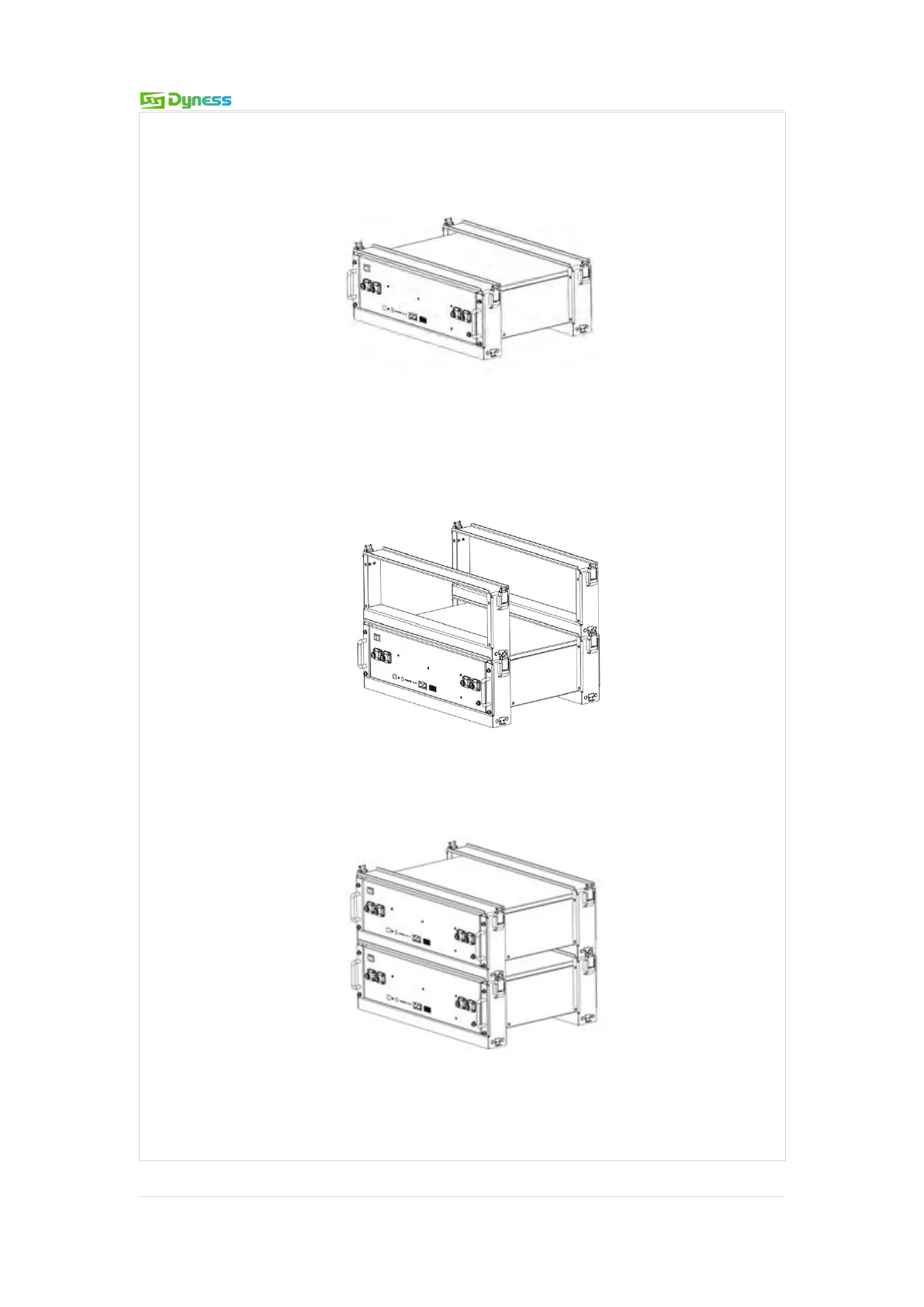

1.Place the B3 and brackets as shown in the figure3-5, and insert the B3 into the
brackets.Use 4 screws to fix the module on the front bracket.
Figure 3-5
2. Install another pair of bracket on the first one,fixed by buckles between them.
Figure 3-6
3. Insert the second one B3 into the brackets.
Figure 3-7
