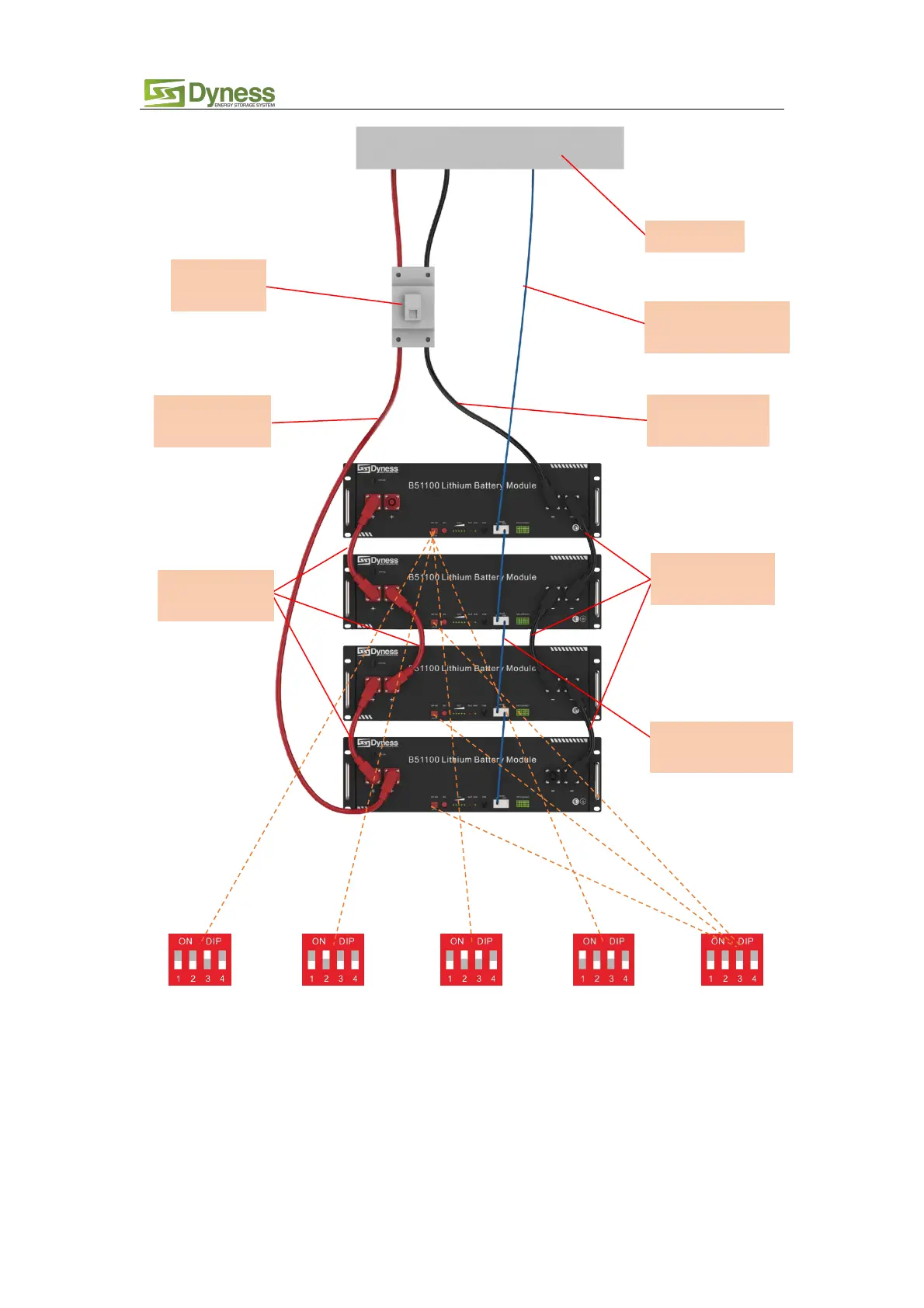

Dyness B51100 - System Wiring and Configuration; System Wiring Diagram

B51100 User Manual
18
Master Setting 1 Master Setting 2 Master Setting 3 Master Setting 4 Slave Setting 1
Figure3-4
Note:
1. For more ADD Settings，Reference 2.3.1 “DIP switch definition and description”
2. After the whole system connection, set the master DIP mode according to the inverter model
firstly, then start the battery.
Power cable-
negative
Power cable-
positive
Parallel cable-
positive
Parallel cable-
negative
Communication
cable-to inverter
Communication
parallel cable
Circuit
breaker
Inverter
