DL5.0C User Manual
©Dyness reserves the copyright of this document
Installation Preparation
1. Prepare equipment and tools for installation.
2. Check the DL5.0C unit and confirm that the ON/OFF switch is in the "OFF" state to
ensure the device is shut off.
Mechanical Installation

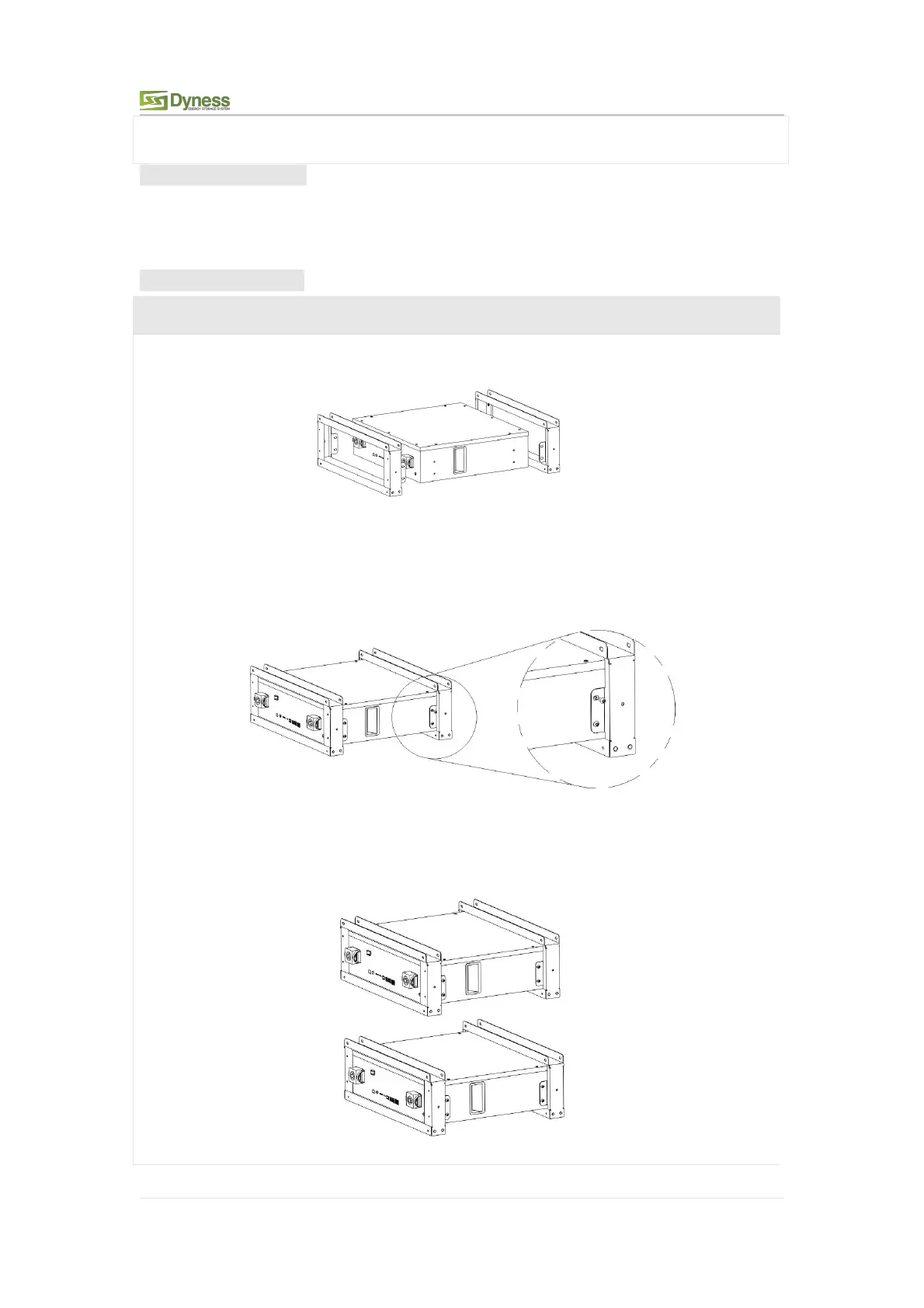

Flexible Brackets Installation(Up to six layers):
1. DL5.0C brackets The DL5.0C bracket is shown before installation as shown in
Figure3-3.
Figure 3-3
2. Place the DL5.0C and brackets as shown in the figure3-3, and insert the DL5.0C
into the brackets. Each bracket is connected to the module by four screws, two
screws on one side. As shown in Figure3-4.
Figure 3-4
3. Install another module as the same method,don’t tighten the screw first, put it on
top of the first battery,as shown in Figure3-5.
Figure 3-5
