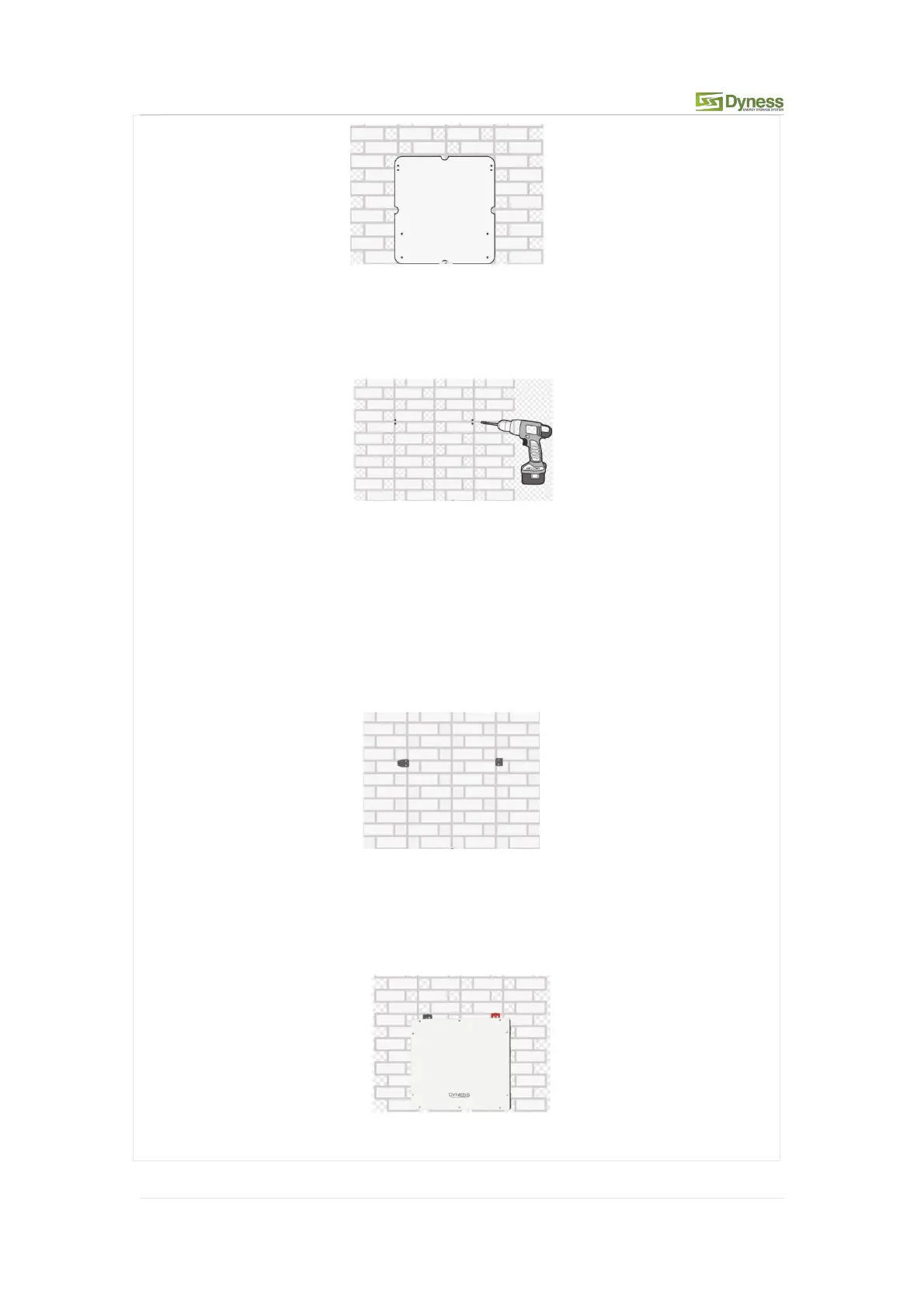

Figure 3-11
2
．
The bottom of the board must be in horizontal touch with the ground while
marking the holes.
Figure 3-12
3
．
According to the marked position, use an electric drill to drill 4 holes with a
diameter of 10mm on the wall for installing M6 expansion bolts. The depth of the holes
should be greater than 70mm.
4
．
Fixing the expansion bolt M6 into the bottom of the hole on the wall.
5．Use the M6 bolt to fixing the Support bracket to the wall and control the torque at
6NM.
Figure 3-13
6．Carry the battery box to the installation site, and place it about 15mm away from the
wall surface, fixing the Support bracket and the cabinet.
Figure 3-14
