Dynojet Power Commander III - Power Commander III Wiring and Installation; Connecting Wire Tap and Ground Wire; Mounting the Power Commander Unit

54

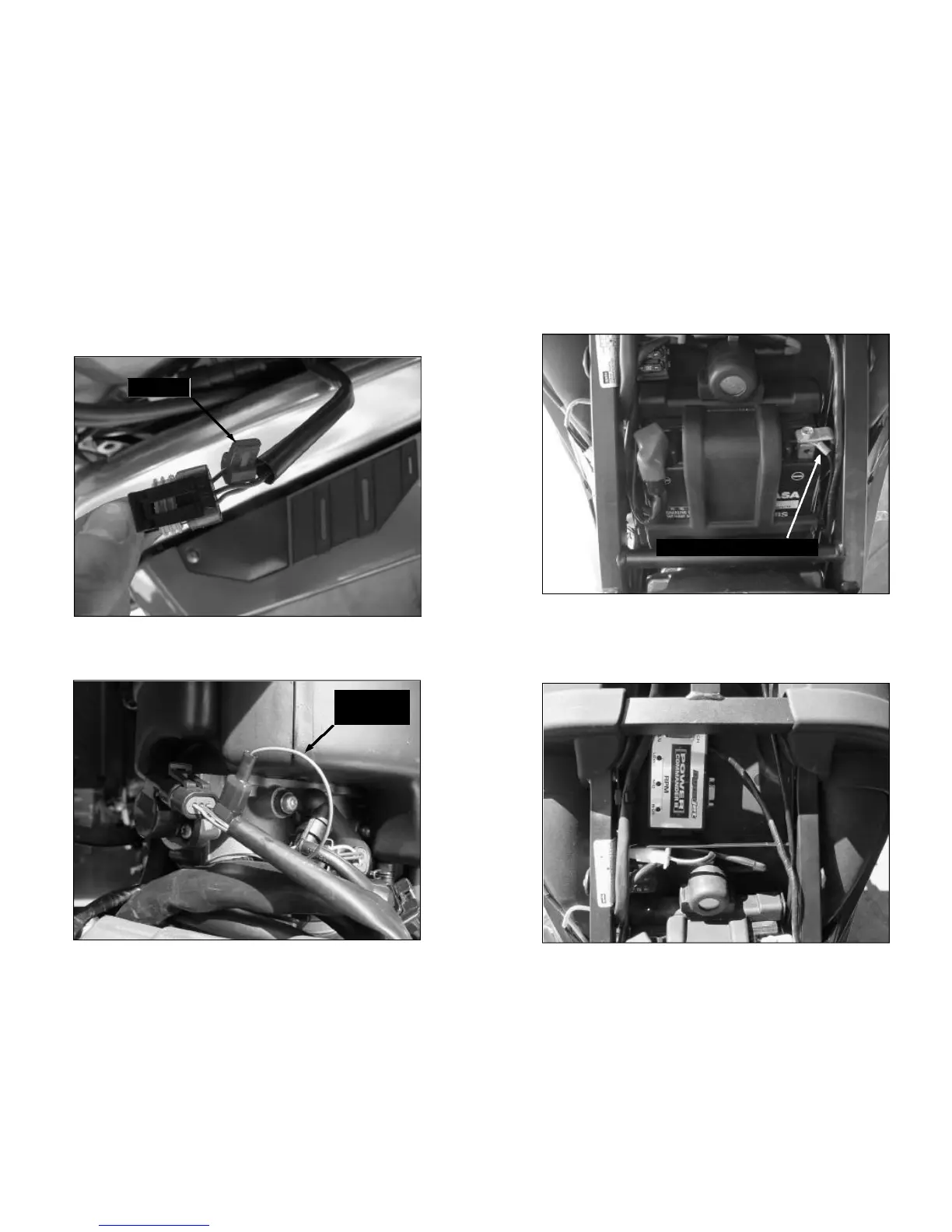

Fig.E
Fig.D
6 Attach the supplied wire tap to the brown wire with a
white tracer. It is recommended to use dialectric grease
before crimping the wire tap down.
7 Attach the grey wire from the PCIII to the wire tap. It is
recommended to use dialectric grease at this connection.
Wire tap
Grey wire
from PCIII
Fig.F
8 Attach the ground wire from the PCIII to the negative
side of the battery.
Ground wire from PCIII
Fig.G
9 Install the PCIII under the tool kit. If you do not use
the tool kit use the supplied velcro to attach the PCIII.
(Fig. G).
