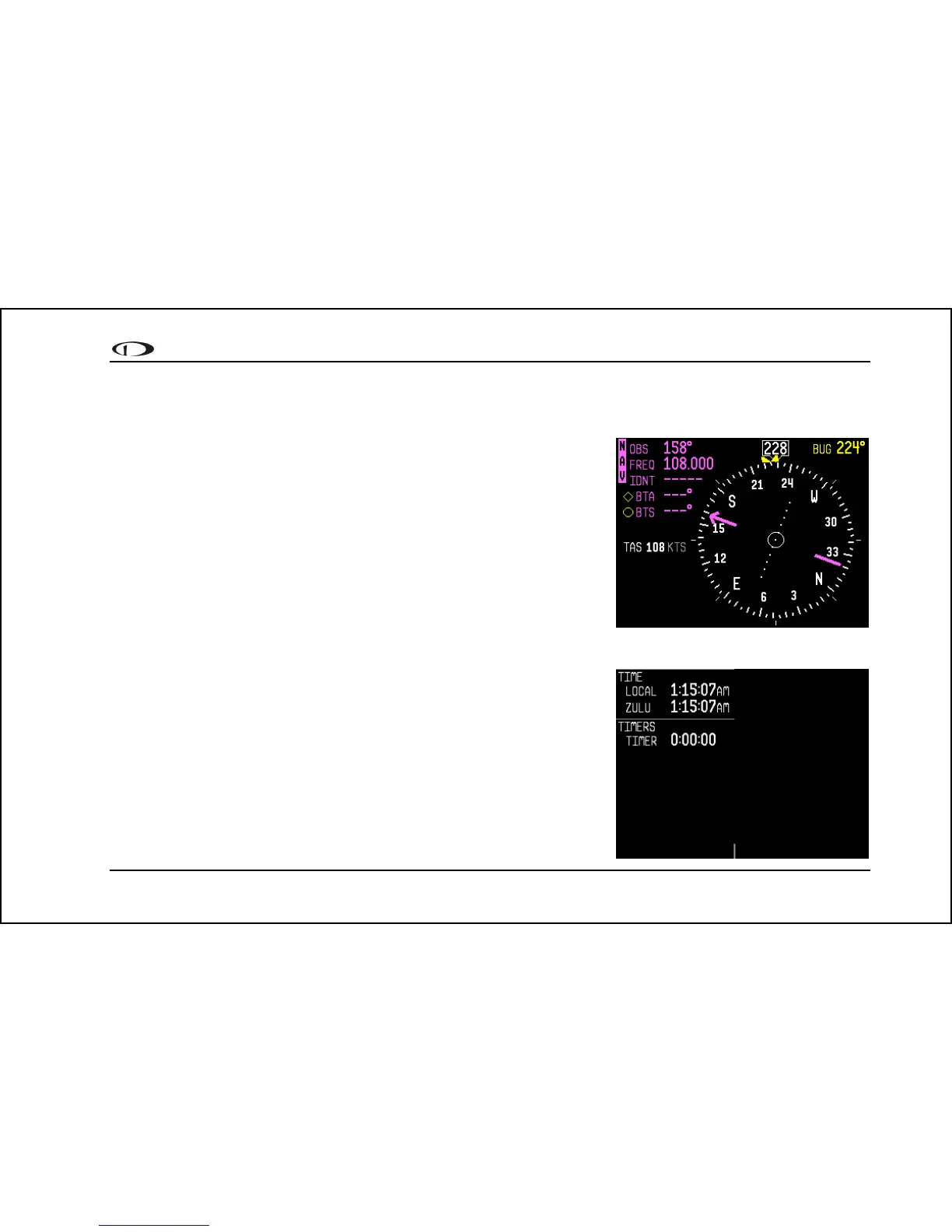

EFIS-D10A Pilot’s User Guide 4-9
HSI Page
Available in 1/2 format
Your EFIS-D10A can function as a Horizontal Situation Indicator (HSI) when
it is receiving data from Dynon’s HS34 (connected to a nav radio), an external
GPS, or Garmin SL30 Nav radio. The HSI information is overlaid on a
directional gyro (DG) representation of the EFIS's stabilized magnetic heading
information. If no GPS or nav radio source is present in the system, the HSI
page will still display the DG, but without any additional navigation
information.
For detailed information on using the HSI page, please see the HSI Operation
section on page 6-1.
Times/Auxiliary Page
Available in 1/2 | 1/2 format
This page displays times information on the left half of the screen and – if a
Dynon EMS-based product is connected per the EFIS-D10A Installation
Guide – user-customizable auxiliary information on the right half of the
screen. For information about the auxiliary information half of the page and
engine-related timers, please see your EMS-based product’s Pilot’s User
Guide.
The times half is divided into two sections: TIME, and TIMERS. The TIME
section shows the present time (both local and Zulu) and can be displayed in
