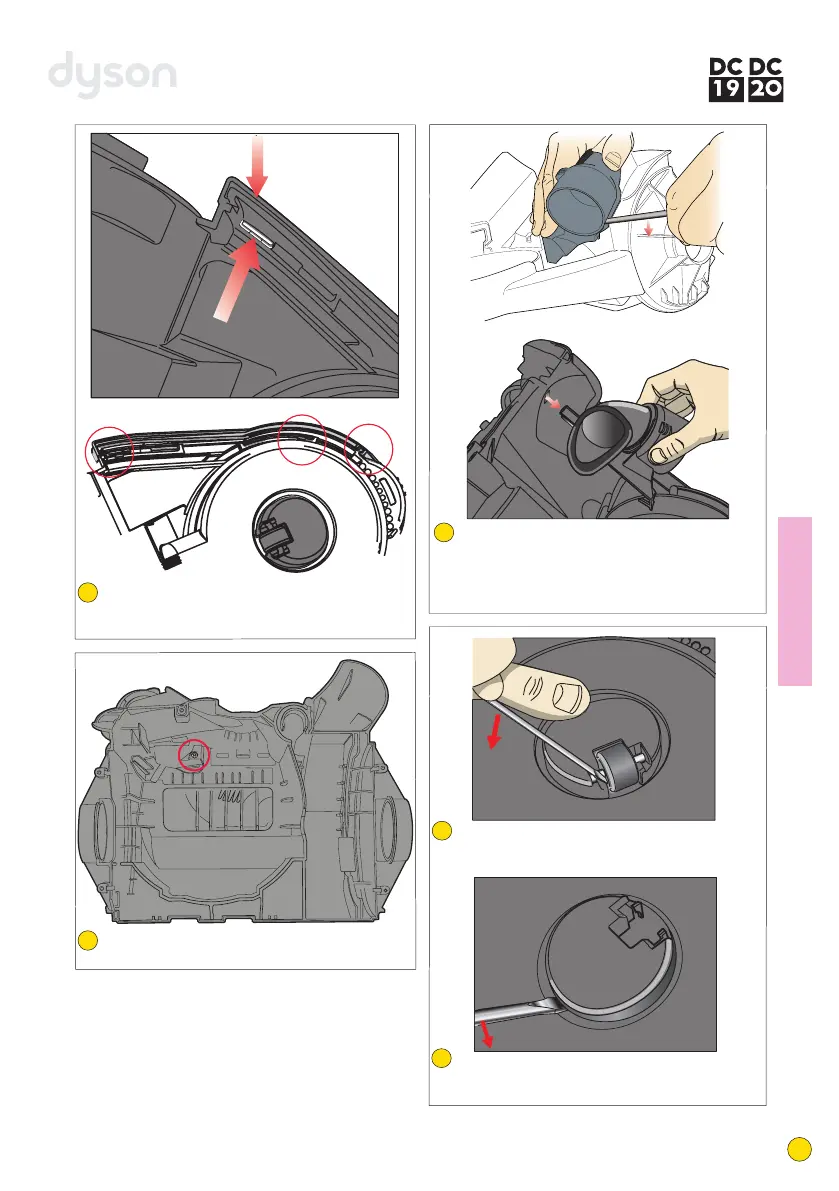

Prise the castor wheel and axle out of the
castor body using a thin, flat bladed screwdriver.
To refit, clip into the castor body.
1
3
2
Prise the castor body away from the LMC using
a large flat bladed screwdriver.
To refit, push firmly onto the castor spigot.
To remove the bumper strip, unclip the retainers and
forcefully push the bumper strip away from the LMC.
To replace, snap clips back in sequence shown.
To replace the cyclone inlet assembly, undo the
screw from the inside of the LMC assembly.
Fitting notes
18
21
22
19
Prise a thin, flat bladed screwdriver under the
cyclone inlet. Then slide the inlet off the LMC
assembly.
To refit, slide onto the LMC assembly and refit
the screw.
