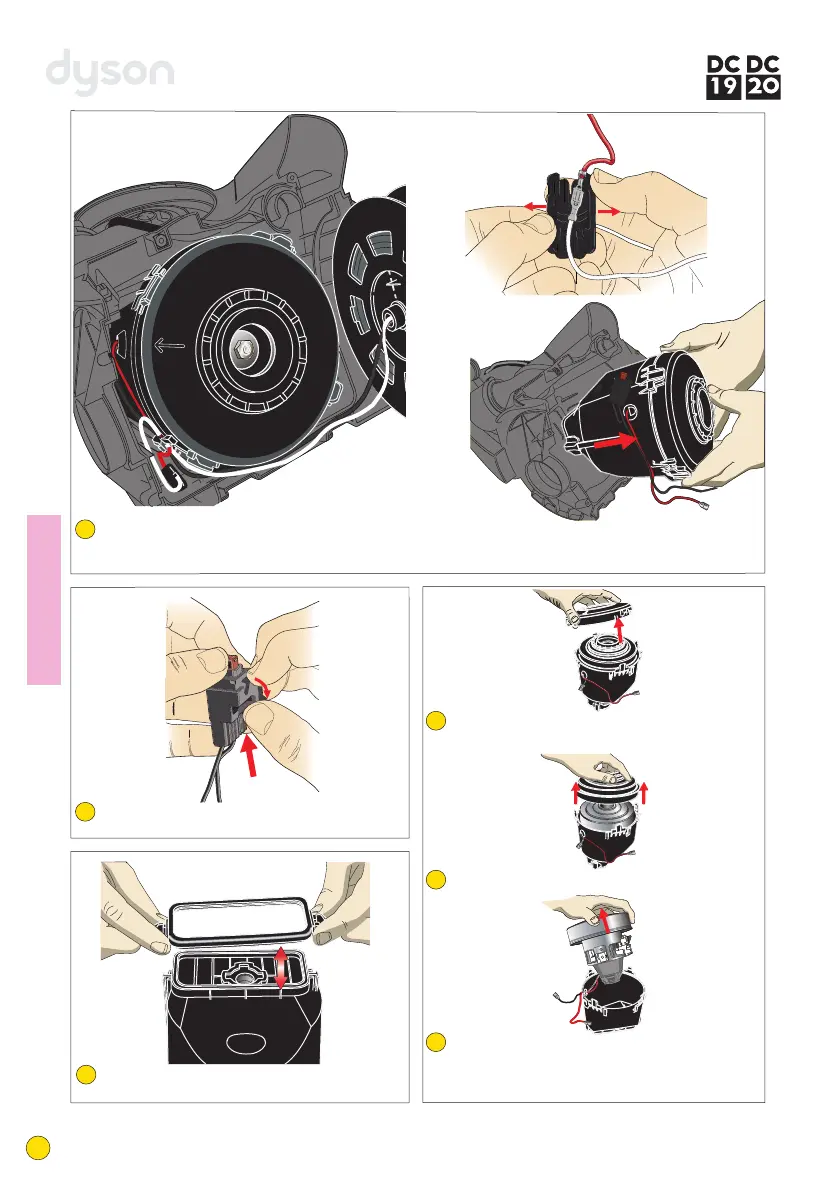

Remove the cable rewind from the lower motor cover (LMC) assembly. Unclip the fly leads from the side of the
motor bucket. Unclip the connector insulator, and the wires within from each other. Pull the motor bucket out
of the LMC assembly.
Release the switch from the switch holder. Unclip
both wires from the switch.
Firmly release the four retaining clips on the side of
the motor bucket. Lift off the motor bucket top.
Lift the fancase seal off the base of the motor.
Lift the motor, motor plate and mount out of the
bucket. Unclip the wiring harness from the motor.
Release the wiring harness from the bucket if
necessary.
The motor bucket mount can be replaced if
necessary as shown.
Fitting notes
12
14
15
16
17
service manual
13
7
