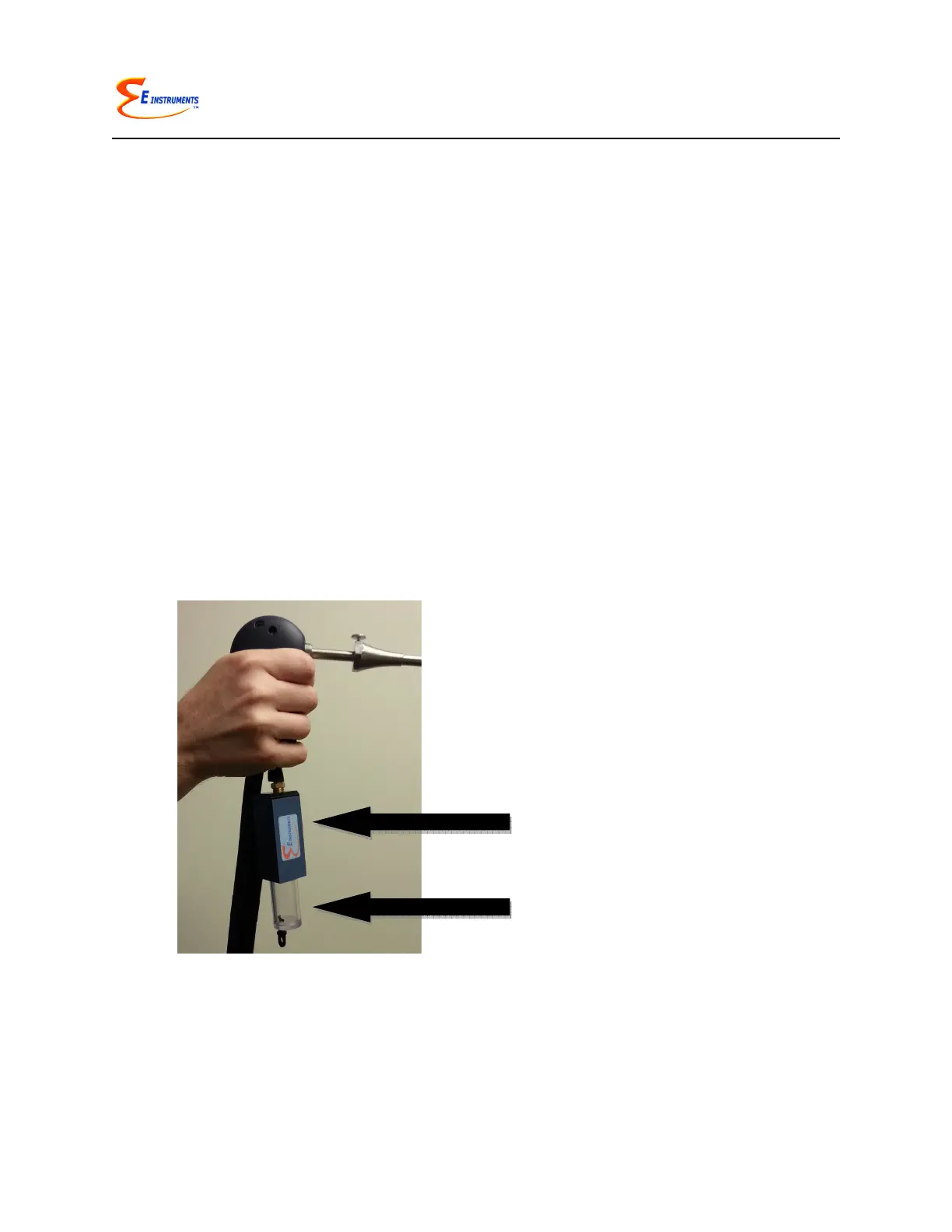

E8500 Instruction & Operations Manual
version 1.010
Page 12 of 45
A brief explanation of the instrument’s buttons is as follows:
Controls calibration settings and zeroing of the analyzer’s sensors.
Controls all customization parameters (such as measurement units)
for the analyzer
Displays the analyzer’s currently measured data in either of two fonts:
A. Small fonts (all data displayed simultaneously plus range indicated,
battery condition and time)
B. Large fonts (four data parameters displayed simultaneously)
Turns analyzer and conditioning system on and off
Controls operation of the analyzer’s internal data storage
Executes print commands for the analyzer’s remote printer
Used with the direction keys to change a setting or navigate the
menus
Moves the cursor up or increments the entry marked by the cursor
Moves the cursor down or decrements the entry marked by the cursor
Moves the cursor to the left
Moves the cursor to the right
NOTE:
The orientation of the display (the display’s lettering) rotates automatically by 90
degrees depending on the analyzer’s position so that the words & numbers on the
display can be read properly. The analyzer’s position also changes the orientation of the
arrows so that they always conform to the direction pointed.
