E-Mon D-Mon Class 1000 User Manual

CLASS 1000 METER
5 62-0388-01
1.1. Internal Electronic Assemblies

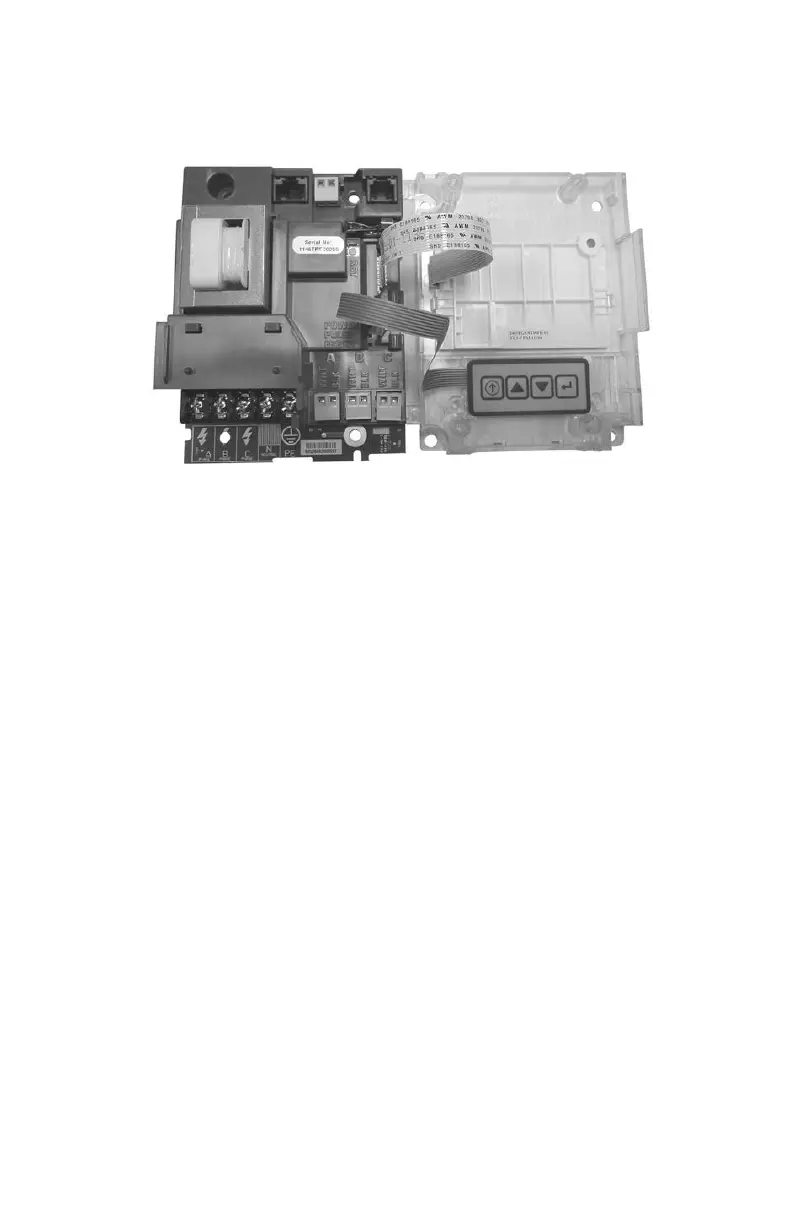

Fig. 1. Main Power Supply Board & Display Board
The unit is comprised of a Main Power Board and Display and Keyboard. All
component cards are mounted inside a UL Type 1 (standard) or NEMA 4X (optional)
enclosure.
NOTE: Units are supplied in a UL Type 1 metal enclosure suitable for indoor applica-
tions only. Units supplied in the optional NEMA 4X fiberglass enclosure are
suitable for either indoor or outdoor applications, within the defined specifica-
tions. Refer to Section 12.0 for a definition of suitable environmental condi-
tions for indoor and outdoor units.
M33177
MAIN POWER
BOARD
DISPLAY AND
KEYBOARD

E-Mon D-Mon Class 1000 Specifications

General

Brand	E-Mon
Model	D-Mon Class 1000
Category	Measuring Instruments
Language	English
