14

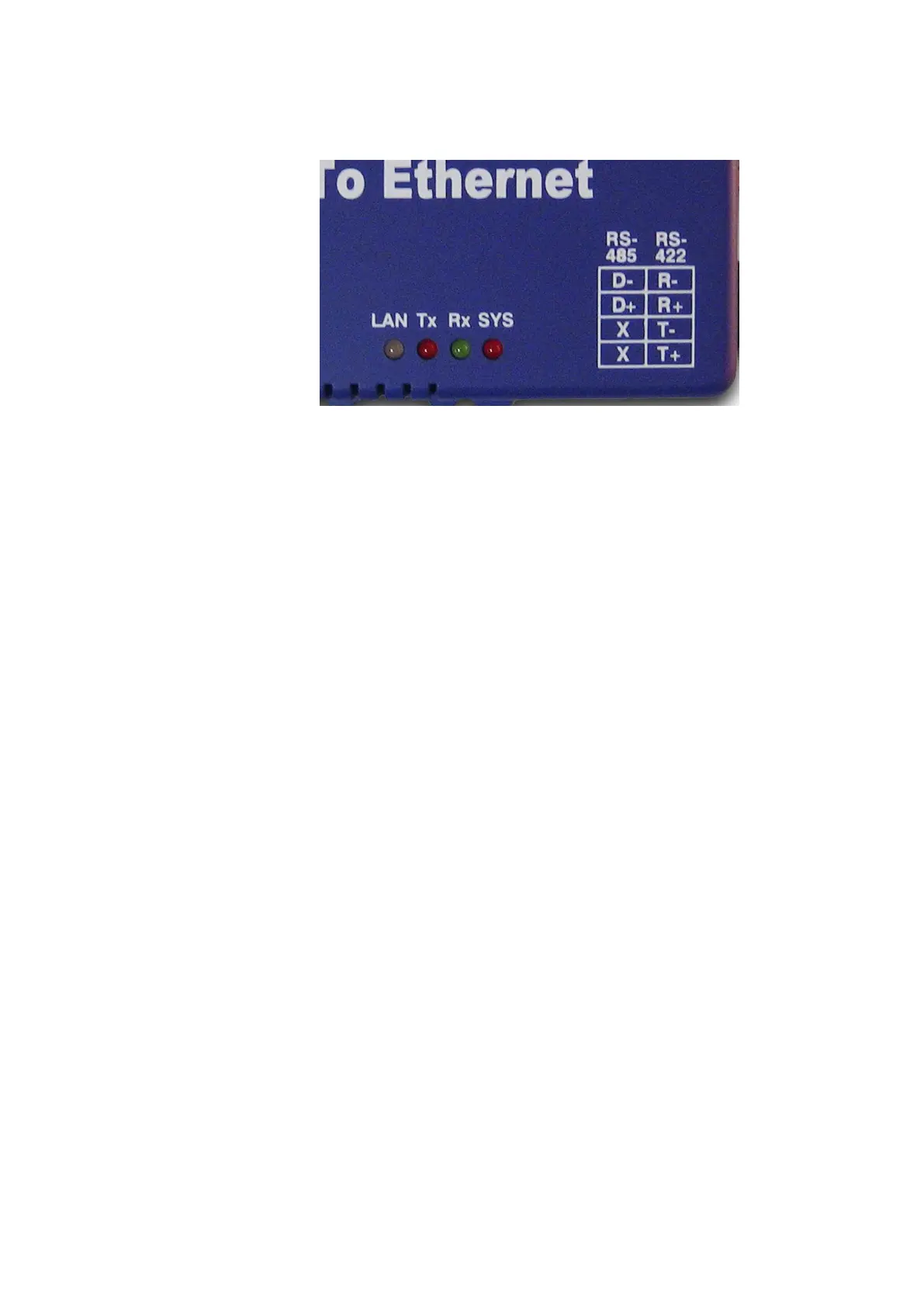

LED Indicators
SYS “Red LED”: Power indicated
(When power on, LED will flash each time in one second.)
Rx “Green LED”: Network signal receiving indicated
(When receive any signal form network LED will flash.)
Tx “Red LED”: Network signal transforming indicated
(When transmit any signal to network LED will flash.)
LAN “LED”: On-line indicated
(When converter link to LAN then the LED will keep on.)
100M- Green LED、10M- Red LED
