Pin outs and Cable Wiring
□
□
□

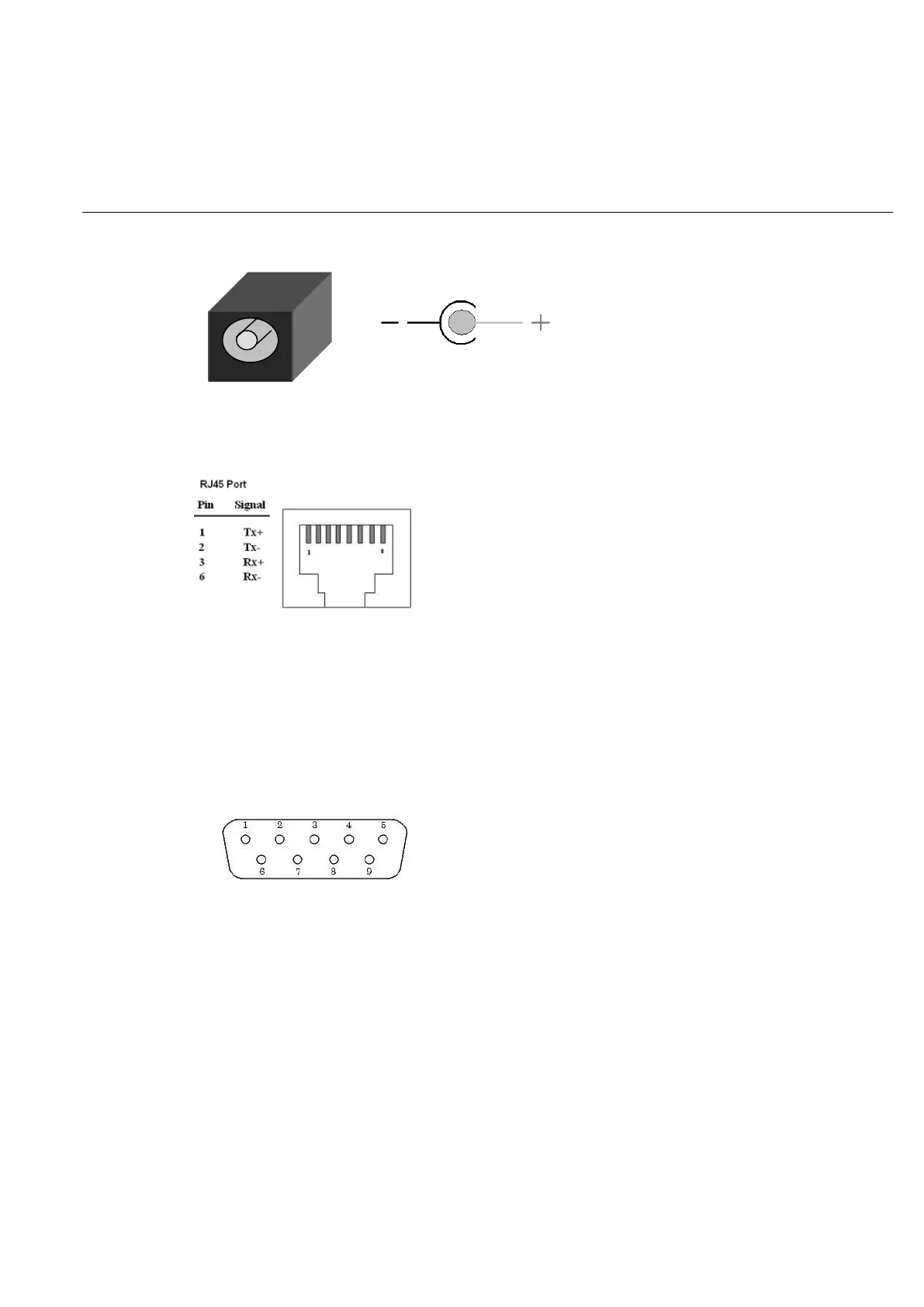

DC Power outlet
□
□
□
RJ-45 Pin Assignment
□
□
□
RS-232 Pin Assignment
The pin assignment scheme for 9-pin male connector on DTE is given
below.
PIN 1 : DCD PIN 2 : RXD PIN 3 : TXD PIN 4 : DTR
PIN 5 : GND PIN 6 : DSR PIN 7 : RTS PIN 8 : CTS
PIN 9 : X
