E-Net E-P132-X - Converter Terminator and Reset Button Functions

15
Terminator & Reset button
Resent Button
Press the button then turn on the power and waiting for 3 seconds.
Converter will reset to factory default.
Terminator
There terminator resistor built in. If switch 1 & 2 are set in “ON” position, 120
Ohm resistor connected between the signals.

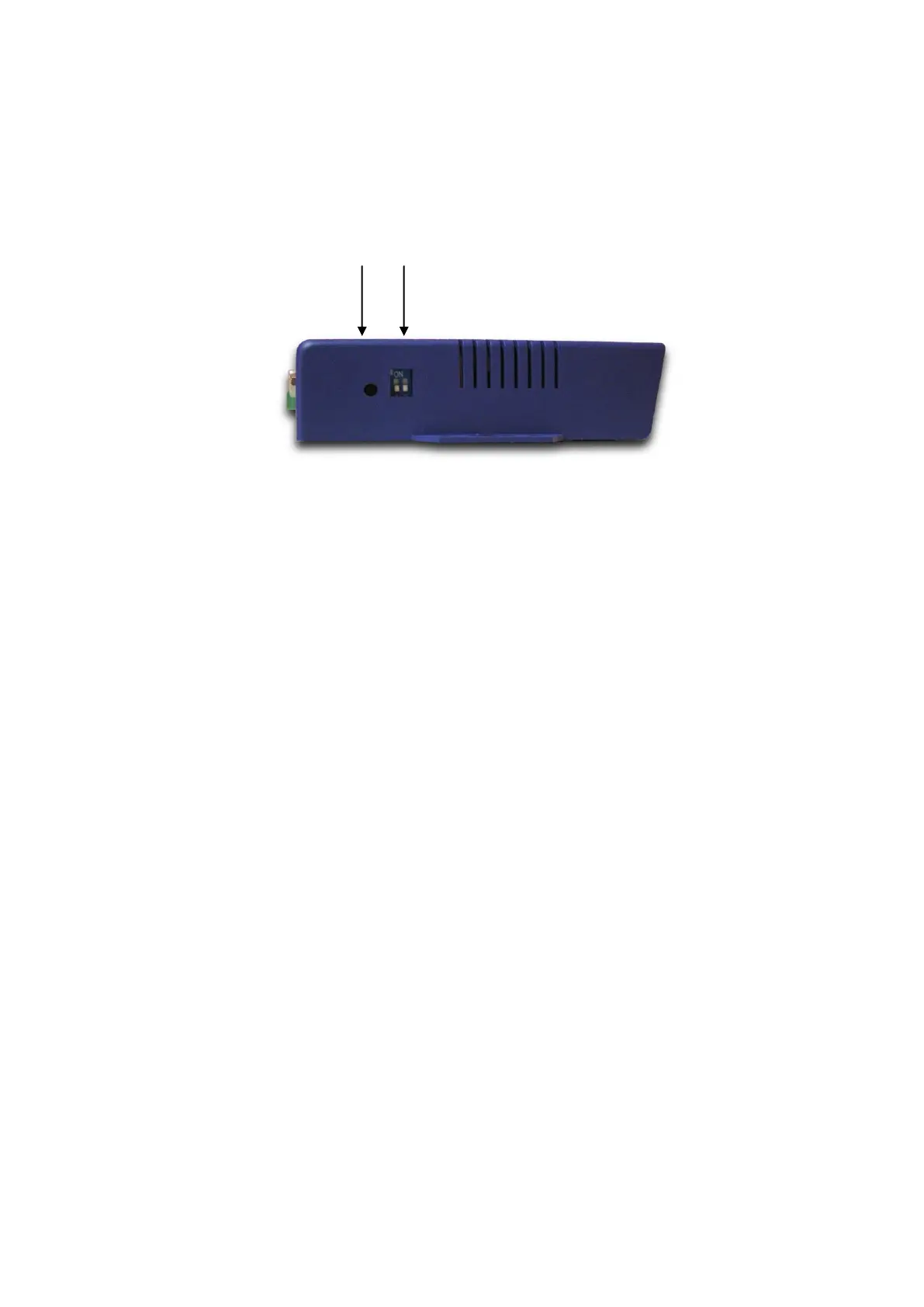

Reset Button
Terminator
