E-Net E-P132-X - RS-422 and RS-485 Connection Wiring

17

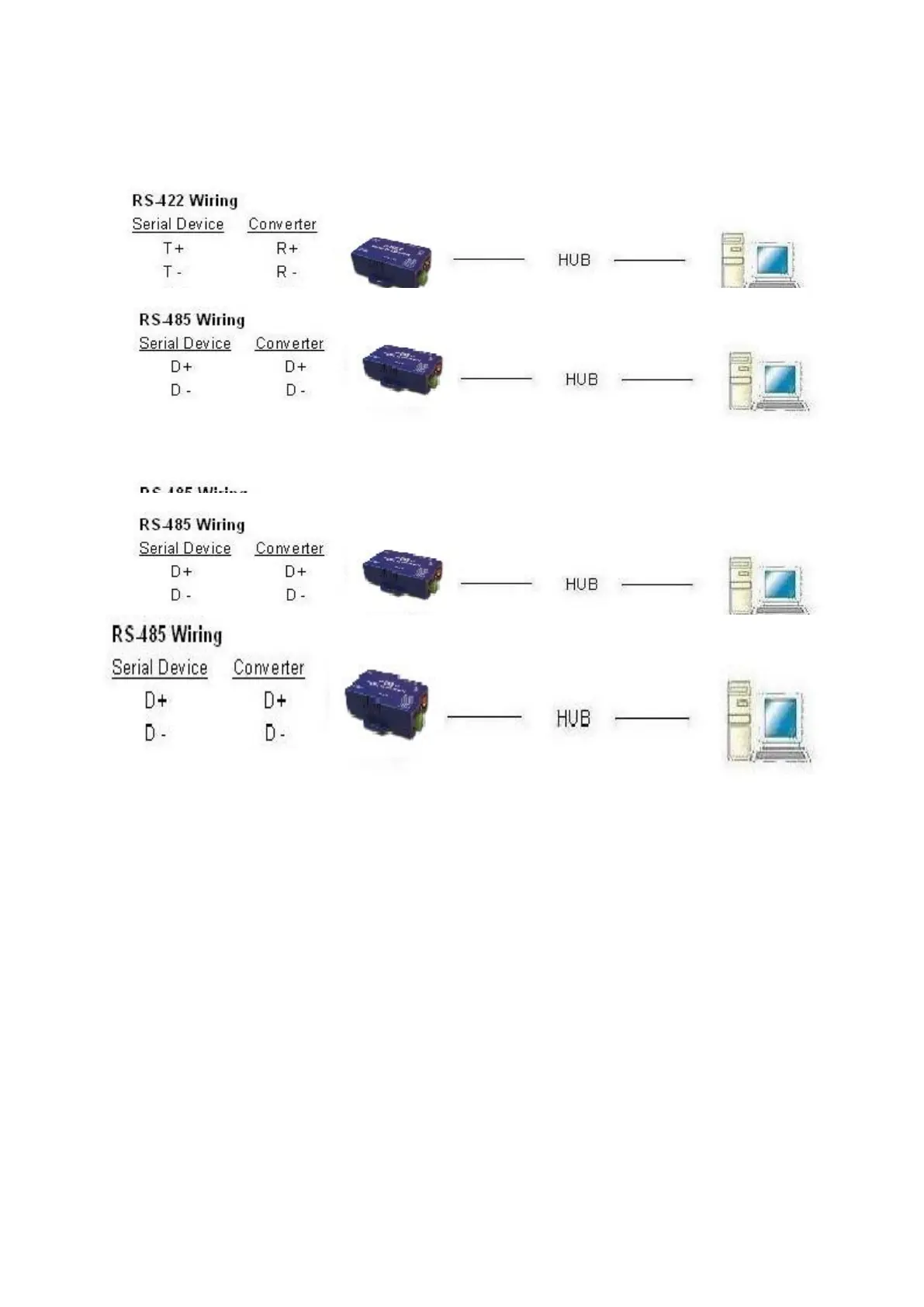

RS-422 / RS-485 Wiring Architecture
When you finish the steps mentioned above and LED indicators as shown,
the converter installed correctly. You can use the Setup Tool “ETM.exe” to
setup IP Address.
For setup proceed the advanced parameters, please use web browser (IE or
Netscape) to continue the detailed settings.
