DCBS User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Diagnostic and Charge 18/24

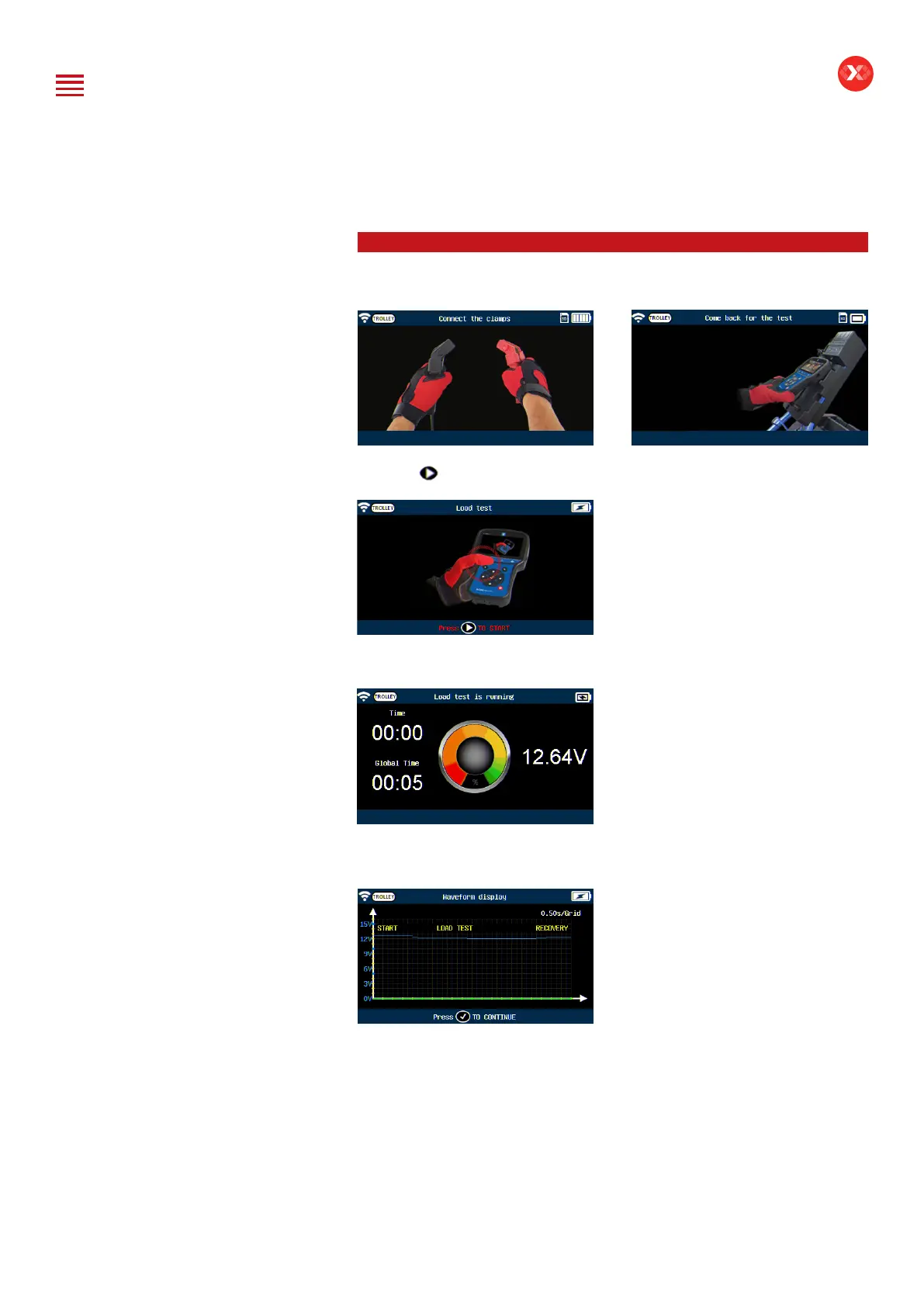

EDM (ENHANCED DIAGNOSTIC MODE) ////////
If the clamps are not connected, the tool will ask to connect the clamps.
Remote needs to be on the docking station to Start.
Press the Icon to start the Load Test.
The Load Test can take up to 45 seconds.
Once the Load Test is done, a graph will display the waveform of
the Voltage Drop and Recovery.
