EAE EE62C-35T-E - Page 16

Installation, Operation and Parts Manual
EE62C-35T-E / EE62C-42T-E
16

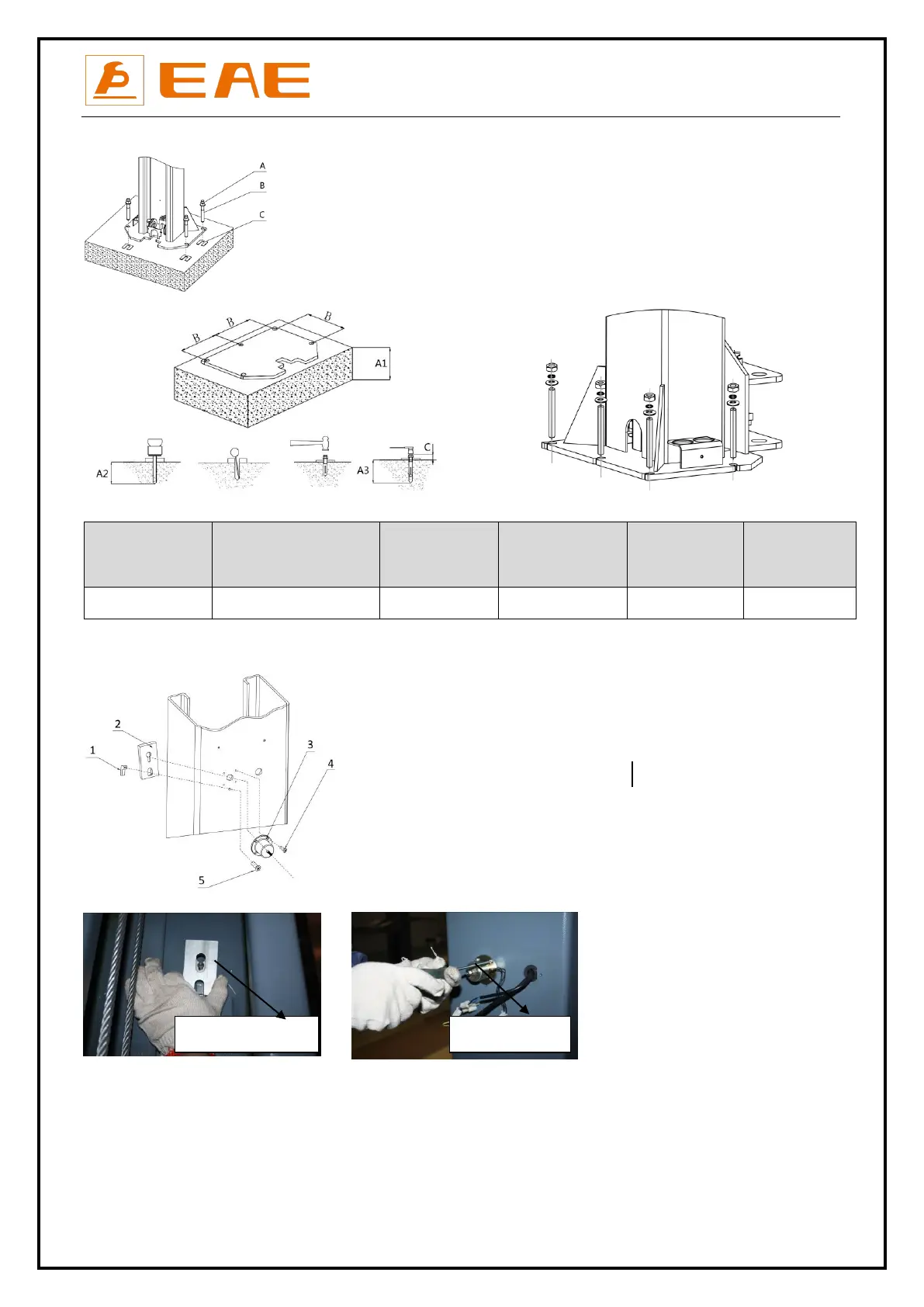

Anchoring bolt
A1
(foundation thickness )
A2
(drilling depth)
A3
(anchoring depth)
B
C
M18x160
≥200mm
130mm
105mm
240mm
≤55mm
Step 8: Install the mechanical locking unit.
Fix four safety locking plates and electromagnets with two of them on each post.
A.
Nut
B.
Expansion anchoring bolt
C.
Equalizing plate
1.Orientation block
2.Safety locking plate
3.Electromagnet
4.Cross socket cap head screw M6*12
5.Cross socket cap head screw M6*16
Safety locking plates
Electromagnet
