Eagle 12 - Dgps Receiver

47
NDC-1 TO ACCUMAP 12
OTHER
DEVICE
POWER
(IF NEEDED)
SHIELD WIRE
GROUND WIRES
WHITE WIRE
RED WIRE
TO +12V
OTHER
DEVICE’S
RECEIVE
DATA WIRE
ACCUMAP’S
WIRES
OTHER DEVICE’S
WIRES

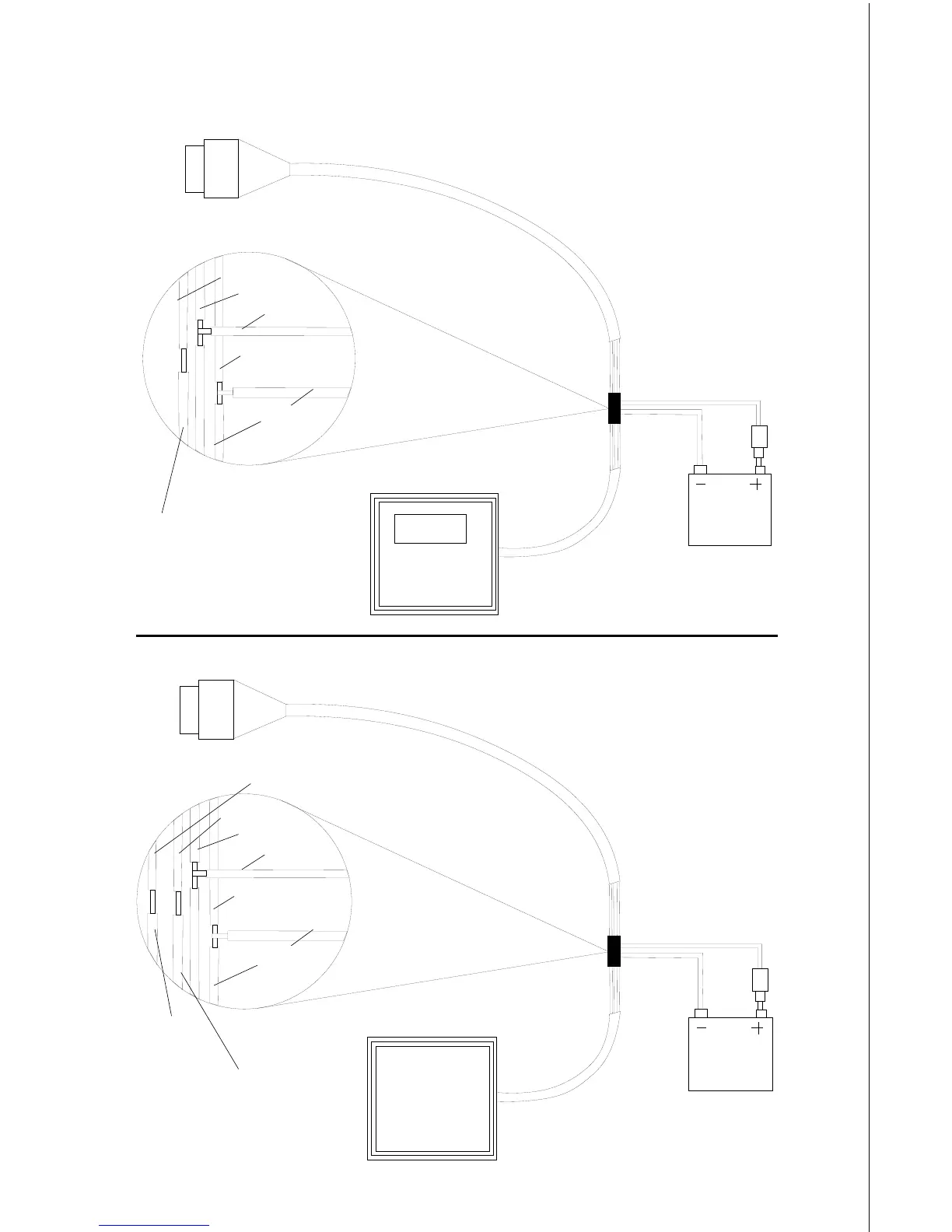

ACCUMAP 12
TRANSMITTING NMEA DATA
TO ANOTHER DEVICE
NDC-1 TO ACCUMAP 12
DGPS
RECEIVER
POWER
(IF NEEDED)
SHIELD WIRE
GROUND WIRES
WHITE WIRE
RED WIRE
TO +12V
DGPS
RECEIVER’S
RECEIVE
DATA WIRE
(IF NEEDED)
ACCUMAP’S
WIRES
ACCUMAP 12
RECEIVING DATA FROM
A DGPS RECEIVER
GREEN WIRE
DGPS
RECEIVER’S
TRANSMIT
DATA WIRE
